Instruction Manual
USB to S-Video/Composite Video Capture Cable
with Audio
SVID2USB22

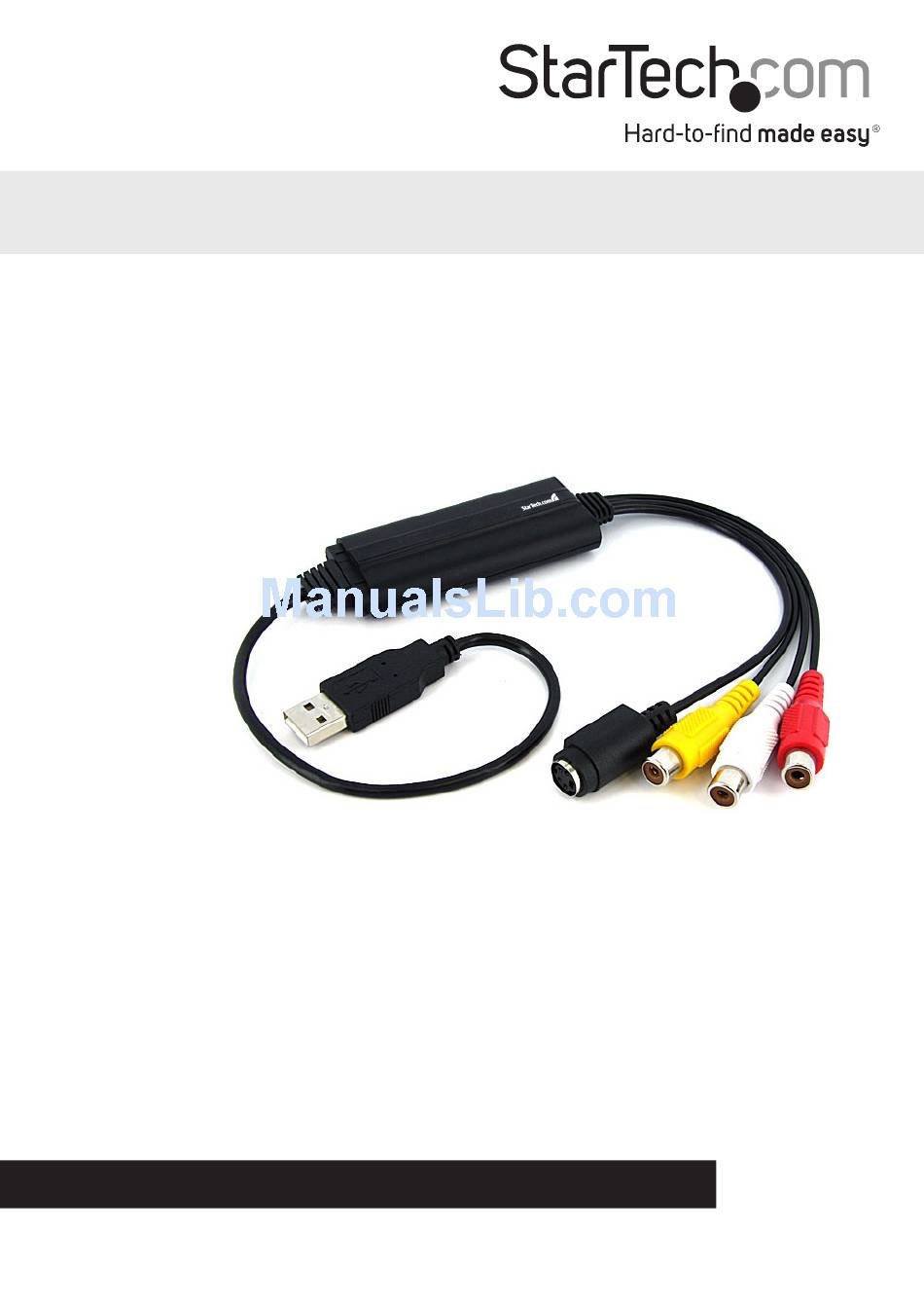

*actual product may vary from photo
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/31/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com SVID2USB22
Summary of Contents for StarTech.com SVID2USB22
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/31/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................2 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 4: Introduction
Introduction The StarTech.com SVID2USB22 USB 2.0 S-Video/Composite video Capture Cable lets you connect devices that output S-Video or Composite video to a computer, through an available USB 2.0 port. The cable also features two channel RCA stereo audio inputs, that let you capture the audio that accompanies the S-Video or Composite video signal. -
Page 5: Installation
Installation Driver Installation 1. Please insert the included Driver CD into the CD-ROM Drive. 2. At the Windows desktop, click the Start button, then “Run”. If this option is not available from the Start menu, press and hold the Windows key ( ) on the keyboard and press “R”. -
Page 6: Verifying Installation
6. Once the computer has booted into Windows, plug the SVID2USB22 adapter cable into an available USB2.0 port. 7. Windows should automatically detect new hardware and begin to load the drivers. 8. If a Windows Security dialog window appears, click the “Install this driver software anyway”... - Page 7 Software Installation (Optional) To install Ulead VideoStudio for use as video capture and editing software, follow ® ® these installation steps. If other video capture/editing software is to be used, then this is not necessary. 1. Place the Ulead Video Studio SE CD into a CD-ROM drive and setup should launch automatically.
-
Page 8: Specifications
Specifications Host Interface USB 2.0 1 x USB type A male 1 x RCA composite (yellow) female Connectors 2 x RCA stereo audio (red/white) female 1 x S-Video female (black) female LEDs 1 x Power Supported Video Systems NTSC, PAL, SECAM Maximum Video Resolution 720x480 (NTSC), 720x576 (PAL) Supported Video Encoding... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
