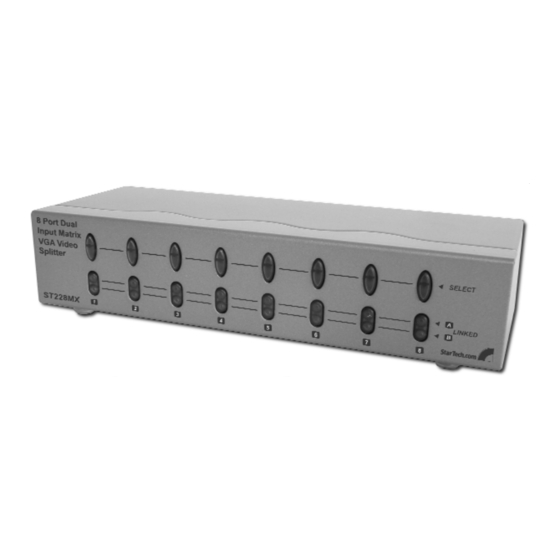

- Page 1 MATRIX SPLITTER Dual Input VGA Matrix Video Splitter ST222MX ST224MX ST228MX Instruction Guide * Actual product may vary from photo * ST228MX shown The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction ............2 Installation . -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com Dual Input VGA Matrix Video Splitter for your desktop computer or workstation. The ST222MX, ST224MX and ST228MX offer the highest quality video on multiple monitor hookups. The Matrix Video Splitter allows you to connect two, four or eight monitors to two or more computers and switch the video signals to any desired monitor. -
Page 5: Installation
Installation 1. Turn off the power to the computers and monitors. 2. Connect a HD-15 video extension cable between the VGA cards of the computers and the “Video In” ports on the back of the Matrix Video splitter. 3. Connect the HD-15 video extension cables from the monitors and plug them into the “Video Out 1”... -
Page 6: Technical Specifications
Technical Specifications Max. Resolution 1920 x 1440 (60 Mhz) Pixel Frequency 250 MHz Cable Distance 65m (213”) Maximum (Device to Monitor) Signal Type VGA, SVGA, XGA, Multisync Power Adapter (Min.) AC 7.5V (800mA) Housing Metal Standards DVI 1.0 by DDWG Safety Standards FCC and CE Mark Input/Output Signal Specifications... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 Revised: December 01, 2003...
