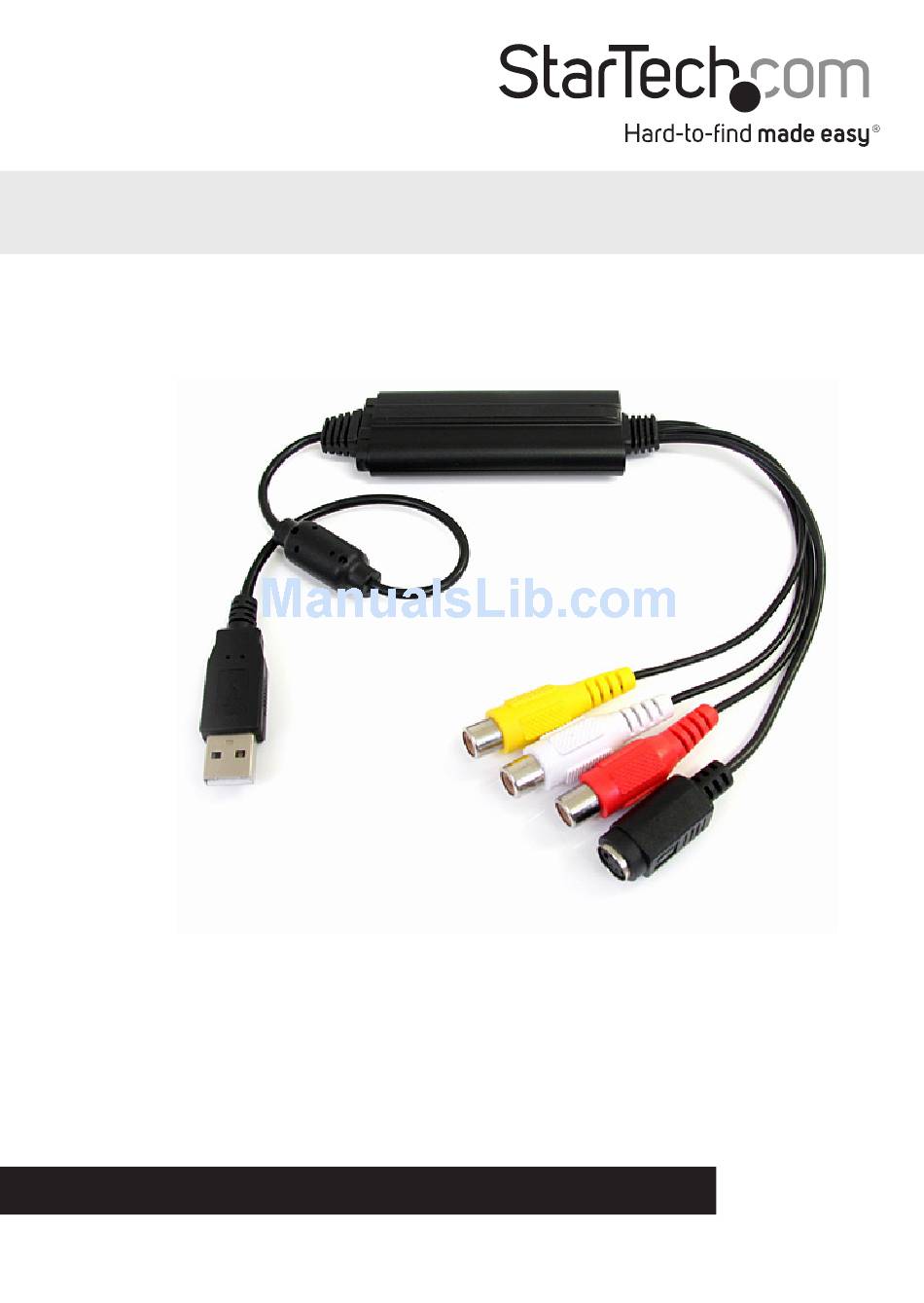

USB 2.0 Video Capture Cable
SVID2USB23
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/11/2011
*actual product may vary from photo
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SVID2USB23
Summary of Contents for StarTech.com SVID2USB23
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/11/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Verifying Installation ..........................3 Software Installation (Optional) ......................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction

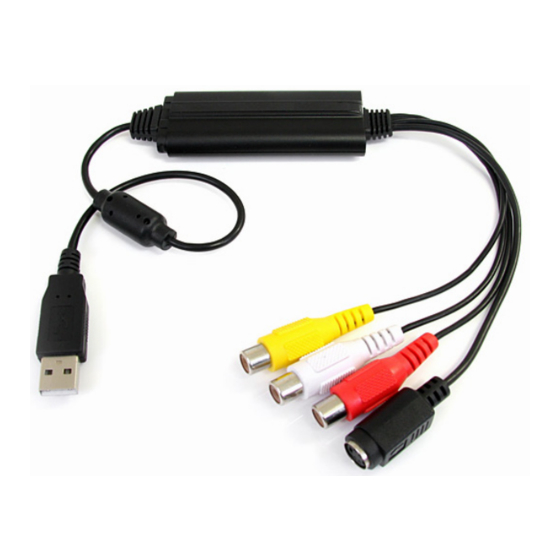

Introduction The StarTech.com SVID2USB23 USB 2.0 S-Video/Composite video Capture Cable lets you connect devices that output S-Video or Composite video to a computer, through an available USB 2.0 port. The cable also features two channel RCA stereo audio inputs, that let you capture the audio that accompanies the S-Video or Composite video signal. -
Page 5: Installation
Installation Please insert the included Driver CD into the CD-ROM Drive. At the Windows desktop, click the Start button, then “Run”. If this option is not available from the Start menu, press and hold the Windows key ( ) on the keyboard and press “R”. -
Page 6: Verifying Installation
If a Windows Security dialog window appears, click the “Install this driver software anyway” or “Continue Anyway” option to proceed. Connect the video source to the video capture adapter either through S-Video (black) or composite video (yellow) using the appropriate cables. Stereo audio (red/ white) can also be connected to the adapter. -
Page 7: Software Installation (Optional)
Software Installation (Optional) To install Ulead® VideoStudio® for use as video capture and editing software, follow these installation steps. If other video capture/editing software is to be used, then this is not necessary. Place the Ulead Video Studio SE CD into a CD-ROM drive and setup should launch automatically. -
Page 8: Specifications
Specifications Host Interface USB 2.0 Chipset ID eMPIA EM2860 1 x USB type A male 1 x RCA composite female (yellow) External Connectors 2 x RCA stereo audio female (red/white) 1 x S-Video female (black) LEDs 1 x Power Supported Video Systems NTSC, PAL, SECAM Maximum Video Resolution 720x480 (NTSC), 720x576 (PAL) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 Cable Finder, Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT or A/V solution. Find out for yourself why our products lead the industry in performance,...
