StarTech.com ICUSBROLLOVR Quick Start Manual

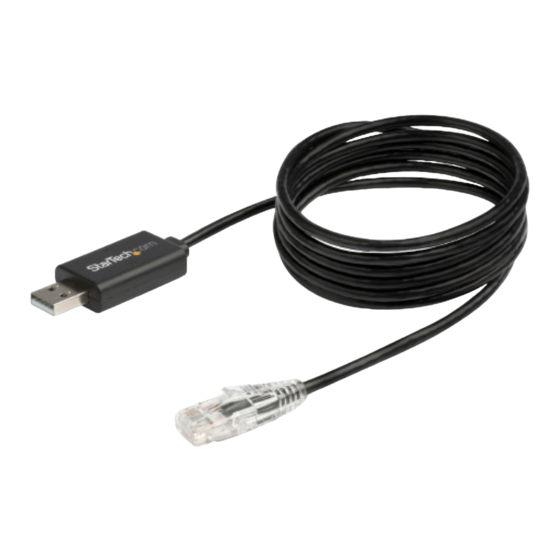

6 ft. Cisco Console Rollover Cable | USB to RJ45 | M/M
Product Diagram (ICUSBROLLOVR)
1
Port
• Used to connect the Rollover Cable to a Host
1
USB-A Connector
Computer.
• Used to connect the Rollover Cable to a
2 RJ45 Connector
Console Port on a Network Device.
Requirements
For the latest requirements and full manual, please visit
www.startech.com/ICUSBROLLOVR
• Host Computer with USB-A port
Package Contents
• USB to RJ45 Rollover Cable x 1
• Quick-Start Guide x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
Function
Installation
Windows
1. In a web browser, navigate to www.startech.com/ICUSBROLLOVR
2. Click the Drivers & Downloads tab.
3. Under Driver(s), download the Driver for your operating system.
4. When the file is downloaded, Right-click the file and Extract the contents.
5. Browse to the Windows folder and run the .zip file.
6. Follow the on-screen instructions to complete the installation.
7. Connect ICUSBROLLOVR to a USB-A port on the Host Computer.
8. Connect the ICUSBROLLOVR to the Console Port on a Network Device.
macOS
1. In a web browser, navigate to www.startech.com/ICUSBROLLOVR.
2. Click the Support tab.
3. Under Driver(s), download the .zip file.
4. When the file is downloaded, right-click the file and extract the contents.
5. Browse to the Mac folder, and select the appropriate folder for the version of OS that
you are running.
6. Run the .zip file application, and follow the on-screen instructions to complete the
installation.
7. Connect the ICUSBROLLOVR to a USB-A port on the Host Computer.
8. Connect the ICUSBROLLOVR to the Console Port on a Network Device.
Verify the Installation
Windows
1. Navigate to the Device Manager.
2. Expand the Ports (COM & LPT) section.
Quick-Start Guide
Manual Revision: July 15, 2022 11:55 AM
