Summary of Contents for Christie LX66 38-VIV305-01

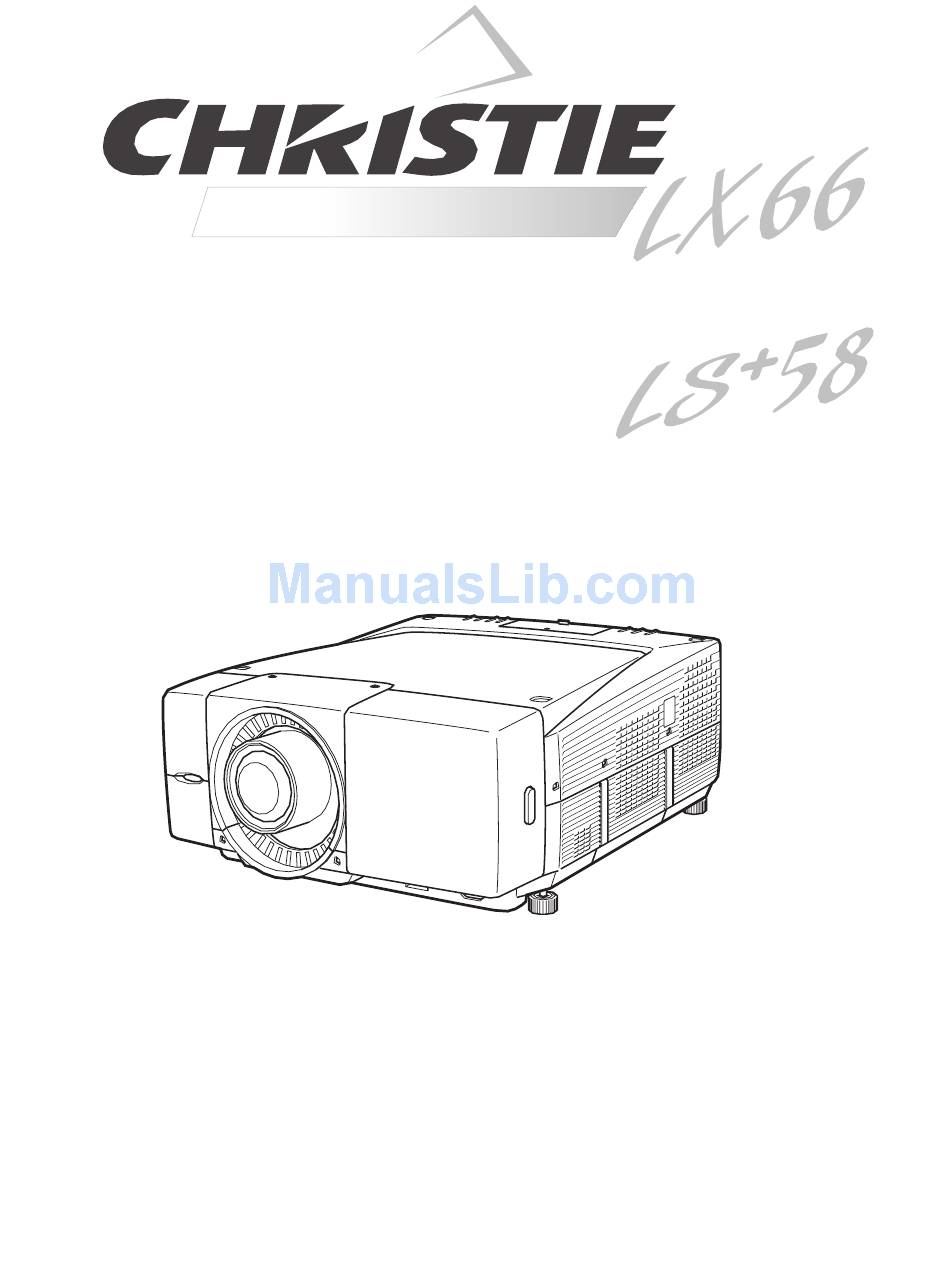

- Page 1 38-VIV305-01 38-VIV304-01 ✽ Projection lens is optional. User’s Manual...
-
Page 2: Features And Design
Features and Design This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ◆ ◆ Compatibility My Logo The projector widely accepts various video and computer... -
Page 3: Table Of Contents
Table of Contents Features and Design ....2 Volume Control ......33 How to Operate the On-Screen Menu . -
Page 4: To The User
To The User Before operating this projector, read this manual thoroughly Safety Precaution and operate the projector properly. This projector provides many convenient features and WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC functions. Operating the projector properly enables you to SHOCK, DO NOT EXPOSE THIS APPLIANCE manage those features and maintains it in better condition for TO RAIN OR MOISTURE. -
Page 5: Safety Instructions
Safety Instructions All the safety and operating instructions should be read before This projector should be operated only from the type of power the product is operated. source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or Read all of the instructions given here and retain them for later local power company. -
Page 6: Air Circulation
Safety Instructions Air Circulation Setup In Proper Directions Openings in the cabinet are provided for ventilation and to Use the projector properly in specified positions. Improper ensure reliable operation of the product and to protect it from positioning may reduce the lamp life and result in severe overheating, and these openings must not be blocked or accident or fire hazard. -
Page 7: Moving The Projector
Safety Instructions Moving the Projector Carry the projector by two or more people holding the carrying handle. Carrying Handle Disconnect all the cables from the projector before moving the projector. Moving the projector with the cables connected may cause damage to the projector or result in serious injury. -
Page 8: Compliance
Compliance Federal Communication Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 9: Preparation
Preparation Parts Name q Remote Receiver Front w Projection Lens (Option) e Front Cover (inside Terminals) r Speaker t Carrying Handle y Air Exhaust Vent CAUTION Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side. -
Page 10: Indicators
Preparation Indicators Press here to open the Top Lid and then top controls appear. (See next page.) q LAMP1 REPLACE indicator t READY indicator Turns orange when the life of the projection lamp1 Lights green when the projector is ready to be turned on draws to an end. -
Page 11: Top Control
Preparation Top Control AUTO LENS MENU INPUT PC ADJ. SHIFT ZOOM INFO. CANCEL SHUTTER POWER FOCUS SELECT q LENS SHIFT button t INFO. button Activates Lens shift function. (p30) Displays Information. (p31) y AUTO PC ADJ. button w MENU button Operates the Auto PC adjustment function. -
Page 12: Terminals
Preparation Terminals INPUT 3 INPUT 1 ANALOG IN ANALOG OUT R-AUDIO-L AUDIO 1 DIGITAL (DVI-D) (MONO) INPUT 2 S-VIDEO VIDEO/Y Cb/Pb Cr/Pr AUDIO 2 VIDEO/Y Cb/Pb Cr/Pr INPUT 3 terminals INPUT 1 terminals AUDIO (R-L) AUDIO 1 Connect the audio output from video equipment Connect the audio output from a computer or video connected to VIDEO/Y Cb/Pb Cr/Pr jacks or S-VIDEO equipment connected to DIGITAL (DVI-D) or ANALOG... - Page 13 Preparation ✽ e R/C JACK INPUT 4 (WARP & BLENDING board) Connect the remote control to this jack with the supplied remote control cable to use the remote control as wired. DIGITAL (DVI-D) (HDCP compatible) (p26) Connect digital output signal from a computer or video equipment to this terminal with a DVI-D cable.
-
Page 14: Remote Control
Preparation Remote Control S H U T T E R D . Z O O M O N - O F F KE YSTO NE Z O O M F O C U S LE NS SHIF T S H U T T E R D . Z O O M O N - O F F KEYST ONE Z O O M... - Page 15 SHUTTER D.ZOOM ON-OFF K E Y S T O N E Preparation ZOOM FOCUS L E N S S H I F T CANCEL MENU AUTO PC INFO FREEZE SCREEN VOL. SOUND P-TIMER INPUT 1 MUTE INPUT 2 INPUT 4 REMOTE INPUT 5 INPUT 3...
-
Page 16: Remote Control Transmitter
Preparation Remote Control Transmitter This wireless remote control uses radio frequency signal. You can switch four frequency channels prepared and select a remote control ID from eight IDs. The Remote Control Channel selection prevents radio frequency interference from the other equipment and the Remote Control ID selection allows you to operate several projectors with their respective remote controls without mutual interference among those projectors. -
Page 17: Remote Control Battery Installation
Preparation Channel switches sequentially for ID switches sequentially for one one pressing the SELECT button. pressing the SELECT button. Remote Control CH Remote Control ID Radio Frequency ✽ ✽ CH 1 ID 1 2.472 GHz CH 2 2.403 GHz ID 2 CH 3 2.446 GHz ID 3... -
Page 18: Installation
Installation Installation Install the projector in a safe place. Before installation, read Safety Instructions thoroughly and check the installation place. Install the projector in a place with sufficient strength to support the projector's weight. Installation on an unstable stand, cart, or ceiling may cause serious injury or accidents. -
Page 19: Lens Shift Adjustment
Installation Lens Shift Adjustment Lens shift feature is provided to move the position of the projected image vertically by 50% and horizontally by 10% respectively without any image distortion. ✽ Lens shift range varies depending on lens and projectors. The range in this manual is the case of LNS-W04. Level Adjustable Feet This projector has four level adjustable feet. -
Page 20: Connecting Ac Power Cord
Installation Connecting AC Power Cord This projector uses nominal input voltages of 120 V or 200-240 V AC. This projector automatically selects correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce risk of electrical shock, do not plug into any other type of power system. -
Page 21: Connection Terminals
Installation Connection Terminals Terminals to connect AC power cord and other equipment are Front cover located in the front part of the projector for easy setup. The terminal area is masked with the front cover to protect them from dust and others, and hide messy cable connections. Remove and replace the front cover following the procedure below: Pushing the button A on right side of the front cover, pull the part... -
Page 22: Connecting To Computer (Digital And Analog Rgb)
Installation Connecting to Computer (Digital and Analog RGB) Cables used for connection q VGA Cable (HDB 15 pin) t Audio Cables (Mini Plug: stereo) ✽ w DVI-D Cable ✽ = Not supplied with this projector.) e BNC Cable ✽ r Serial Cross Cable (RS-232C) ✽... -
Page 23: Connecting To Digital Pc/Av Equipment (Warp & Blending)
Installation Connecting to Digital PC/AV Equipment (Warp & Blending) Cables used for connection q DVI-D Cable w Serial Cross Cables (RS-232C) ✽ ✽ = Not supplied with this projector.) Refer to the enclosed operation manual for details in operation of the Warp &... -
Page 24: Connecting To Video Equipment (Digital And Video)
Installation Connecting to Video Equipment (Digital and Video) Cables used for connection q Video Cable ✽ w S-Video Cable ✽ e DVI-D Cable r Audio Cables (RCA x 2, Mini Plug: stereo) ✽ (✽ = Not supplied with this projector.) Audio Output Digital Output Video Output... -
Page 25: Connecting To Video Equipment (Component And Rgb Scart)
Installation Connecting to Video Equipment (Component and RGB Scart) Cables used for connection q BNC Cable ✽ w Scart-VGA Cable ✽ e Component Cable ✽ r Audio Cables (Mini Plug (stereo) + RCA x 2, or RCA x 1) ✽ ✽... -
Page 26: Basic Operation
Basic Operation Operating the Projector You can operate the projector with the projector's top control, the remote control or a USB mouse (not provided). The remote control is available as wireless and wired. Operational range of the wireless remote control is within about 32.8' (10m) from the projector. Operational range differs depending on environments where the projector is used. -
Page 27: Basic Operation And Reference Buttons
Basic Operation Basic Operation and Reference Buttons For detail operations other than those on this page, follow the respective menu operations described later. Top Control Remote Control Operations & Buttons Ref. Pages On-Off 28, 29 ➔ ➔ Lens Shift ➔ Zoom e e d d ➔... -
Page 28: Turning On The Projector
Basic Operation Turning On the Projector Complete peripheral connections (with Computer, VCR, etc.) before turning on the projector. (Refer to page 22~25 for connection.) Turn on the MAIN On/Off switch of the projector. The LAMP indicator lights red, and the READY indicator lights green. -
Page 29: Turning Off The Projector
Basic Operation Turning Off the Projector Press the POWER ON-OFF button on the top control or the remote control, and a message "Power off?" appears on the screen. Press the POWER ON-OFF button again to turn off the projector. The LAMP indicator brightly lights red and the READY indicator goes out. -
Page 30: Lens Shift Adjustment
Basic Operation Lens Shift Adjustment Press the LENS SHIFT button and adjust with the Control pad. • When the lens position comes right in center vertically, the vertical arrows turn red. • When the lens position comes right in center horizontally, the horizontal arrows turn red. -
Page 31: Input Selection
Basic Operation Input Selection Choose either Input 1, Input 2, Input 3, Input 4, or Input 5 by INPUT button pressing the INPUT button on the top control or the INPUT 1, Input 1 INPUT 2, INPUT 3, INPUT 4, or INPUT 5 button on the remote control. -
Page 32: Keystone Adjustment
Basic Operation Keystone Adjustment Keystone function is provided to correct image distortions. Press the KEYSTONE button and correct vertical and horizontal distortions with the Control pad. The Keystone adjustment can be memorized. (p49) ✔ Note: Horizontal keystone is ineffective for 38-VIV304-01. •... -
Page 33: Zoom +/- Function
Basic Operation D. Zoom +/– Function D. Zoom + Press the D. ZOOM button on the remote control once and then expand the image size with the SELECT button and pan the image with the Control pad. D. Zoom – Press the D. -
Page 34: How To Operate The On-Screen Menu
Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages for respective adjustment and setting procedure. Top Control Top Control/Remote Control Operation Press the MENU button on the projector's top control or the LENS remote control to display the On-Screen Menu. - Page 35 Basic Operation On-Screen Menu Menu icon Guide Currently selected menu. Control bar for Mouse Operation This bar appears when a USB mouse is connected to the USB terminal of the projector. Mouse cursor When clicking on 77 or 88 on the control bar, menu SELECT icons rotate fast.
-
Page 36: Menu Icons And Their Features
Basic Operation Menu Icons and Their Features The projector can be adjusted or set via the On-Screen Menu. Refer to the following pages for respective adjustment and setting procedure. Menu icons What You Can Do with Each Menu Page no. INPUT : selects input sources. -
Page 37: Input
Input Input selects computer and video input sources. Press the MENU button to display the On-Screen Menu. Input Menu Spin the menu icons with the Control pad and press the SELECT button when the INPUT icon comes right in front. Move the yellow frame pointer with the Control pad to a input which you want to select. - Page 38 Input Input 2 Move a pointer to Input 2 and press the SELECT button. Source Select Menu When the input source is analog coming Move the pointer to from a computer through the Input 2 (5 RGB, Video or Y, Pb/Cb, BNC-type: Red, Green, Blue, H.
-
Page 39: System
System System selects system of the connected computer and video source. PC System Menu PC System Selection Auto This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA or UXGA with its Multi-scan System icon system and Auto PC Adjustment. -
Page 40: Video Or S-Video Signal Selection
System AV System Menu (Video or S-Video) Video or S-Video Signal Selection Auto The projector automatically detects incoming video system, and adjusts itself to optimize its performance. When Video System is PAL-M or PAL-N, select system manually. PAL / SECAM / NTSC / NTSC4.43 / PAL-M / PAL-N If the projector cannot reproduce proper video image, it is Move the yellow necessary to select a specific broadcast signal format among PAL,... -
Page 41: Computer Adjustment
Computer Adjustment selects Auto PC adj., Fine sync, Total dots, Current mode, Clamp, Display area, Position, V -sync phase, Reset, and Mode. PC Adjustment PC Adjust Menu Auto PC Adjust Auto PC adj. Press the MENU button to display On-Screen Menu. Spin the menu icons with the Control pad and press the SELECT PC ADJ. -
Page 42: Manual Pc Adjust
Computer Adjustment Manual PC Adjust PC Adjust Menu Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 50 independent memory areas to memorize those parameters adjusted manually. - Page 43 Computer Adjustment Position Adjusts picture position. V-sync phase Adjust this item when the projected image is affected by the noise from the external equipment. (From 0 to 15) Press the SELECT button ✔ Note: at the Display area and the Display area dialog box V-sync phase is not displayed as the item is initially checked off on My menu in the appears.
-
Page 44: Image Adjustment
Image Adjustment Image selects image level from Standard, Cinema, Real, and Image 1~10. Press the MENU button to display On-Screen Menu. Spin Image Menu (PC) the menu icons with the Control pad and press the SELECT button when the IMAGE icon comes right in front. Move the yellow frame pointer with the Control pad to an image level which you want to select and then press the SELECT button. -
Page 45: Image Adjust
Image Adjustment adjusts Contrast, Brightness, Color, Tint, Color management, Auto picture control, Color temp., Red, Green, Blue, Sharpness, Gamma, Noise reduction, Image Adjust Progressive, Film, and selects Reset and Store. Press the MENU button to display On-Screen Menu. Spin Image Adjust Menu the menu icons with the Control pad and press the SELECT button when the IMAGE ADJ. - Page 46 Image Adjustment Move the pointer to one of the followings with the Control pad Color management list and press the SELECT button. Move the pointer to LIST ....displays Color Management List window to store the selected color the adjustment data. press COLOR.M ..returns to the previous image with the Color SELECT button.
- Page 47 Image Adjustment Gamma Adjust with the Control pad to obtain better balance of contrast. (From 0 to 15.) Noise reduction Select one of the followings to reduce noise of the image. Off ..disabled L1 ..Select “L1” for an active picture. L2 .
-
Page 48: Screen Setting
Screen Setting selects the screen size from Normal, Wide, True and Full screen; customizes it by Scale, H&V, Position, Common and Reset; adjusts it by Screen Setting Digital zoom +/–, Keystone and sets Ceiling and Rear. Press the MENU button to display On-Screen Menu. Spin Screen Setting Menu the menu icons with the Control pad and press the SELECT button when the SCREEN SETTING icon comes right in... - Page 49 Screen Setting D. Zoom D. Zoom D. Zoom + Press the SELECT button at the D. Zoom +. The message “D. Zoom +” is displayed. Press the SELECT button to expand the image size. And use the Control pad to pan the image. The Panning function can work only when the image is larger than the screen size.
-
Page 50: Sound
Sound Sound adjusts Volume, Treble, Bass, or mutes sound. Press the MENU button to display On-Screen Menu. Spin Sound Menu Sound icon the menu icons with the Control pad and press the SELECT button when the SOUND icon comes right in front. Pointer (yellow frame) Move the yellow frame pointer with the Control pad to an... -
Page 51: Setting
Setting changes various settings: Language, Menu, Logo, Background, Lamp, Remote control, Display, Input search, Power management, On start, Analog Setting out, Lens memory, Shutter, Security, and Factory default. Press the MENU button to display On-Screen Menu. Spin Setting Menu (Language) the menu icons with the Control pad and press the SELECT button when the SETTING icon comes right in front. - Page 52 Setting Logo Select Logo Logo settings can be altered as follows: Logo select This function decides what to be displayed on the starting-up display as follows: Default ..the factory-set logo My logo . . .the image you captured Off .
- Page 53 Setting PIN Code Change PIN Code change Dialog Box Logo PIN code can be changed to your desired four-digit number. Select "PIN code change" with the Control pad and press the Select PIN code change and SELECT button. Set a new Logo PIN code. press the SELECT button.
- Page 54 Setting Display This function decides whether to display On-Screen Displays. On ..shows all the On-Screen Displays. Off ..sets On-Screen Displays disappeared except; ● On-Screen Menu ● “Power off?” message ● P-TIMER ● “No signal”...
- Page 55 Setting Analog out The ANALOG OUT terminal is for output of the analog signal coming from the ANALOG IN terminal in the Input 1 terminals. (See page12.) Select "On" to enable the signal output through the ANALOG OUT terminal always except in the stand-by mode or "Off" to disable the Lens memory signal output.
- Page 56 Setting Shutter Management Shutter Management The Shutter Management function turns off the projection lamp when the projector is left with the shutter released and the set time has passed away. The count-down time can be set between 5 and 180 minutes. When the count-down time has elapsed, the shutter will be opened up automatically and the lamp will be turned off to cool itself down.
- Page 57 Setting PJ lock PJ lock This function prevents the projector from being operated by an unauthorized person and provides the following settings for security options. On1 ..requires to enter the PIN code every time turning on the projector.
- Page 58 Setting Factory default Factory default This function returns all setting values to the factory default settings except for those including: User logo, PJ PIN code, Logo PIN code, Security setting, Lamp time, Filter time and PJ time. Quit Exits the Setting menu. Select Factory default and this box appears.
-
Page 59: Special
Special customizes control functions: Lamp, Fan control, Filter, Auto PC adj., Test pattern, RS- Special 232C, and USB memory and displays Warning log. Press the MENU button to display On-Screen Menu. Spin Special Menu (Lamp) the menu icons with the Control pad and press the SELECT button when the SPECIAL icon comes right in front. - Page 60 Special Test pattern Auto PC adj. Select "On" to enable the Auto PC adjust function and "Off" to disable it. Refer to page 31 and 41 for Auto PC adjust function. Select Test pattern and then the Test pattern Test pattern selection box is displayed.
-
Page 61: Information
Special USB Memory Menu Warning log Move the yellow frame pointer to a USB memory Warning log shows the information of the past warning history of to store the data and then the projector. Up to 50 logs can be displayed. Log contents are press the SELECT button. -
Page 62: Maintenance And Cleaning
Maintenance and Cleaning Warning Temp Indicator The WARNING TEMP indicator shows the state of the function which protects the projector. Check the state of the WARNING TEMP indicator and the READY indicator to take proper maintenance. The projector is shut down and WARNING TEMP indicator is blinking red. -
Page 63: Air Filter Replacement
Maintenance and Cleaning Air Filter Replacement Air filters prevent dust from accumulating on the surface of the optical elements inside the projector. Should the air filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat build up and adversely affect the life of the projector. -
Page 64: Lamp Replacement
Maintenance and Cleaning Lamp Replacement When the life of the projection lamp of this projector draws to an Top Control end, the LAMP1 and 2 REPLACE indicators light orange. If this indicator lights orange, replace the lamp with a new one promptly. CAUTION For continued safety, replace with a lamp of the same type. -
Page 65: Lamp Handling Precautions
Maintenance and Cleaning ORDER REPLACEMENT LAMP Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer. ● Model No. of your projector 38-VIV305-01 / 38-VIV304-01 ● Replacement Lamp Type No. 03-000881-01P (Service Parts No. -
Page 66: Cleaning The Projection Lens
Maintenance and Cleaning Cleaning the Projection Lens Follow these steps to clean the projection lens. Disconnect the AC power cord before cleaning. Softly wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use lens cleaning paper or a commercially available air blower to clean the lens. -
Page 67: Indicators And Projector Condition
Maintenance and Cleaning Indicators and Projector Condition Main Indicators Indicators Projector Condition WARNING READY LAMP TEMP Green The projector is OFF. (The AC power cord is unplugged.) The projector is preparing for stand-by or the projection lamp is being cooled down. -
Page 68: Shutter Indicator
Maintenance and Cleaning Shutter Indicator Indicators Projector Condition LAMP READY SHUTTER Green Blue The shutter is released. (The projector is On.) In Shutter management mode. (The projector is in the stand-by mode.) Slow In Shutter management mode. (The projector is in the cooling mode.) Slow The shutter is out of control. -
Page 69: Lamp Replace Indicators
Maintenance and Cleaning Lamp Replace Indicators Indicators Projector Condition LAMP 1/2 LAMP READY REPLACE Green Orange The lamp cannot light up. (The projector is preparing for stand-by or the projection lamp is being cooled down. The projector cannot be turned on until cooling is completed. -
Page 70: Appendix
Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on page 22~25. – Make sure all equipment is connected to AC outlet and the power is turned on. –... - Page 71 70, 71. To correct failure, try "Solutions". If after following all operating instructions, you find that service is necessary, contact Christie Service Station or store where you purchased unit. Give model number and explain difficulty. We will advise you how to obtain service.
-
Page 72: Compatible Computer Specifications
Appendix Compatible Computer Specifications Basically this projector can accept a signal from all computers with V, H-Frequency mentioned below and less than 230 MHz of Dot Clock. ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq. V-Freq. RESOLUTION RESOLUTION DISPLAY (kHz) (Hz) DISPLAY (kHz) (Hz) VGA 1 640 x 480... - Page 73 Appendix When a input signal is digital from DVI terminal, refer to chart below. ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq. V-Freq. RESOLUTION RESOLUTION DISPLAY (kHz) (Hz) DISPLAY (kHz) (Hz) D-VGA 640 x 480 31.47 59.94 D-SXGA1 1280 x 1024 63.98 60.02 720 x 480 D-480p 31.47...
-
Page 74: Technical Specifications
Appendix Technical Specifications Mechanical Information Projector Type Multi-media Projector Dimensions (W x H x D) 20.39" x 9.92" x 23.86" (518mm x 252mm x 606mm) (Not including adjustable feet) Net Weight 54.3 lbs (24.7kgs) Feet Adjustment 0˚ to 3.65˚ Panel Resolution 38-VIV305-01 38-VIV304-01 LCD Panel System... -
Page 75: Optional Parts
Appendix Accessories Owner's Manual AC Power Cord Remote Control and Batteries DVI-D Cable VGA Cable Wired Remote Cable Lens Attachment Light Block Plates (2types) Advanced Screen Manager (CD-ROM) Real Color Manager Pro (CD-ROM) Protective Dust Cover Cord Cover Strap Security Label (PIN Code/USB Key) ●... -
Page 76: Menu Tree
Appendix Menu Tree INPUT Input 1 RGB (PC Analog) System (1) RGB (Scart) Auto RGB (PC Digital) System (1) System (1) RGB (AV HDCP) Input 2 System (1) Video System (2) Y, Pb/Cb, Pr/Cr System (3) Video Input 3 System (2) Y, Pb/Cb, Pr/Cr System (3) S-Video... - Page 77 Appendix IMAGE SETTING English Standard (AV) Language German Cinema French Standard (PC) Italian Real Spanish Image 1 Portuguese Image 2 Dutch Image 3 Swedish Image 4 Russian Image 5 Chinese Image 6 Korean Image 7 Japanese Image 8 Image 9 Position Image 10 Menu...
- Page 78 Appendix INFORMATION Input System Signal Screen Language Lamp mode Lamp status Power management Shutter management Smoke resist Option filter time Security Remote control Quit SPECIAL Lamp Lamp 1 Hour(s) Reset Yes/No Lamp 2 Hour(s) Yes/No Reset Normal Fan control Projector Hour(s) Filter Reset...
-
Page 79: Dimensions
Appendix Dimensions Unit : inch (mm) 7.24 (184) 20.39 (518) 9.92 (252) 5.28 (134) 3.65˚ (Max.) 23.86 (606) 18.11 (460) 1.08 (27.5) 13.58 (345) Screw Holes for Ceiling Mount 18.27 (464) 14.53 (369) Screws: M8 Depth: 0.31(8.0) 2.36 (60) 9.15 (232.5) 9.15 (232.5) -
Page 80: Terminal Configurations
Appendix Terminal Configurations ANALOG INPUT / OUTPUT TERMINAL (ANALOG) Terminal : HDB15-PIN Red (R/Cr) Input / Output ----- Green (G/Y) Input / Output Ground (Vert.sync.) Blue (B/Cb) Input / Output Ground / ----- ----- ----- Ground (Horiz.sync.) Horiz. sync. Input/Output (Composite H/V sync.) Ground (Red) Vert. -
Page 81: Pin Code Number Memo
Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No. Factory default set No: 1 2 3 4* Logo PIN Code Lock No. -
Page 82: Index
Appendix Index Numerics Fan control ....... .59 Faroudja ........75 2:2 Pulldown . - Page 83 Appendix Menu Tree ....... .76 Setting ........51 Mouse Operation .
- Page 84 CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. CHRISTIE DIGITAL SYSTEMS, Inc. 627A Aljunied Road 809 Wellington Street North 10550 Camden Drive ViewPoint Willicher Damm 129 #05-02 Biz Tech Centre Kitchener, Ontario...
