Anchor ACCLAIM Owner's Manual

HAVING TROUBLE W/ YOUR SOUND SYSTEM?

CONDITION POSSIBLE SOLUTION
No Sound (power LED off) • turn POWER switch ON
• charge battery or plug in AC cord
Charge Indicator LED off • leave plugged in for 48 hours to repair battery
No Sound (power LED on) • check for output from source
• set Internal Speaker switch to ON
• make sure all cables are completely plugged in
• turn up volume control of input used
• remove plug from speaker output if not using external speaker output
Shortened Battery Life • charge battery fully; if battery life continues to deteriorate, contact
Distorted Sound • lower system volume control
Excessive Hum or Noise • use shielded cables
• use balanced microphone
HAVING TROUBLE W/ YOUR WIRELESS SYSTEM? (WIRELESS MODELS ONLY)
CONDITION POSSIBLE SOLUTION
No Sound (RX Indicator: ON) • set MUTE switch to on (handheld mic only)
• turn up WIRELESS volume control
• make sure mic is plugged into body pack transmitter
No Sound (RX Indicator: OFF) • push mic power button
• turn Acclaim POWER switch on
• make sure transmitter power switch is on
• set receiver and transmitter to same channel
• replace battery in transmitter
ANCHOR AUDIO CUSTOMER SERVICE
888/444-6077
ACCLAIM TECHNICAL SpECIFICATIONS
Rated Power Output 22 watts
Max SPL @ Rated Power 114 dB @ 1 meter
Frequency Response 60 Hz – 15 kHz ± 3 dB
AC Power Requirements 90 – 264 VAC, 50/60 Hz, 50 W max
Dimensions
Base (HWD) 14 x 22.5 x 13.5"/ 35.6 x 57 x 34.3
cm
Table Top 22.5 x 19" / 57 x 48 cm
Weight 30 pounds / 13.6 Kg
Inputs
Lectern Mic Lo-Z, balanced, phantom power, XLR
Auxiliary Mic Lo-Z, balanced, phantom power, XLR
Line Hi-Z, unbalanced, 1/4" phone
Anchor Audio, Inc.
Portable Sound Systems • Torrance, California
Anchor Audio customer service: (888) 444-6077
310/784-2300
Sensitivity For Rated Output
Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
Outputs
Line (post fader) Lo-Z (<1k ohm), buffered, 1/4" phone
Microphone Lo-Z, balanced, XLR
Speaker switched – 8ohm, 1/4" phone
unswitched – 4ohm, 1/4" phone
ACL-BASE
Dimensions (HWD) 30.5 x 21.5 x 18.5"/ 77.5 x 54.6 x 47
cm
Weight 38 pounds / 17.2 Kg
(Specifications subject to change without notice)
For Setup & Operation Videos Go To:
www.anchoraudio.com

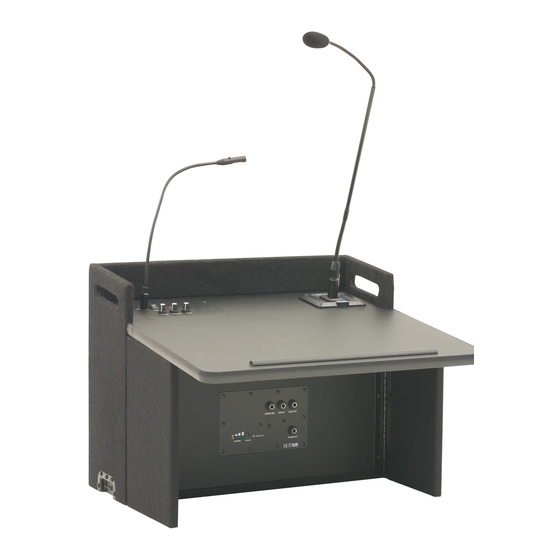

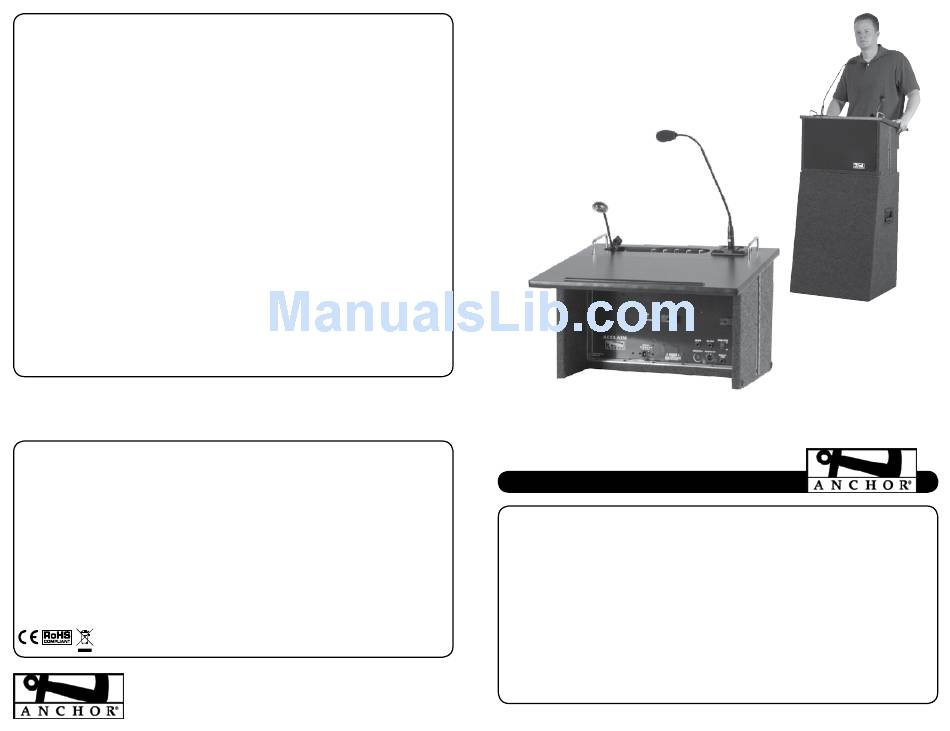

ACCLAIM
pORTABLE LECTERN SOUND SYSTEM
OWNER'S MANUAL
Getting Started ......................................................................................................................................... 2
Caring For Your Built-In Batteries .......................................................................................................... 3
ACCLAIM LECTERN BASIC SYSTEM OPERATION ............................................................................................ 4/5
Operating The Built-In Uhf Wireless Receiver ......................................................................................... 6
Acclaim Accessories .................................................................................................................................. 6
Operating The Wireless Microphone / Transmitter ............................................................................... 7
HAVING TROUBLE W/ YOUR SOUND SYSTEM? ................................................................................................ 8

ACCLAIM SOUND SYSTEM TECHNICAL SPECIFICATIONS .................................................................................... 8

100-0163-000/C - 4/09
CONTENTS
