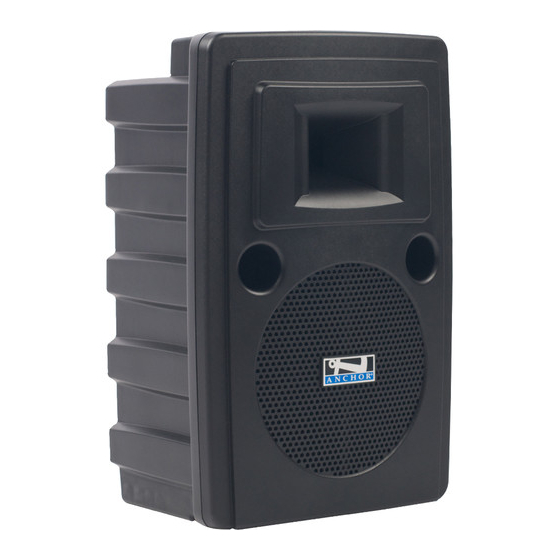

Anchor LIBERTY PLATINUM Manual

ANCHOR AUDIO WIRELESS
CHANNEL SELECTION - BUILT-IN RECEIVER
1. Choose any available wireless channel from 1 thru 16
2. Set the Wireless Channel Selection Knob to the channel you choose in step 1
If you have two wireless receivers repeat above for the second receiver. Remember, each
receiver/transmitter pair must be set to different channels to avoid interference.
WIRELESS 1 CHANNEL
SELECTION
WIRELESS 1 RX
INDICATOR LIGHTS
WIRELESS 1
VOLUME CONTROL
OPERATING THE WIRELESS MICROPHONE/TRANSMITTER
CHANNEL SELECTION -
HANDHELD TRANSMITTER
1. Unscrew battery cover on bottom of
microphone
2. Set the CHANNEL SELECTOR dial to match
the channel setting of your receiver
3. Replace battery cover and tighten firmly
The wireless RX indicators will light (only one indicator will light at a time) when the wireless
signal is being transmitted and received
WIRELESS 2 CHANNEL
SELECTION
WIRELESS 2 RX
INDICATOR LIGHTS
WIRELESS 2
VOLUME CONTROL
CHANNEL SELECTION -
BODY-PACK TRANSMITTER
1. The channel selection dial is located on
the side of the transmitter
2. Set the CHANNEL selection dial to match
the channel setting of the receiver
SOUND SYSTEM PLACEMENT
CORRECT SYSTEM PLACEMENT
(having the micrphone too close to front of unit may cause feedback)
AC OPERATION & BATTERY CHARGING/INDICATORS
Liberty Sound Systems includes an automatic charging system designed to properly
charge and maintain the systems built-in batteries. To charge batteries plug the system
into an AC outlet and operate as normal while built-in batteries are charging. The
CHARGE STATUS LED will light when charging. Bright red indicates charge process has
begun. Amber indicates the charge process is almost complete, and green indicates
full battery. It takes approximately 7 hours to charge the completely drained Liberty
batteries.
SYSTEM STORAGE & BATTERIES
Fully charge batteries before first use and storage. For extended periods of storage
either leave system plugged into an AC outlet or charge the system at least once each
month for a minimum of 24 hours.
BUILT-IN BATTERY MAINTENANCE
To preserve battery life the built-in batteries MUST be FULLY charged before the first use.
Regardless of length of operation, it is recommended that batteries be fully charged as
soon as possible after each use.
WRONG SYSTEM PLACEMENT
