Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: OC-1N, Video Isolator OC-2, Dual Channel Video Isolator OC-4, Quad Channel Video Isolator... -
Page 2: Table Of Contents
Table 2: OC-2 Dual Channel Video Isolator Features Table 3: OC-4 Quad Channel Video Isolator Features Table 4: Technical Specifications of the OC-1N Video Isolator Table 5: Technical Specifications of the OC-2 Dual Channel Video Isolator Table 6: Technical Specifications of the OC-4 Quad Channel Video Isolator... -
Page 3: Introduction
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Overview Overview The Kramer OC-1N, OC-2 and OC-4 are high quality video isolator units for one, two and four video or sync signals, respectively. They provide complete isolation between devices thus eliminating video hum, ground loops, and DC offsets which can degrade picture quality. The video isolators let the user select which GROUND becomes floating - input, output, both or none, using the rear panel buttons. -
Page 6: Your Video Isolators
Your Video Isolators Your Video Isolators This section defines the OC-1N (see section 4.1), the OC-2 (see section 4.2) and the OC-4 (see section 4.3). 4.1 The OC-1N Video Isolator Figure 1 and Table 1 define the OC-1N: Figure 1: OC-1N Video Isolator... -
Page 7: The Oc-2 Dual Channel Video Isolator

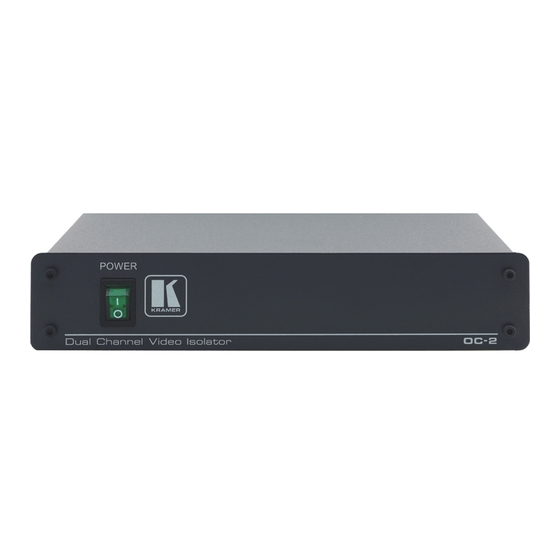

Your Video Isolators 4.2 The OC-2 Dual Channel Video Isolator Figure 2 and Table 2 define the OC-2: Figure 2: OC-2 Dual Channel Video Isolator Table 2: OC-2 Dual Channel Video Isolator Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF CHANNEL 1 / INPUT BNC Connector Connect to the video source... - Page 8 Your Video Isolators Figure 3: OC-4 Quad Channel Video Isolator KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 9: Connecting The Video Isolator
AC connector enabling power supply to the unit Connecting the Video Isolator This section describes how to connect the: OC-1N, see section 5.1 OC-2, see section 5.2 OC-4, see section 5.3 1 Insert a screwdriver into the hole and carefully rotate it, to trim the level... -
Page 10: Connecting The Oc-1N Video Isolator
Press or release the ground input and/or output GND buttons Figure 4: Connecting the OC-1N Video Isolator 1 Switch OFF the power on each device before connecting it to your OC-1N. After powering up your OC-1N, switch on the power on each device... -
Page 11: Connecting The Oc-2 Dual Channel Video Isolator
Connecting the Video Isolator 5.2 Connecting the OC-2 Dual Channel Video Isolator To connect the OC-2, as illustrated in the example in Figure 5, do the following 1. Connect up to two video sources: A video source (for example, a video player) to the CHANNEL 1 INPUT BNC connector A video source (for example, a camcorder) to the CHANNEL 2 INPUT BNC connector... -
Page 12: Connecting The Oc-4 Quad Channel Video Isolator
Connecting the Video Isolator 5.3 Connecting the OC-4 Quad Channel Video Isolator the OC-4, as illustrated in the example in Figure 6, do the To connect following 1. Connect up to four video sources: A video source (for example, a camcorder) to the CHANNEL 1 INPUT BNC connector A video source (for example, a camcorder) to the CHANNEL 4 INPUT BNC connector... -
Page 13: Figure 6: Connecting The Oc-4 Quad Channel Video Isolator
Connecting the Video Isolator Figure 6: Connecting the OC-4 Quad Channel Video Isolator... -
Page 14: Technical Specifications
Technical Specifications Technical Specifications Table 4 includes the technical specifications of the OC-1N, OC-2 and OC-4: Table 4: Technical Specifications of the OC-1N Video Isolator INPUT: 1 composite video, 1Vpp/75 on a BNC connector OUTPUT: 1 composite video, 1Vpp/75 on a BNC connector... - Page 15 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
