Summary of Contents for Kramer 401C
- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: 401C Y/C to Composite Converter/DA 401DN Composite to Y/C Decoder P/N: 2900-000158 Rev 4...
-
Page 3: Table Of Contents
Connecting the 401C Connecting the 401DN Technical Specifications Figures F igure 1: 401C Y/C to Composite Converter/DA F igure 2: 401C 401DN Composite to Y/C Decoder F igure 3: Connecting the 401C F igure 4: Connecting the 401DN 401C, 401DN – Contents... -
Page 4: Introduction
Video duplication studios, delivering high quality s-Video duplications The 401C also provides composite video outputs for simple monitoring. • Teleconference systems • Conversion from s-Video to composite video (401C) or for conversion from composite video to s-Video (401DN) 401C, 401DN - Introduction... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer 401C, 401DN away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

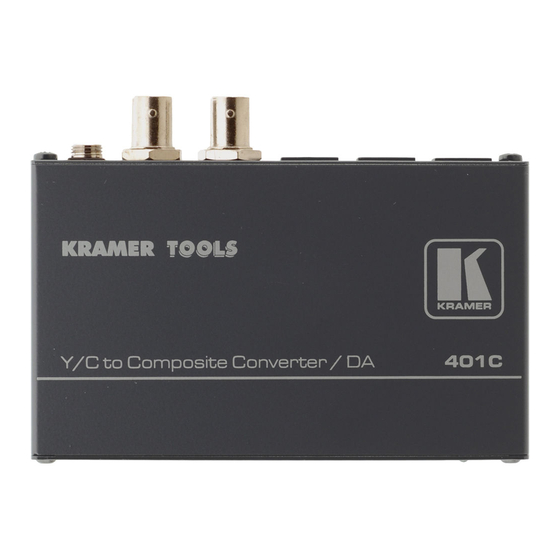

The Kramer TOOLS 401C and 401DN are high performance format converters for s-Video (Y/C) and composite video signals. The 401C converts an s-Video input to two composite outputs as well as simultaneously to two s-Video (Y/C) outputs, with no signal degradation. -
Page 8: F Igure 2: 401C 401Dn Composite To Y/C Decoder
The 401DN Composite to Y/C Decoder is defined in Figure Figure 2: 401C 401DN Composite to Y/C Decoder Feature Function COMPOSITE IN BNC Connector Connect to the composite video source Y/C OUT 4-pin Connector Connect to the s-Video acceptor 12V DC... -
Page 9: Connecting The 401C, 401Dn
Connecting the 401C, 401DN Always switch off the power to each device before connecting it to your 401C, 401DN. After connecting your 401C, 401DN, connect its power and then switch on the power to each device. The following sections describe how to connect the: 401C Y/C to Composite Converter/DA (see •... -
Page 10: Connecting The 401Dn
2. Connect the Y/C OUT 4-pin connector to an s-Video acceptor (for example, an s-Video recorder). 3. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity. 401C, 401DN - Connecting the 401C, 401DN... -
Page 11: Figure 4: Connecting The 401Dn
Figure 4: Connecting the 401DN 401C, 401DN - Connecting the 401C, 401DN... -
Page 12: Technical Specifications
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H. WEIGHT: 0.3kg. (0.66lbs.) approx. ACCESSORIES: Power adapter, mounting bracket OPTIONS: RK-3T 19” rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com 401C, 401DN - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
