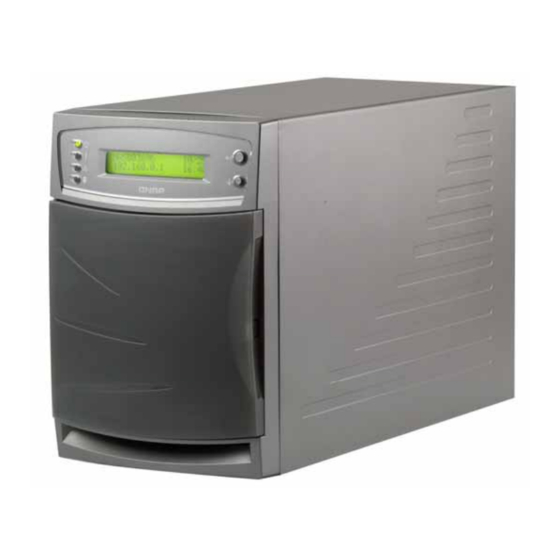

QNAP TS-401T Turbo Server User Manual

Network attached storage turbo server
Hide thumbs Also See for TS-401T Turbo Server:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Attached Storage
TS-401T Turbo Server

User Manual

Advertisement

Table of Contents
loading

Related Manuals for QNAP TS-401T Turbo Server

Summary of Contents for QNAP TS-401T Turbo Server

  • Page 1: User Manual

    Network Attached Storage TS-401T Turbo Server User Manual...
  • Page 2 TS-401T Turbo Server User Manual (Version: 1.0) ©Copyright 2005. QNAP Systems, Inc. All Rights Reserved. September 8, 2005 - 2 -...
  • Page 3 LIMITED WARRANTY In no event shall the liability of QNAP Systems, Inc. (QNAP) exceed the price paid for the product from direct, indirect, special, incidental, or consequential software, or its documentation. QNAP offers no refunds for its products. QNAP makes no...

  • Page 4: Table Of Contents

    Package Contents ................7 System Overview ................8 Chapter 2 Install TS-401T ..............9 Install Hard Disk................9 Hard Disk Recommendation List............13 Connect TS-401T to Office Network..........14 Chapter 3 Use LCD Panel ..............16 Chapter 4 Quick Install Wizard............20 Chapter 5 Use Services of TS-401T.............28 File Server...................
  • Page 5 6.5.7 Network Printer Service ............54 6.5.8 View Network Settings ............. 57 Disk Configuration ............59 6.6.1 Create Disk Volume ..............59 6.6.2 Delete Disk Volume..............61 6.6.3 Examine Disk Volume............... 62 6.6.4 Format Disk Volume..............63 6.6.5 View Disk & Volume Status ............63 User Management ............
  • Page 6 Chapter 7 Access TS-401T ..............100 By Microsoft Windows ..............100 By Apple MAC OS ............... 102 By Linux OS................108 By Web Browser ................. 108 By File Transfer Protocol (FTP) ............109 Chapter 8 NetBak Replicator .............112 Chapter 9 TS-401T Maintenance............126 Restart/ Shut down Server............

  • Page 7: Chapter 1 Overview Of Ts-401T

    Chapter 1 Overview of TS-401T Introduction Thank you for choosing TS-401T Turbo Server. This product has the following key features: • Simple installation, 5-min configuration and user-friendly management interface for SMB users. • High speed SATA HDD, supports hotswap, maximum capacity up to 1.6TB.

  • Page 8: System Overview

    System Overview Front View LCD panel LED indicators: Power, Enter button Error, Network and Disk Down button HDD 1 HDD 2 HDD 3 HDD 4 Rear View Reset button Power button Gigabit LAN 1 Gigabit LAN 2 USB ports Power connector ATX power supply - 8 -...

  • Page 9: Chapter 2 Install Ts-401T

    Chapter 2 Install TS-401T Install Hard Disk Components: TS-401T HDD tray x 4 3.5” SATA hard disk (optional) (included in TS-401T) Flat head screw (included in TS-401T) Screw driver (not included) - 9 -...
  • Page 10 Hard Disk Installation Procedure 1. Unfasten the round head screws and take out the disk trays from TS-401T. 2. Place a hard disk in a hard disk tray. Tray front It is highly recommended that you install disks of the same brand and same size on TS-401T.
  • Page 11 Fasten the flat head screws to lock the disk as indicated below. 4. When finished, open the tray cover of TS-401T and insert the disk to the server. Push the disk towards the end until it is locked. Note that all disks should be inserted in order from top to bottom (HDD1~HDD4).
  • Page 12 5. Fasten the tray with round head screws. Note: You can install 1~4 hard disks depending on the type of disk configuration you select for TS-401T. If less than 4 disks are installed and the server is turned on, the system will beep continuously. In such case, please go to Hardware Settings in System Tools (refer to Chapter 6.9.4)

  • Page 13: Hard Disk Recommendation List

    The following HDD models are verified by QNAP that are compatible with TS-401T. It is recommended to use the same brand and same size listed here for TS-401T if more than one hard disk is installed. Other HDD brands that are not tested by QNAP may or may not work properly with TS-401T.

  • Page 14: Connect Ts-401T To Office Network

    LAN with DHCP server. You can use any PC in the same subnet to connect the server by IE browser. TS-401T supports printer sharing which allows users in the local network to use printing service. You may also connect TS-401T to a CD/DVD burner for data backup and restore.
  • Page 15 Note: To connect TS-401T to a PC, please use a network cable to connect the PC to LAN 1 or LAN 2 of TS-401T. Connect the power supply and turn on the server. For further details about accessing TS-401T, please refer to Chapter 6.

  • Page 16: Chapter 3 Use Lcd Panel

    Chapter 3 Use LCD Panel When TS-401T is turned on, the server name, IP address, date, and time will be shown. Server name Date Power Enter button Error TS-401T 09/08 Network 10.8.10.49 02:22 Down button Hard disk IP address Time Check System Information Press Down button to view disk information, i.e.
  • Page 17 Press Down button again to view model number and version information. TS-401T 1.0.0 (0812) System Setting Function Press Enter button for two seconds to enter configuration page. TS-401T 1.0.0 (0812) Press Down button to select an item: NETWORK SETTINGS, POWER DOWN, REBOOT SYSTEM, and EXIT.
  • Page 18 Network Settings Enter NETWORK SETTINGS configuration page and press Down button to select one of the following options. The one marked with * means it is being used for connection. • DHCP DHCP will obtain IP address automatically. • STATIC IP Press Enter button to select STATIC IP.
  • Page 19 POWER DOWN Press Down button to select POWER DOWN and press Enter button to confirm shutting down TS-401T. SELECT: 2. POWER DOWN REBOOT SYSTEM Press Down button to select REBOOT SYSTEM and press Enter button to confirm restarting the system.

  • Page 20: Chapter 4 Quick Install Wizard

    IP address, and workgroup etc. You can also configure the disk name, date and time, etc. via Quick Install Wizard. To use Quick Install Wizard, run TS-401T CD-ROM in your PC and install the program.
  • Page 21 Run Quick Install shortcut on the desktop, the following screen will be shown. Windows workgroup Name of server IP address of server joined by server System version Configure the View the Refresh the Help Exit the server name, details of network search program...
  • Page 22 Operation Configure TS-401T Select a TS-401T displayed on Quick Install Wizard and click Configure. Enter the administrator password. Upon successful login, the following screen will appear. Enter the configuration values and click OK. - 22 -...
  • Page 23 IP address, subnet mask and gateway for the server. For further configuration of the system, please login the administration page of TS-401T via web browser. Note: You may have to restart TS-401T after changing the network configuration. - 23 -...
  • Page 24 View TS-401T details Select a TS-401T available on Quick Install Wizard and click Details. The following screen will be shown: - 24 -...
  • Page 25 Map drive Select a TS-401T and click Map Drive. Select the correct network share and click Map Network Drive. Then select the drive letter for the connection. - 25 -...
  • Page 26 Enter the user name and password for the network drive. Search for all available TS-401T again. To refresh the search results, click Refresh to display all available servers within the network. - 26 -...
  • Page 27 If you have any enquiries about Quick Install Wizard when using the program, you can click the Help button to view the help text. Enter the homepage of TS-401T Double click on TS-401T to enter the administration page. - 27 -...

  • Page 28: Chapter 5 Use Services Of Ts-401T

    You can make use of the following means to access and share the folders of TS- 401T easily: By Quick Install Wizard: By the Map Drive function of Quick Install Wizard, you can configure the share folders on TS-401T as a drive of your PC quickly. For further information, please refer to Chapter 4. ®...

  • Page 29: Backup Server

    NetBak Replicator ® NetBak Replicator is a powerful backup software dedicated to Windows users. You can back up your PC data to TS-401T easily by the user-friendly interface. Please refer to Chapter 8. Remote Replication Remote replication is a built-in backup feature of TS-401T. You can set up instant or scheduled backup to replicate the data of TS-401T to another NAS server.

  • Page 30: Chapter 6 Administer Ts-401T

    Chapter 6 Administer TS-401T When you have installed TS-401T and connected it to the network or PC, you can manage the server via web browser. It is recommended to use Microsoft Internet Explorer 6.0 or above to access TS-401T. Note: Windows 98 supports Internet Explorer 6.0 or above only.

  • Page 31: Access Administration Page

    Access Administration Page You can access TS-401T administration page by the following means: 3. Launch the web browser. Enter the IP address of TS-401T to access the administration page. You can check the IP address of TS-401T on the LCD panel (see Chapter 3).
  • Page 32 The first time you login TS-401T, Quick Configuration page will be shown. Please refer to 6.3 Quick Configuration for more details. To connect TS-401T by MAC, open a web browser in MAC and enter the IP address of TS-401T. Login the server and continue the software configuration.

  • Page 33: Server Administration

    Server Administration There are eight main sections in server administration: Quick Configuration Server Name Date & Time System Settings Language Setting View System Settings TCP/IP Configuration Microsoft Networking Network Apple Networking Settings Linux (NFS) Service Web Service FTP Service Printer Service View Network Settings Create Disk Volume Delete Disk Volume...

  • Page 34: Quick Configuration

    Quick Configuration Please follow the step-by-step guide in Quick Configuration to complete the settings of TS-401T. If you have any questions during web administration, please click the help button on the top right hand corner of the page. Other buttons...
  • Page 35 Step 2. Change the administrator password or select to use the original password. Step 3. Enter the date, time and select the time zone for the server. Step 4. Select the language the server uses to display files and directories. The default setting is English.
  • Page 36 Step 5. Enter the IP address, subnet mask and default gateway for the server. Select network interface configuration: fail over or load balance. Step 6. Select the network file services to provide on the server. - 36 -...
  • Page 37 Step 7. Configure disk volume on the server. Step 8. Configure the method of user authentication. Please refer to Chapter 6.5.2 for further information. - 37 -...
  • Page 38 Step 9. Manage users and user groups of this server. - 38 -...
  • Page 39 Step 10. Manage network shares on this server. Step 11. Finish. It may take several to tens of minutes to complete Quick Configuration, depending on your system settings. - 39 -...

  • Page 40: System Settings

    6.4.1 Server Name Enter the name of TS-401T. The server name can be 14 characters long at maximum, which can contain alphabets, numbers and hyphen (-). The server does not accept names with space, period (.), or names in pure numbers.

  • Page 41: Date & Time

    6.4.2 Date & Time Set the date, time, and time zone according to your location. If the settings are incorrect, the following problems may occur: When using a web browser to access or save a file, the display time of the action will be incorrect.
  • Page 42 NTP Server You can enable or use specified NTP (Network Time Protocol) server to update the date and time of the system automatically. To enable NTP server, please enable Configure NTP server or client setting and enter the IP address or domain name of the NTP server, e.g. time.nist.gov, time.windows.com in Use the specified NTP server field.

  • Page 43: Language Setting

    Language Setting Select the language TS-401T uses to display files and directories. Note: All files and directories on TS-401T will be created using Unicode encoding. If your FTP clients or PC does not support Unicode, e.g. Windows® 95, 98, ME OS is used, select the language your PC supports here in order to view the files and directories on the server properly.

  • Page 44: Network Settings

    Network Settings 6.5.1 TCP/ IP Configuration - 44 -...
  • Page 45 Configuration of Network Interfaces Fail Over (Default) The system supports the configuration of multiple network interfaces, which enables you to perform Fail Over or Load Balance functions. Fail over ensures server availability to the network. If the primary port is disconnected due to a hardware or cable problem, the secondary port will replace its network identity.
  • Page 46 Load Balance In load balance* mode, the transmission load is distributed among aggregated network ports. An intelligent software adaptive agent will repeatedly analyze the traffic flow from the server and distribute the packets based on the destination address. Load balance can only occur on Layer 3 routing protocols (IP or NCP IPX). Multicast/Broadcast and non-routing protocols, such as NetBEUI and Microsoft IPX, are transmitted over the primary port.
  • Page 47 Standalone Standalone settings enable each port to have a unique IP, which allows users on different network areas to share one TS-401T and maintain their independence from one another in the network. When using this mode, fail over cannot be used and only LAN 1 can be configured as DHCP server.
  • Page 48 • Obtain IP address settings automatically via DHCP If your network supports DHCP, TS-401T will automatically use DHCP protocol to retrieve the IP address and related information. • Use static IP address To use fixed IP address for network connection, enter fixed IP address, subnet mask and default gateway.
  • Page 49 Primary DNS Server: Enter the IP address of primary DNS server that provides DNS service for TS-401T in external network. Secondary DNS Server: Enter the IP address of secondary DNS server that provides DNS service for TS-401T in external network. You can also configure the following settings: Enable DHCP server If there is no DHCP server on your network, you can enable this option to provide IP address settings to the clients.

  • Page 50: Microsoft Networking

    Use Microsoft NT domain for user authentication. AD Domain Member TS-401T supports Windows 2003 AD (Active Directory) to provide quick and direct import of user accounts to the existing AD server available in your network. This function helps you to save time and effort on creating user accounts and passwords and lowers IT maintenance cost by automatic configuration procedure.
  • Page 51 PC in the network or workgroup of Windows. When a domain master browser (Windows NT/ 200x/ XP PC) exists already in the network, there is no need to configure TS-401T as the domain master.

  • Page 52: Apple Network

    If your AppleTalk network uses extended networks, and is assigned with multiple zones, assign a zone name to TS-401T. If you do not want to assign a network zone, enter an asterisk (*) to use the default setting. This setting is disabled by default.

  • Page 53: Web Service

    6.5.5 Web Service To access files on TS-401T via web browser, enable Web File Manager. If TS-401T is connected to the Internet and uses a valid IP address, you can access files on the server by web browser from anywhere.

  • Page 54: Network Printer Service

    Network Printer Service TS-401T provides network printer service. You can configure a USB printer as the network printer via TS-401T. Make sure at least one hard disk of TS-401T is formatted before enabling this function. The system will use HDD 1 for printer sharing service by default.
  • Page 55 Printer Settings on Client Side 1. Connect a USB printer to TS-401T. 2. After correctly enabling a USB printer on TS-401T, a printer icon should be shown in the share folder of the server. Right click the printer icon and click Open or Connect.
  • Page 56 3. Install the printer driver. 4. When finished, you can start to use network printer service. - 56 -...

  • Page 57: View Network Settings

    6.5.8 View Network Settings You can view current network settings and status in this section. - 57 -...
  • Page 58 - 58 -...

  • Page 59: Disk Configuration

    TS-401T. 6.6.1 Create Disk Volume TS-401T can accommodate four disks at maximum. You can set the disk volume to the following configurations by clicking on the icons on Create Disk Volume page: Single Disk Volume You can create an individual disk volume.
  • Page 60 RAID 5 Disk Volume Three or more hard disks can be integrated to form RAID 5 disk volume. Data will be distributed and stored among the disks. If a disk fails, you can replace a new disk with the damaged one, and the system will restore the data to the new disk.

  • Page 61: Delete Disk Volume

    e. Linear Disk Volume You can combine two or more disks into one larger disk. Files will be saved on physical disks sequentially but does not have a disk failure file protection function. The overall capacity of linear disk is the sum of all disks. 6.6.2 Delete Disk Volume To delete a disk volume, select the disk volume to remove and click OK.

  • Page 62: Examine Disk Volume

    6.6.3 Examine Disk Volume To examine a disk volume, select the disk volume to examine and click OK. You can check the Fix errors box and the server will fix errors automatically during disk checking. Disk Volume Operation Report After click OK on Examine Disk Volume page, a page like below will display to show the current status and information of disk volume operation.

  • Page 63: Format Disk Volume

    You can view details of physical disks and logical volumes in the section. Note: When configuring disk volume, make sure there are no active users connecting to TS-401T to avoid any potential damage to the disks. You can check all currently active users in Statistics & Logs—Active Users (refer to Chapter 6.10.1) and inform those users to logout before configuring disk...

  • Page 64: User Management

    User Management The files on TS-401T can be shared among multiple users. For easier management and better control of users’ access right, you have to organize users, user groups and their access right control. 6.7.1 Users The system has created the following users by default:...
  • Page 65 512 users can be created at maximum (including system default users). You can create a new user according to your needs. The following information is required to create a new user: User name The user name must not exceed 32 characters. It is case-insensitive and can contain double-byte characters, such as Chinese, Japanese, and Korean except: "...

  • Page 66: User Groups

    User Groups User group is a collection of users with the same access right to files or folders. TS-401T has created the following user groups by default: Administrators All members in this group have administration right. You cannot delete this group.
  • Page 67 Department and Ms. Jane Wu for Sales Department. The IT Department therefore needs to create two user accounts for them to access company data on TS-401T. To create a user account, go to User Management-Users. Click Create. Enter the user name (Jones Lee/ Jane Wu) and password. Check the box “Continue to set the user groups to which this user belongs”...
  • Page 68 iii. Select the user groups the users belong to on the right list, i.e. Mr. Jones Lee for Administration Dept and Ms. Jane Wu for Sales Dept, and click Add. Then click Close. After creating the users, the users will appear on the list on Create User Page. - 68 -...
  • Page 69 Create Private Network Share for User Groups You can create particular network share for each user group. The procedure is described as below: 1. To create a network share called media accessible by Administration Department only, please go to “User Management—User Groups” page. Select the user group Administration Dept and click Create Private Network Share on the right.
  • Page 70 3. You can see the folder media in Network Share Management page. 4. Enter Access Control. You can see that only Administration Dept has full access right to the folder. - 70 -...

  • Page 71: Quota

    The IT department is planning to set the disk quota of Mr. Jones Lee from Administration Department and Ms. Jane Wu from Sales Department on TS-401T. The disk quota is 2000MB for Mr. Jones Lee and 4000MB for Ms. Jane Wu.
  • Page 72 2. Select Jones Lee on User page and click Quota Settings on the right. 3. Enter the quota size 200MB and click OK. 4. Follow the same steps and enter the quota size 4000MB for Jane Wu and click OK. The quota setting is successfully applied. - 72 -...

  • Page 73: Network Share Management

    Network Share Management The primary purpose of network storage is file sharing. In a standard operation environment, you can create different network share folders for various types of files, or provide different file access rights to users or user groups. There are four options in Network Share Management: - 73 -...

  • Page 74: Create

    6.8.1 Create To create a network share, enter the following information: Network share name The share name must not exceed 12 characters and cannot contain the following characters: " . + = / \ : | * ? < > ; [ ] % Disk volume This area shows the disk volume status.

  • Page 75: Property

    6.8.2 Property To edit the property of an existing network share, select a share and click Property. You can then edit the content of that share. 6.8.3 Access Control Once the network share is created, you can assign access rights to users or user groups: Deny access Access to the network share will be denied when this option is selected.

  • Page 76: Delete

    6.8.4 Delete Select a share and click delete. Click OK to confirm. - 76 -...

  • Page 77: System Tools

    System Tools System Tools enable you to optimize the maintenance and management of TS- 401T. 6.9.1 SNMP Settings Enable SNMP (Simple Network Management Protocol) service and complete all necessary settings to manage network components of the server by SNMP. When enabling SNMP Trap Notification, a message will be sent to a specified trap host when an error occurs.

  • Page 78: Alert Notification

    If your mailbox requires SMTP authentication, enter the user name and password. Note: It is recommended to send a test e-mail to make sure you can receive the alert mails. 6.9.3 Restart/ Shutdown Select to restart or shut down TS-401T. - 78 -...

  • Page 79: Hardware Settings

    6.9.4 Hardware Settings You can enable or disable the hardware functions of TS-401T. Enable LCD panel setting function To enable users to configure TCP/IP settings via the LCD panel. ii. Enable configuration reset switch By enabling this option, you can press the reset button for a few seconds to reset the administrator password and system settings to default.

  • Page 80: Ups

    6.9.5 If your UPS device provides USB interface, you can enable UPS (uninterruptible power supply) support to protect your system from abnormal system shutdown caused by power outage. In case of utility power failure, the system will shut down automatically by probing the power status of the connected UPS unit. Enable UPS support To activate the UPS support, you can select this option.
  • Page 81 UPS Model Select the UPS model from the list. If the UPS model you are using is not available on the list, please contact our technical support. IP Address of UPS If you have selected APC UPS with SNMP for UPS model, enter the IP address of the UPS.

  • Page 82: System Update

    6.9.6 System Update Note: If the system is running properly, you do not need to update the firmware. Before updating system firmware, please make sure the product model and firmware version are correct. Follow the steps below to update firmware: Step 1: Download the release notes of the same version as the firmware from QNAP website http://www.qnap.com.tw/.
  • Page 83 (TS-401T firmware version) - 83 -...

  • Page 84: Change Logo

    6.9.7 Change Logo You can choose a personal picture to display on the login page of TS-401T. The size of the picture cannot exceed 20K bytes. - 84 -...

  • Page 85: Remote Replication

    The files will be compressed before the replication process in order to save time for data transfer. Make sure a network share is created before creating a remote replication job. Using Remote Replication Login TS-401T, go to Remote Replication in System Tools. - 85 -...
  • Page 86 Click New to enter the following page. Complete all settings and click OK to save or Cancel to quit. Note: To use remote replication, enable Microsoft Networking service, make sure the destination network share and directory have been created, and the user name and password are valid to login the destination folder.
  • Page 87 Edit Select the job to be edited. Click Edit. Modify the settings. Click OK to save or Cancel to quit. iii. Delete Select the job to be deleted. Click Delete. - 87 -...

  • Page 88: Anti-Virus Configuration

    Note that you may have a valid activation code entered but an unknown error notification is shown. In such case, please check the DNS settings of TS-401T. Make sure DNS settings are properly set for the server to register the activation code online.
  • Page 89 The following screen will appear if a correct code is entered. You can view anti- virus information in the table at the bottom. As anti-virus function is not enabled, anti-virus status will be disabled. It is recommended to select Automatic Update when you enable anti-virus configuration.
  • Page 90 The first time you activate anti-virus configuration, anti-virus status will be Start, Auto Update, or Downloading. The status should be Enabled, Auto update, or Ready to indicate anti-virus function is enabled successfully. You need to update web content manually to acquire the latest data, as shown below. - 90 -...
  • Page 91 The first time anti-virus function is enabled, the system will create a folder “Quarantine” which saves all detected files infected with virus. This folder cannot be shown from Network Share Management, but can be viewed by Network Neighborhood or other file services. Note: Quarantine folder cannot be deleted.
  • Page 92 You can select four actions to take when virus is detected: • Clean virus; if failed, quarantine the infected file(s) The system will try to clean the virus. If failed, the infected files will be isolated in Quarantine folder. Details will be recorded in Event Logs. •...
  • Page 93 Viewing Details of Infected Files To view the details of infected files of the network share, go to Event Logs of Statistics & Logs. A warning message will be shown in the table. - 93 -...

  • Page 94: 6.9.10 Backup/ Restore/ Reset Settings

    6.9.10 Backup/ Restore/ Reset Settings To backup the setting(s), select the appropriate option(s) and click Backup. To restore a backup settings file, click Browse to select the file and click Restore. To reset the setting(s) to factory default(s), select the appropriate option and click Reset.

  • Page 95: 6.9.11 Usb Cd/ Dvd Backup/ Restore

    6.9.11 USB CD/ DVD Backup/ Restore USB Backup/Restore function enables you to back up local data to CD/DVD discs via USB CD/DVD burner, and CD/DVD data to local disk. Using USB Backup/Restore - 95 -...
  • Page 96 USB CD/DVD Detection a. Connect USB burner to TS-401T. Turn on the burner and input a writable disc. b. Click Re-detect. The system will display information of the detected burner. c. Click Eject Disc to eject the disc from the burner.
  • Page 97 Write data a. To write data from TS-401T to disc, enter the volume label name. b. In Source Path (Network Share/Directory), select a network share from the drop-down menu and enter a directory name. You can also use stroke to indicate multiple directories, e.g.
  • Page 98 Load data a. Insert the disc for loading data to TS-401T network share. The volume label is shown in CD Label. b. In Destination Path (Network Share/Directory), select a network share from the drop-down menu and enter a directory name. You can also use stroke to indicate multiple directories, e.g.

  • Page 99: Statistics & Logs

    6.10 Statistics & Logs You can view the event logs of all currently online users on TS-401T for system monitoring. 6.10.1 Active Users This page shows all users that are currently logged on to Web File Manager. 6.10.2 Event Logs TS-401T can store thousands of recent event logs, including warning, error and information messages.

  • Page 100: Chapter 7 Access Ts-401T

    Chapter 4. You may also search for TS-401T within the Network Neighborhood. Locate the workgroup and find the name of your TS-401T. When the server is found, double-click on the server name to connect. You may also use “Search for Computers” function to look for your TS- 401T in Windows.
  • Page 101 Once the connection to TS-401T is successful, all listing on your available network share will be displayed. Use the option Map Network Drive to map the folder(s) as your network drive. - 101 -...

  • Page 102: By Apple Mac Os

    By Apple MAC OS If you are an Apple MAC user, you can access TS-401T by the following ways: Using Network Browser Choose “Network Browser” in Apple menu. In “Network Browser”, choose AppleTalk. A list of computers on the AppleTalk network will appear. Select TS-401T.
  • Page 103 Enter the login name and password, or use “Guest” to enter. Click Connect. When TS-401T is connected, all network shares will be shown. - 103 -...
  • Page 104 Choose a network share to connect. The network share will appear on the desktop. - 104 -...
  • Page 105 Using Chooser Select Chooser on Apple menu bar. Click on AppleShare. The name of TS-401T will appear on the right side of the window. - 105 -...
  • Page 106 Use the mouse to highlight TS-401T and click OK. Enter the correct login name and password or use “Guest” to login, and then click Connect. - 106 -...
  • Page 107 All available network shares will be listed. Select a network share and click OK. Close the Chooser program. Double click on the icon on the desktop to access the files. - 107 -...

  • Page 108: By Linux Os

    If you link TS-401T to the Internet and use a public IP address, you can access the files on the server anywhere. For more information, please refer to Appendix A.

  • Page 109: By File Transfer Protocol (Ftp)

    By File Transfer Protocol (FTP) In addition to working with multiple operating systems, TS-401T also supports connection via FTP. Enter the correct user name and password to connect the server or access the public share folders as guest. Please go to Network Settings—FTP service and enable FTP service before using FTP service.
  • Page 110 Click the share folder in FTP section. When the ftp folder is shown, enter user name and password. - 110 -...
  • Page 111 The share folder will be shown. You can then manage the folder by dragging and dropping files to it, as well as rename or delete the files. - 111 -...

  • Page 112: Chapter 8 Netbak Replicator

    NetBak Replicator is a powerful program installed in user’s system (Windows OS only) for data backup. You can back up any files or folders on local PC to specified share folder on TS-401T by LAN or WAN. Main Functions Backup •...
  • Page 113 Installing NetBak Replicator Run Install NetBak Replicator in the CD-ROM. Follow the steps to install NetBak Replicator. Click OK when the following message appears. You can start to use NetBak Replicator immediately. Upon successful installation, a shortcut icon will be shown on the Desktop. - 113 -...
  • Page 114 Using NetBak Replicator 1. Before using NetBak Replicator, please login TS-401T administration and go to Network Share Management to create a share folder for backup. 2. Run NetBak Replicator. Click . All TS-401T and their share folders within the network will be displayed.
  • Page 115 Select a server and a share folder on the right. NetBak Replicator also supports backup via WAN, you can enter the IP address of TS-401T for data backup directly and select a share folder. Then click OK.
  • Page 116 Description of Buttons on NetBak Replicator Open Configuration: Open a previously saved NetBak Replicator configuration. Save Configuration: Save the settings on NetBak Replicator. The file will be named as *.rpr Select All: Select all folders. The column on the left shows all available folders and the right column shows the files in the folders.
  • Page 117 5. You can start the backup procedure upon successful connection to the TS- 401T. • Backup Select files and folders for backup. - 117 -...
  • Page 118 Start When you have selected the files for backup to TS-401T, click Start on NetBak Replicator. The program will start to copy the selected files to the specified share folder on TS-401T. - 118 -...
  • Page 119 File Filter Click File Filter on NetBak Replicator main page to select file format to be skipped from backup. Then click OK. - 119 -...
  • Page 120 Schedule Click Schedule on NetBak Replicator main page. Then check the box “Enable Backup Schedule” and select the frequency and time for backup. Click OK to confirm. - 120 -...
  • Page 121 Monitor Select a folder for monitoring. When this option is enabled, the system will upload all files or folders to the server instantly for backup when the files or folders are modified. Other files will be gray and cannot be selected.
  • Page 122 Initialize Configuration When using this function, NetBak Replicator will record all current settings of the user, including whether or not monitor function is enabled. When the user login again, this program will load the previous recorded settings for users to manage data backup. - 122 -...
  • Page 123 • Restore Please follow the steps below to restore files from TS-401T to your PC. a. Restore to original position: Select the location that the data will be restored to. b. Select new restore position: Click to select the directory to restore data to or select a previously chosen location from the drop-down menu.
  • Page 124 d. Option: Select recovery option and error option. If the restoring file has already existed on the target folder, you can select to: Recover all files Pop up a request dialog Skip this file If an error happens in the process of file restoring, you can select to: Stop the restoring process Pop up a request dialog Skip restoring this file...
  • Page 125 • a. Save As…: To save all logs on NetBak Replicator, click this button. All logs will be saved as text file. b. Clear All: Click this button to clear all logs. c. Option: Select the type of logs to be recorded― “Record all logs” or “Record error logs only”.

  • Page 126: Chapter 9 Ts-401T Maintenance

    Restart/ Shut down Server Follow the steps below to restart or shut down TS-401T. 1. Ask all active users of TS-401T to save their files and disconnect from the server. 2. Enter the administration page and select Restart/ Shutdown in System Tools.

  • Page 127: Reset Administrator Password And Network Settings

    Reset Administrator Password and Network Settings To reset the administrator password and network settings of TS-401T, 1. Press the reset button of TS-401T for a few seconds. A beep sound will be heard. 2. Login TS-401T with the default user name and password:...

  • Page 128: Disk Failure Or Malfunction

    Power Outage or Abnormal Shutdown In case of power outage or improper shutdown of TS-401T, the system will resume to the state before it is shut down. If your server does not function properly after restart, please do the following: 1.

  • Page 129: Appendix A Web File Manager

    Using Web File Manager To use Web File Manager, enable web service in Network Settings first. Launch the web browser and go to TS-401T home page. Select Web File Manager and enter the correct login name and password. You may also enter “guest”...
  • Page 130 Select an existing network share for management. You can organize network share folders of TS-401T. With Web File Manager, you can upload, rename, or delete files and folders in the network shares. View files online Click on a file displayed on the web page. The information of the file will be displayed.
  • Page 131 Rename file or folder Select a file or folder to rename. Click (Rename) on the toolbar. iii. Enter the new file or folder name and click OK. Delete file or folder Select a file or folder to delete. Click (Delete) on the toolbar. iii.
  • Page 132 Viewing Files Named in Chinese To view files named in Chinese, you may have to configure the browser settings. Take Internet Explorer as an example, follow the steps below to configure the settings. 1. Click on Tools in IE browser. 2.
  • Page 133 Web File Manager Icons Icon Description Up-return to the parent folder Refresh-reload the current page Home-return to network share list home page Create folder Rename file or folder Delete file or folder Select all Cancel selection Logout Full access network share folder Read-only network share folder Malfunction network share folder - 133 -...

  • Page 134: Appendix B Configuring Ad Authentication

    Appendix B Configuring AD Authentication AD environment mixed mode can be supported by TS-401T. For example, qatest.com.tw and sub2.qatest.com.tw are domains controlled by Windows 2003 server, and sub1.qatest.com.tw domain is controlled by Windows 2000 server. - 134 -...
  • Page 135 The DNS setting on Windows 2000 server should be added as “Active Directory DNS”, the server should be rebooted after DNS setting is set. 10. You should use the full domain name on the AD setting of TS-401T. For example, if your FQDN name of AD server is “ad.test.com.tw”, you should use “test.com.tw”...
  • Page 136 Adding TS-401T to Windows Server 2003 Active Directory Domain Go to TCP/IP Configuration in Network Settings. Enter the IP address of primary DNS server. You can inquire AD domain via this DNS server. - 136 -...
  • Page 137 Go to Microsoft Networking of Network Settings. Enable AD Domain Member, and enter the domain name and the user name with administrator access right to that domain. Note: a. Make sure that a fully qualified domain name such as qatest.com.tw been filled in.
  • Page 138 When the following message appears after applying the settings in step 2, check the DNS IP. When the following message appears after applying the settings in step 2, domain name, domain user name, and the password. When the following message appears after applying the settings in step 2, check the time zone settings.
  • Page 139 Upon successful adding of domain member, you can view the list for domain users and local users in User Management. Go to Access Control in Network Share Management to configure the access control right of AD users for all available network shares. - 139 -...
  • Page 140 Using AD users to access services To access services like FTP, Network Neighborhood, or Apple Talk with an AD user account, add DomainName\ before the user name when logging in. - 140 -...
  • Page 141 Note: Please notice that TS-401T and Windows 2000/2003 server must be in the same section or the system will show the following error message. Make sure that a domain name such as sub1 has been filled in.
  • Page 142 2. When the following message appears after applying the settings in step 1, check the domain name, domain user name, and the password. When the following message appears after applying the settings in step 2, check the time zone settings. Make sure the difference of your time and that of AD server is less than 5 minutes.
  • Page 143 To access services like FTP, Network Neighborhood, or Apple Talk with an domain user account, add DomainName\ before the user name when logging in. Note: To join AD domain again, set TS-401T as standalone server in Microsoft Networking section. Make sure all domain users are removed in User Management before joining TS-401T to AD domain.

  • Page 144: Appendix C Messages Of Hard Disk And Disk Configuration Status

    QNAP customer service. Invalid Indicates the disk does not have a record on TS-401T The disk is used on TS-401T the first time, or the disk on the same TS-401T model is used. Users can re-configure disk volume.
  • Page 145 RAID configuration by users intentionally or unintentionally. 2. QNAP Systems, Inc. guarantees that all TS-401T (TS-401T) released have passed strict and complete QA test and can operate properly in normal condition.
