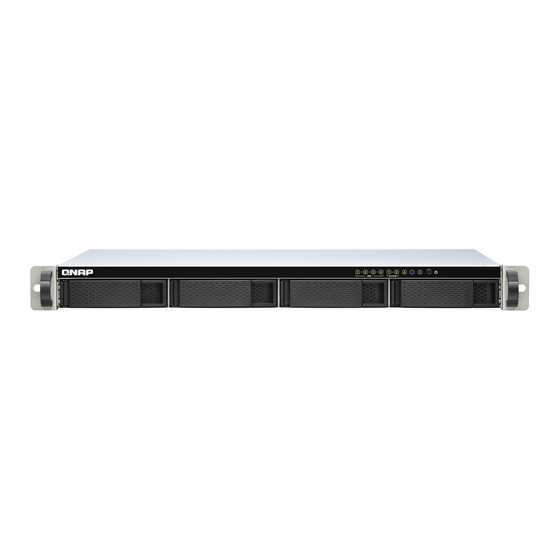

QNAP TS-451DeU User Manual
  1. Manuals
  2. Brands
  3. QNAP Manuals
  4. Network Storage Server
  5. TS-451DeU
  6. User manual

QNAP TS-451DeU User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
TS-451DEU-2G
Document Version: 1
06/05/2020
o cerca il tuo prodotto tra le
migliori offerte di Server
TS-451DeU
User Guide
QNAP

Advertisement

Table of Contents
loading

Related Manuals for QNAP TS-451DeU

Summary of Contents for QNAP TS-451DeU

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per QNAP TS-451DEU-2G o cerca il tuo prodotto tra le migliori offerte di Server TS-451DeU User Guide Document Version: 1 06/05/2020...

  • Page 2: Table Of Contents

    TS-451DeU User Guide Contents 1. Preface About This Guide............................3 Audience...............................3 Document Conventions..........................3 2. Product Overview About the TS-451DeU..........................4 Hardware Specifications..........................4 Package Contents............................6 Components..............................6 Front Panel............................... 6 Rear Panel..............................7 System Board............................7 Drive Numbering............................8 Installation Requirements..........................8 Safety Information............................8...
  • Page 3 7. Notices Limited Warranty............................39 Disclaimer..............................39 GNU Public License............................39 CE Notice..............................47 FCC Notice..............................47 VCCI Notice..............................47 BSMI Notice..............................48 SJ/T 11364-2006............................48...

  • Page 4: Preface

    TS-451DeU User Guide 1. Preface About This Guide This guide provides information on the QNAP TS-451DeU NAS and step-by-step instructions on installing the hardware. It also provides instructions on basic operations and troubleshooting information. Audience This document is intended for consumers and storage administrators. This guide assumes that the user has a basic understanding of storage and backup concepts.

  • Page 5: Product Overview

    8 GB of DDR4 memory. The NAS features two M.2 2280 SATA 6 Gbps SSD slots and provides four hot-swappable SATA 6 Gbps drive bays to support both hard disk drives and solid-state drives. The TS-451DeU also includes two USB 2.0 ports and two USB 3.2 Gen 1 ports. Hardware Specifications Model specifications are subject to change without prior notice.
  • Page 6 Rail compatibility RAIL-B02 Note Rail kits are not included with the NAS and must be purchased separately. For details, contact an authorized reseller or go to http://shop.qnap.com. Others Power supply unit 100W, 100-240V AC, 50/60 Hz System battery CR2032 lithium battery (3V, 225 mAh) Sound level 21.6 dB(A)

  • Page 7: Package Contents

    TS-451DeU User Guide Component TS-451DeU-2G Relative humidity • Non-condensing relative humidity: 5% to 95% • Wet-bulb temperature: 27˚C (80.6˚F) Security slot Kensington security slot Package Contents Item Quantity TS-451DeU Power cord Ethernet cables 2 x CAT5e cables Screws for 3.5-inch drives Screws for 2.5-inch drives...

  • Page 8: Rear Panel

    TS-451DeU User Guide Rear Panel Component Component Reset button Kensington security slot USB 2.0 Type-A ports Power input USB 3.2 Gen 1 Type-A ports System fans 2.5 Gigabit Ethernet ports System Board Note The image does not include the case cover.

  • Page 9: Drive Numbering

    TS-451DeU User Guide Component Component Memory slot 2 M.2 SSD slot 1 Memory slot 1 M.2 SSD slot 2 Drive Numbering Installation Requirements Category Item Environment • Room temperature: 0˚C to 40˚C (32˚F to 104˚F) • Non-condensing relative humidity: 5% to 95% •...

  • Page 10: Setting Up The Nas

    TS-451DeU User Guide General Instructions • The NAS should be stored in a secure location with restricted access, controlled through the use of a tool, lock and key, or any means of security. • Only qualified, skilled, and authorized persons with knowledge of all restrictions, safety precautions, and installation and maintenance procedures should have physical access to the NAS.
  • Page 11 TS-451DeU User Guide 2. Install the NAS on a rack. For details, see Rail Kits Installing Handles. 3. Install the drives. For details, see the following topics: • Installing 3.5-inch Hard Drives on 3.5-inch Trays • Installing 2.5-inch Hard Drives or Solid-State Drives on 3.5-inch Trays •...

  • Page 12: Installation And Configuration

    TS-451DeU User Guide 3. Installation and Configuration This chapter provides specific hardware and firmware installation and configuration steps. Hardware Installation This section provides information on installing drives, memory modules, handles, and adding expansion units. Removing the Case Cover Warning •...

  • Page 13: Attaching The Case Cover

    TS-451DeU User Guide b. Slide the cover back. c. Lift the cover off the NAS. Attaching the Case Cover Warning • Moving fan blades: Keep your hands and other body parts away from moving fan blades. Installation and Configuration...
  • Page 14 TS-451DeU User Guide • Other moving components: Keep your hands and other body parts away from other moving components. 1. Place the cover on the NAS. 2. Slide the cover forward. 3. Tighten the screws. 4. Connect all cables and external attachments.

  • Page 15: Drive Installation

    TS-451DeU User Guide 6. Power on the NAS. Drive Installation The TS-451DeU is compatible with 3.5-inch and 2.5-inch hard drives, 2.5-inch solid-state drives, and M.2 solid-state drives. Installing 3.5-inch Hard Drives on 3.5-inch Trays For the list of compatible drive models, go to https://www.qnap.com/compatibility.
  • Page 16 TS-451DeU User Guide 3. Install a drive on the tray. a. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray. b. Attach the screws.
  • Page 17 Lock the tray. 5. Power on the NAS. Installing 2.5-inch Hard Drives or Solid-State Drives on 3.5-inch Trays For the list of compatible drive models, go to https://www.qnap.com/compatibility. Warning • Installing a drive deletes all data on the drive.
  • Page 18 TS-451DeU User Guide 2. Remove the drive tray. a. Pull the tray handle outward. b. Pull the tray out. 3. Install a drive on the tray. a. Place the tray on the drive so that the holes on the tray are aligned with those on the drive.
  • Page 19 TS-451DeU User Guide 4. Load the tray into the bay. a. Insert the tray into the bay. b. Slide the tray into the bay. c. Push the handle. d. Lock the tray. Installation and Configuration...
  • Page 20 Note • QNAP recommend installing heatsinks on the M.2 SSD controllers to enhance cooling efficiency and to ensure consistent performance. • Before installing non-QNAP heatsinks, ensure that they are of the appropriate size and shape. Installation and Configuration...
  • Page 21 TS-451DeU User Guide 1. Power off the NAS. 2. Disconnect the power cord from the electrical outlet. 3. Disconnect all cables and external attachments. 4. Remove the case cover. For details, see Removing the Case Cover. 5. Install a heatsink on the M.2 SSD controller.
  • Page 22 TS-451DeU User Guide 6. Install the M.2 SSD. a. Pull out the pushpin. b. Insert the M.2 SSD. Installation and Configuration...
  • Page 23 TS-451DeU User Guide c. Insert the pushpin to secure the drive. 7. Place the NAS in its normal position. 8. Attach the case cover. For details, see Attaching the Case Cover. 9. Connect all cables and external attachments. 10. Connect the power cord to the electrical outlet.

  • Page 24: Replacing Memory Modules

    TS-451DeU User Guide Replacing Memory Modules The TS-451DeU has two memory slots. You can increase the memory capacity of the NAS by upgrading the memory modules. Use only QNAP memory modules to maintain system performance and stability. You can purchase QNAP memory modules from authorized resellers.
  • Page 25 TS-451DeU User Guide b. Verify that the module has tilted upward and is completely released from the slot. Warning Attempting to remove a module that is not completely released may damage the module and the motherboard. c. Hold the module by the edges.

  • Page 26: Connecting Usb Expansion Units

    Check the value for Total memory. Connecting USB Expansion Units The TS-451DeU supports USB expansion units. For details, please see table below. You can purchase storage expansion accessories from QNAP or an authorized reseller. For details, go to https://shop.qnap.com/.

  • Page 27: Installing Handles

    TS-451DeU User Guide The TS-451DeU supports connecting a maximum of two USB expansion units. You can use any of the following configurations: Expansion Unit Type Number of Units Supported TR-004 TL-R1200C-RP 1. Connect the expansion unit to the NAS. a. Connect the USB cable to the USB Type-C port on the expansion unit.
  • Page 28 TS-451DeU User Guide 3. Install the angle bracket on the NAS. a. Align the holes on the angle bracket with the holes on the chassis. Note Ensure that the handle faces the same direction as the front panel. b. Attach the screws.

  • Page 29: Rail Kits

    Rail kits are not included with the NAS and must be purchased separately. For details, contact an authorized reseller or go to http://shop.qnap.com. You can find installation information in the rail kit package. QTS Installation The TS-451DeU uses the QNAP QTS operating system. You can install QTS using any of the following methods. Method Description...

  • Page 30: Installing Qts Using The Cloud Key

    ASCII characters. 7. Click Next. 8. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 9. Click Next. 10. Select Obtain an IP address automatically (DHCP).
  • Page 31 ASCII characters. 10. Click Next. 11. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 12. Click Next. 13. Select Obtain an IP address automatically (DHCP).
  • Page 32 TS-451DeU User Guide Warning Clicking Confirm deletes all data on the drive before installing QTS. 19. Click Confirm. QTS is installed. Installation and Configuration...

  • Page 33: Basic Operations

    TS-451DeU User Guide 4. Basic Operations This chapter describes basic NAS operations. Power Button Operation User Action Result Power on Press the button once. The NAS powers on. Power off Press and hold the button for 1.5 The NAS powers off.

  • Page 34: Leds

    TS-451DeU User Guide LEDs LEDs indicate system status and related information when the device is powered on. The following LED information applies only when the drive is correctly installed and when the device is connected to the network or to a host.
  • Page 35 TS-451DeU User Guide Status Description System Status Flashes green and red • The drive is being formatted. alternately every 0.5 • The device is being initialized. seconds • The operating system is being updated. • RAID rebuilding is in progress.

  • Page 36: Audio Alert

    The data is being accessed. Green The drive can be accessed. No drive is detected. USB Expansion Blue A QNAP USB external storage device is connected to a Unit USB port. No USB external storage devices connected. Audio Alert Duration...

  • Page 37: Troubleshooting

    TS-451DeU User Guide 5. Troubleshooting This chapter describes basic troubleshooting information. Forcing Qfinder Pro or myQNAPcloud to Locate the NAS If Qfinder Pro or myQNAPcloud is unable to locate the NAS during QTS installation, the drives or data may be faulty.

  • Page 38: Support And Other Resources

    Disk Volume RAID Recovery Support Maximum Number of Removed Drives RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 Support and Other Resources QNAP provides the following resources: Resource Documentation https://docs.qnap.com Service Portal https://service.qnap.com Downloads https://download.qnap.com Community Forum https://forum.qnap.com...

  • Page 39: Glossary

    Provides various remote access services such as DDNS and myQNAPcloud Link myQNAPcloud ID Email address that was used to register for a myQNAPcloud account Qfinder Pro QNAP utility that lets you locate and access QNAP NAS devices in your local area network QNAP NAS operating system Glossary...

  • Page 40: Notices

    No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.
  • Page 41 TS-451DeU User Guide Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are...
  • Page 42 TS-451DeU User Guide tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.
  • Page 43 TS-451DeU User Guide You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code;...
  • Page 44 TS-451DeU User Guide the object code. If the place to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source.
  • Page 45 TS-451DeU User Guide a. Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or b. Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or c.
  • Page 46 TS-451DeU User Guide An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also...
  • Page 47 TS-451DeU User Guide If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all.

  • Page 48: Ce Notice

    Important Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment. VCCI Notice この装置は、クラス...

  • Page 49: Bsmi Notice

    TS-451DeU User Guide BSMI Notice 警告使用者：這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在 這種情況下，使用者會被要求採取某些適當的對策。 SJ/T 11364-2006 本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品 可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 0 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。...
