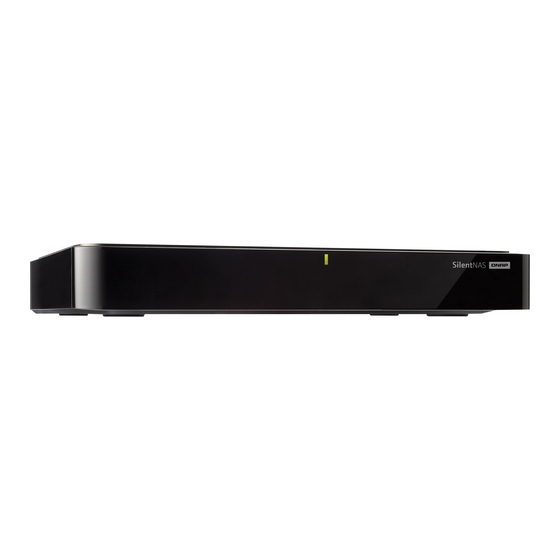

QNAP Turbo NAS HS-210 Hardware User Manual
  1. Manuals
  2. Brands
  3. QNAP Manuals
  4. Network Storage Server
  5. Turbo NAS HS-210
  6. Hardware user manual

QNAP Turbo NAS HS-210 Hardware User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

QNAP Turbo NAS
Hardware User Manual
© 2015. QNAP Systems, Inc. All Rights Reserved.
2015/02/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turbo NAS HS-210 and is the answer not in the manual?

Questions and answers

Related Manuals for QNAP Turbo NAS HS-210

Summary of Contents for QNAP Turbo NAS HS-210

  • Page 1 QNAP Turbo NAS Hardware User Manual © 2015. QNAP Systems, Inc. All Rights Reserved. 2015/02/11...
  • Page 2 Thank you for choosing QNAP products! This user manual provides description of the hardware of the Turbo NAS and relevant guideline of certain functions. Please read carefully and strictly adhere to the instructions of the manual. This user manual is applicable to the following Turbo NAS models:...
  • Page 3 DISCLAIMER In no event shall QNAP Systems, Inc. (QNAP) liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. QNAP makes no warranty...
  • Page 4 Regulatory Notice FCC Notice QNAP NAS comply with different FCC compliance classes. Please refer the Appendix for details. Once the class of the device is determined, refer to the following corresponding statement. ======================================================= FCC Class A Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
  • Page 5 Modifications: Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment. CE NOTICE QNAP NAS comply with different CE compliance classes. Please refer to the Appendix for details.
  • Page 6 Symbols in this document This icon indicates the instructions must be strictly followed. Failure to do so could result in injury to human body or death. Warning This icon indicates the action may lead to disk clearance or loss OR failure to follow the instructions could result in data damage, disk Caution damage, or product damage.

  • Page 7: Table Of Contents

    Chapter 3. USB One Touch Copy ..............24 Chapter 4. LED and Alarm Buzzer Specifications ........... 26 Chapter 5. Upgrade Memory on QNAP Turbo NAS (RAM Module Installation) 29 TS-451S, TS-651, TS-851, TS- 53S P , TVS- (2/4/6/8- ) ... 29...

  • Page 8: Safety Warnings

    Safety Warnings The NAS can operate normally in the temperature of 0ºC–40ºC and relative humidity of 0%–95%. Please make sure the environment is well-ventilated. The power cord and devices connected to the NAS must provide correct supply voltage (100W, 90–264V). Do not place the NAS in direct sunlight or near chemicals.

  • Page 9: Chapter 1. Cpu And Memory Specifications

    Caution: Modifying the hardware, software, or firmware of the QNAP products will void the warranty. QNAP is not responsible for any form of damage or loss of data caused by modding the QNAP products. Users should bear their own risks of all sorts of possible data loss or system instabilities due to changing the hardware parts, modifying the default system firmware or installing any unauthorized third party applications on QNAP products.
  • Page 10 TS-231+ TS-431+ System Dual-core ARM™ Dual-core ARM™ Cortex™ -A15 1.4GHz Cortex™ -A15 1.4GHz 1GB DDR3 1GB DDR3 Memory 512MB 512MB Flash Memory replaceable Number of SODIMM slots Number of hard drive slots System HS-210 ARM 1.6GHz Memory 512MB DDR3 Flash 16MB Memory replaceable Number of SODIMM...
  • Page 11 System TS-879 Pro TS-1079 Pro TS-879U-RP ® ® ® Dual-core Intel Core™ Dual-core Intel Core™ Dual-core Intel Core™ i3 3.30 GHz i3 3.30 GHz i3 3.30 GHz Memory 2GB DDR3 RAM 2GB DDR3 RAM 4GB DDR3 RAM Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM) Memory replaceable...
  • Page 12 System TS-1679U-RP TS-EC1679U-RP ® ® Dual-core Intel Core™ Quad-core Intel i3 3.30 GHz Xeon™ 3.20 GHz Memory 4GB DDR3 RAM 4GB DDR3 ECC RAM Flash 512MB (USB DOM) 512MB (USB DOM) Memory replaceable Number of LONG-DIMM slot Number of hard drive slots Number of expansion slots...
  • Page 13 System TS-853U TS-853U-RP ® ® Quad-core Intel Quad-core Intel Celeron™ 2.0 GHz (up Celeron™ 2.0 GHz (up to 2.41GHz) to 2.41GHz) 4GB/8GB DDR3 4GB/8GB DDR3 Memory (Expandable RAM, up to (Expandable RAM, up to 8GB) 8GB) Flash 512MB (USB DOM) 512MB (USB DOM) Yes (Compatible with Yes (Compatible with...
  • Page 14 System TS-470U-SP TS-470U-RP ® ® Dual-core Intel Dual-core Intel Celeron™ 2.7 GHz Celeron™ 2.7 GHz Memory 2GB DDR3 2GB DDR3 Flash 512MB 512MB Yes (Compatible with Yes (Compatible with Memory replaceable DDR3-1333 RAM) DDR3-1333 RAM) Number of SODIMM slots Number of hard drive slots 250W (Upgradeable to Power supply unit...
  • Page 15 Memory (Expandable RAM, up to 8GB) 512MB Flash 512MB Yes (DDR3L-1333 Memory replaceable SODIMM RAM) Number of SODIMM slots Number of hard drive 2 (3.5” HDDs only) slots Yes (QNAP remote Yes (QNAP remote IR sensor control: RM-IR002) control: RM-IR002)
  • Page 16 Yes (DDR3L-1333 Memory replaceable SODIMM RAM) SODIMM RAM) Number of SODIMM slots Number of hard drive 4 (2.5” only) slots Yes (QNAP remote Yes (QNAP remote IR sensor control: RM-IR002) control: RM-IR002) System TS-651 / TS-651-4G TS-851 / TS-851-4G ®...
  • Page 17 1GB / 2GB DDR3L Flash 512MB CPU replaceable Memory replaceable Number of SODIMM slots Number of hard drive slots Yes (QNAP remote IR sensor control: RM-IR002) TS-253 Pro / TS-453mini-2G / TS-453 Pro / System TS-253 Pro-8G TS-453mini-8G TS-453 Pro-8G ®...
  • Page 18 (Expandable RAM, up to 8GB) 8GB) Flash 512MB 512MB Yes (DDR3L-1333 Yes (DDR3L-1333 Memory replaceable SODIMM DRAM) SODIMM DRAM) Number of SODIMM slots Number of hard drive slots LCD panel Yes (QNAP remote Yes (QNAP remote IR sensor control: RM-IR002) control: RM-IR002)
  • Page 19 512MB Yes (DDR3L-1333 Yes (DDR3L-1333 Memory replaceable SODIMM DRAM) SODIMM DRAM) Number of SODIMM slots Number of hard drive 4 (2.5” only) 8 (2.5” only) slots LCD panel Yes (QNAP remote Yes (QNAP remote IR sensor control: RM-IR002) control: RM-IR002)
  • Page 20 512MB Yes (Compatible with Yes (Compatible with Memory replaceable DDR3L-1600 RAM) DDR3L-1600 RAM) Number of SODIMM slots Number of hard drive slots PCI-E expansion slot 1 LCD panel Yes (QNAP remote Yes (QNAP remote IR sensor control: RM-IR002) control: RM-IR002)
  • Page 21 Yes (Compatible with Memory replaceable DDR3L-1600 RAM) DDR3L-1600 RAM) Number of SODIMM slots Number of hard drive slots 1 (Pre-installed 1-port PCI-E expansion slot 1 10GbE NIC) LCD panel Yes (QNAP remote Yes (QNAP remote IR sensor control: RM-IR002) control: RM-IR002)

  • Page 23: Chapter 2. Power Button And Reset Button Behavior

     *This feature is only provided by the NAS models with LCD panels. Please visit http://www.qnap.com for details. Advanced system reset (10 sec) Press the reset button for 10 seconds; you will hear two beeps at the third and the tenth seconds.

  • Page 24: Chapter 3. Usb One Touch Copy

    This feature adopts incremental backup. After the first time data backup, the NAS only  copies the changed files since the last backup. This feature is only available on certain NAS models. Please refer to the product  specification table for details at www.qnap.com.

  • Page 26: Chapter 4. Led And Alarm Buzzer Specifications

    A hard disk drive is not formatted. Flashes green every 2 The NAS is in S3 sleep mode seconds Green The NAS is ready. This feature is only available on certain NAS models. Please refer to the product specification table for details at www.qnap.com.
  • Page 27 The 10 GbE network expansion function is only supported by the TVS-463, TVS-663, TVS-863/863+, TS-879 Pro, TS-1079 Pro, TS-879U-RP, TS-1279U-RP, TS-EC879U-RP, TS-EC1279U-RP, TS-1679U-RP, TS-EC1679U-RP, TS-870U-RP, and TS-1270U-RP. This feature is only available on certain NAS models. Please refer to the product specification table for details at www.qnap.com.
  • Page 28 Beep alarm (for all NAS models) The beep alarm can be disabled in “System Administration” > “Hardware Settings”. Beep sound Number of Times Description The NAS is starting up. The NAS is being shut down (software shutdown). Short beep (0.5 sec) The user presses the reset button to reset the NAS.

  • Page 29: Chapter 5. Upgrade Memory On Qnap Turbo Nas (Ram Module Installation)

    The crocodile clip should be connected to the ground. QNAP provides different RAM modules (optional purchase) for users to upgrade the memory of Turbo NAS. Follow the steps below to install an extra memory module on the NAS to upgrade the memory.
  • Page 30 Use a flathead screwdriver to loosen the screw on the memory module compartment at the bottom of the NAS and lift the compartment cover away. To remove installed memory modules, pull the retention clips on each side so that the module tilts up for easy removal.

  • Page 31: Ts-451S, Ts-651, Ts-851, Ts- X 53/ X 53S Pro , Tvs- X 63 Series (2/4/6/8- Bay )

    Note: Always ensure that a memory module is installed in the Primary (red) slot. If not, then the system will fail to start. When installing two memory modules, please ensure that they are the same size and ideally use the same type/model for both slots. Slide the memory module to the slot at a 45-degree angle (approximately) and press the memory module down until it clips into place.
  • Page 32 Loosen the three screws on the rear of the NAS. Remove the case cover of the NAS gently. Locate the memory slot. Make sure the slot is empty. Note: For TS-x53/x53S Pro, TS-451S, TS-651 and TS-851 models, always ensure that a memory module is installed in the Primary slot (red). If not, then the system will fail to start.

  • Page 33: Ts-451U, Ts-X53U Series (4/8/12-Bay)

    Grasp the edge of the memory module. Align the notch on the gold edge of the module with the notch in the memory slot. Slide the memory module to the slot at a 45-degree angle (approximately). Gently press the memory module into the slot until it is seated fully. Rotate the memory module towards the motherboard until the securing clips clicks into place.
  • Page 34 a. TS-451U and TS-453U: Loosen the six screws on the top of the NAS. b. TS-853U, TS-1253U: Loosen the two screws on the rear of the NAS. Open the NAS.
  • Page 35 Slide the memory module to the slot at a 45-degree angle (approximately). Press the memory module down while holding the clips open. Make sure the memory module sits in properly with the clips in place.

  • Page 36: Ts-879U-Rp, Ts-1279U-Rp, Ts-Ec879U-Rp, Ts-Ec1279U-Rp, Ts-1679U-Rp, Ts-Ec1679U-Rp, Ts-870U-Rp, Ts-1270U-Rp

    Note: For TS-x53U & TS-451U models, always ensure that a memory module is installed in the primary slot (red box in the below figure,) or the system will fail to start. When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
  • Page 37 QNAP provides a 4GB DDR3* RAM module and a 4GB DDR3 ECC** RAM module (optional purchase) for users to upgrade the memory of the NAS. Insert an extra RAM module on the motherboard of the NAS to upgrade the memory. The total memory will be shown in “System Information”...
  • Page 38 2. Hold the notch at the edge of the top cover. Remove the top cover in both hands. 3. Release the ejector clips gently by pulling them out of the sides of the RAM slot. 4. Grasp the edge of the RAM module. Align the notch on the gold edge of the RAM module with the notch in the RAM slot.

  • Page 39: Ts-251, Ts-451

    TS-251, TS-451 1. Remove the screws on the rear (top and bottom) of the NAS. If you have a 2-bay NAS, it will have two screws. A 4-bay NAS will have four. 2. Gently remove the case cover of the NAS by sliding it apart (see the underside of the NAS for visual indicators of the NAS case being locked/unlocked)
  • Page 40 3. Remove the four inner screws (two on each side) of the hard drive cage. 4. If it is a 4-bay NAS, you will also need to remove two screws on the top of the hard drive cage. 5. Gently remove the hard drive cage from the NAS by lifting it out of its slot. 6.
  • Page 41 ensure that they are the same size and ideally use the same type of RAM for both memory slots. The maximum supported memory is 8GB combined. 7. Reattach the hard drive cage to the NAS. Please ensure that it correctly plugs into the slot.
  • Page 42 11. Connect the power adaptor and cables back to the NAS. 12. To check that the memory module is recognized by the NAS, power up the NAS and login the web interface as an administrator. Go to “System Status” > “System Information”...

  • Page 43: Chapter 6. Network Expansion Card Installation

    Chapter 6. Network Expansion Card Installation Warning: The following instructions should only be performed by an authorized and trained  technician. Strictly adhere to the instructions to install a network expansion card on the NAS.  Failure to do so could result in injury to human body or death. The TVS-x63 and TS-x79 Pro series provides expansion slots for network expansion.
  • Page 44 Network Expansion Card Compatibility ® Bracket A (X520-T2) Intel Ethernet Server Adapter X520-T2 (E10G42B) ® Bracket B 1. Intel Ethernet Server Adapter X520-SR2 (E10G42BFSR) ® (X520-SR2/X520-DA2) 2. Intel Ethernet Server Adapter X520-DA2 (E10G42BTDA) Bracket C (Emulex) 1. Emulex OneConnect 10GbE Network Adapters, SFP+ Direct attach copper (OCe11102-NX) 2.
  • Page 45 4. Remove the case cover of the NAS gently. For TVS-463 only: Unscrew and remove the power supply unit.
  • Page 46 5. Loosen the screws and remove the expansion slot cover. 6. Grasp the edge of the network expansion card. Align the notch on the gold edge of the card with the notch in the PCIe slot. Insert the network expansion card to the PCIe slot until it cannot go any further.

  • Page 47: Ts-879U-Rp, Ts-Ec879U-Rp, Ts-1279U-Rp, Ts-Ec1279U-Rp, Ts-1679U-Rp, Ts-Ec1679U-Rp

    7. Fasten the screws. 8. Close the case cover and fasten the screws. Connect the power adaptor and cables to the NAS. 9. To check that the network expansion is recognized by the NAS, power up the NAS and login the web interface as an administrator. Go to “System Administration” > “Network” >...
  • Page 48 Hold the notch at the edge of the top cover. Remove the top cover in both hands. Loosen the 4 screws as shown in the illustration. Grasp the metal edge of the riser card module. Remove the module gently.
  • Page 49 Loosen the screw and remove the expansion slot cover. Insert the network expansion card to the PCIe slot until it cannot go any further. Then fasten the screw.
  • Page 50 Grasp the metal edge of the riser card module. Align the notch on the gold edge of the riser card with the notch in the PCIe slot. Insert the riser card module to the PCIe slot until it cannot go any further. 10.

  • Page 51: Ts-870U-Rp, Ts-1270U-Rp

    TS-870U-RP, TS-1270U-RP Turn off the NAS. Disconnect the power adaptor, network cable(s), and any other connectors or cables from the NAS. Before installing the network expansion card, put on an antistatic wrist strap to prevent electrostatic discharge. The crocodile clip should be connected to the ground. Loosen the two screws on the rear of the NAS.
  • Page 52 Grasp the edge of the expansion card. Align the notch on the gold edge of the card with the notch in the PCIe slot. Insert the network expansion card to the PCIe slot until it cannot go any further. Fasten the screws. Close the case cover and fasten the screws.

  • Page 53: Chapter 7. Install And Hot-Swap Hard Drives

    Chapter 7. Install and Hot-swap Hard Drives Caution: Before starting, please ensure that you turn off the NAS, disconnect the power  adaptor, network cable(s), and also remove any other device/cable that is attached to the NAS. Please ensure that you wear an antistatic wrist strap during the entire process to ...
  • Page 54 a. For 3.5” HDDs, remove both brackets (pinch the end marked “pull” to pull and separate the bracket) from the tray. Place the hard drive on the tray and clip-in both brackets. b. For 2.5” HDDs/SSDs, secure the three screws in the back of the hard drive tray.
  • Page 55 3. Insert the hard drive tray into the Turbo NAS all the way to the bottom and close the case cover.
  • Page 56 TS-112P, TS-212P and TS-251C 1. Loosen the screws on the rear (top and bottom) of the NAS. Remove the case cover of the NAS by sliding it apart (see the underside of the NAS for visual indicators of the NAS case being locked/unlocked.) 2.
  • Page 57 and slide it forward to look it into the connector. Place the second hard drive on top of the first hard drive and secure the screws on the slides of both hard drives. Connect the SATA cable and power cable to the connectors as shown in the picture.

  • Page 58: Hard-Swap Hard Drives

    Hard-swap Hard Drives The QNAP NAS is compatible with 2.5-inch/3.5-inch SATA hard disk drives from major hard disk brands. For the updated hard drive compatibility list, please visit http://www.qnap.com. Caution: QNAP disclaims any responsibility for product damage/malfunction or data ...
  • Page 59 System Supports Supports Supports Supports 3.5-inch 2.5-inch Hot-swapping SATA Hard SATA Hard Hard Drives Drives Drives (RAID 1 or above only) TS-1253U, TS-1253U-RP, TS-870U-RP, TS-1270U-RP, TS-470/470 Pro, TS-670/670 Pro, TS-870/870 Pro, TVS-463, TVS-663, TVS-863, TVS-863+ TS-451S, TS-453S Pro, TS-853S Pro, IS-400 Pro The NAS supports hot-swapping the hard drives when 1 member drive crashes in RAID 1, 1–2 member drives crash in RAID 5 or RAID 6.

  • Page 60: Chapter 8. Raid Recovery

    Chapter 8. RAID Recovery The QNAP NAS supports exclusive RAID recovery technology to recover a failed RAID disk volume from unintentional disconnection or removal of the hard drives from the system. Using the RAID recovery, users can recover an inactive RAID 1, RAID 5, or RAID 6 volume to degraded mode, or an inactive RAID 0 and JBOD configuration to normal.
  • Page 61 Standard QNAP RAID 5 Standard QNAP RAID 6 RAID 5 RAID 6 Degraded mode N-1 & N-2 N-1 & N-2 Read only protection N-1, bad blocks N-2, bad blocks (for immediate data found in the found in the backup & hard drive...

  • Page 62: Chapter 9. Use The Lcd Panel

    Chapter 9. Use the LCD Panel This feature is only provided by the NAS models with LCD panels. Please visit http://www.qnap.com for details. The NAS provides a handy LCD panel for users to perform disk configuration and view the system information.
  • Page 63 When RAID 1, RAID 5, or RAID 6 configuration is executed, the system will initialize the hard drives, create the RAID device, format the RAID device, and mount it as a volume on the NAS. The progress will be shown on the LCD panel. When it reaches 100%, the RAID volume can be accessed.
  • Page 64 View system information by the LCD panel When the LCD panel shows the server name and IP address, press the “Enter” button to enter the Main Menu. The Main Menu consists of the following items: 1. TCP/IP 2. Physical disk 3.
  • Page 65 Volume This section shows the disk configuration of the NAS. The first line shows the RAID configuration and storage capacity; the second line shows the member drive number of the configuration. R A I D 5 7 5 0 G B D r i v e 1 2 3 4 If there is more than one volume, press the “Select”...
  • Page 66 Password The default password of the LCD panel is blank. Enter this option to change the password of the LCD panel. Select “Yes” to continue. C h a n g e P a s s w o r d Y e s →...

  • Page 67: Chapter 10. Install Power Supply Unit

    Chapter 10. Install Power Supply Unit Note: This section applies to rackmount NAS models only.  The power supply units of TS-879U-RP and TS-EC879U-RP should only be replaced by  an authorized and trained technician. 10.1 1U Turbo NAS Note: The following instructions should only be performed by an authorized and trained technician.

  • Page 68: Ts-470U-Rp/Sp

    4. Fasten the screw tightly. 5. Turn on the NAS. Note: To replace a failed power supply unit, turn off the NAS. Then remove the failed unit safely and repeat steps 3-5 above to install a new power supply unit. 10.2 TS-470U-RP/SP Note: The following instructions should only be performed by an authorized and trained...

  • Page 69: 3U Turbo Nas (Ts-853U-Rp, Ts-1253U-Rp, Ts-1279U-Rp, Ts-Ec1279U-Rp, Ts-1679U-Rp, And Ts-Ec1679U-Rp Only)

    Insert a new power supply unit and push it to the end. Turn on the NAS. Warning: The NAS supports replacing the redundant power supply unit without turning off the server when redundant power supply mode is enabled. However, users are strongly recommended to turn OFF the NAS before replacing the power supply unit to reduce the risk of electric shock.
  • Page 70 2. Hold the black handler and press and hold the green button firmly. 3. Unplug the failed power supply.
  • Page 71 4. Plug in a new power supply to the NAS. 5. Turn on the NAS. Enable warning alert for redundant power supply on the web-based interface: If two power supply units (PSU) have been installed on the NAS and connected to the power sockets, both PSU will supply the power to the NAS (applied to 1U and 2U models).
  • Page 72 WARNING: RISK OF ELECTRIC SHOCK The connectors on the back panel (bracketed parts below) contain high voltage. Do NOT touch these parts to avoid the risk of electric shock to the maintenance operator.

  • Page 73: Technical Support

    Technical Support QNAP provides dedicated online support and customer service via instant messenger. Online Support: http://helpdesk.qnap.com/ Forum: http://forum.qnap.com Technical Support in the USA and Canada: Email: q_supportus@qnap.com TEL: +1-909-595-2782 #3 Address: 168 University Parkway, Pomona CA 91768 Service Hours: 06:00-18:00 (GMT- 08:00 Pacific Time, Monday to Friday)

  • Page 74: Gnu General Public License

    GNU GENERAL PUBLIC LICENSE Version 3, 29 June 2007 Copyright © 2007 Free Software Foundation, Inc. <http://fsf.org/> Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The GNU General Public License is a free, copyleft license for software and other kinds of works.
  • Page 75 For the developers' and authors' protection, the GPL clearly explains that there is no warranty for this free software. For both users' and authors' sake, the GPL requires that modified versions be marked as changed, so that their problems will not be attributed erroneously to authors of previous versions.
  • Page 76 To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.
  • Page 77 the work, including scripts to control those activities. However, it does not include the work's System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data...
  • Page 78 When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures.
  • Page 79 to form a larger program, in or on a volume of a storage or distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.
  • Page 80 Corresponding Source as a System Library, need not be included in conveying the object code work. A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling.
  • Page 81 section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying. 7. Additional Terms. “Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions.
  • Page 82 meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.
  • Page 83 Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.
  • Page 84 License. Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version. In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement).
  • Page 85 contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007. Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.
  • Page 86 Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program. Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

  • Page 87: Appendix A: Product Compliance Class

    Appendix A: Product Compliance Class NAS Models TS-EC1679U-RP, TS-EC1279U-RP, TS-EC879U-RP, TS-1679U-RP, TS-1279U-RP, TS-1270U-RP, TS-1253U-RP, Class A Class A TS-1253U, TS-879U-RP, TS-870U-RP, TS-853U-RP, TS-453U-RP, TS-1079 Pro, TS-879 Pro, TS-853U, TS-453U, TS-451U, TVS-871U-RP, TVS-1271U-RP TS-853S Pro, TS-453S Pro, TS-870 Pro, TS-853 Pro, TS-670 Pro, TS-653 Pro, TS-470 Pro, TS-453 Pro, TS-253 Pro, TS-431+, TS-231+, TS-451S, TS-870, TS-851, Class B...
