PRACTICAL USER'S GUIDE
DIMPLEX ELECTRIC FIREPLACE
Valued Customer,
We are pleased that you have chosen to purchase an electric fireplace
manufactured by Dimplex North America Ltd.
Over the years, valuable memories will occur around the warmth and
comfort of your hearth. Thank you for allowing our product to be the
backdrop for those special moments.
FOR THE
Quality checked by:
7203810100 REV08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF2603 and is the answer not in the manual?

Questions and answers

Shane Burhans
March 4, 2025

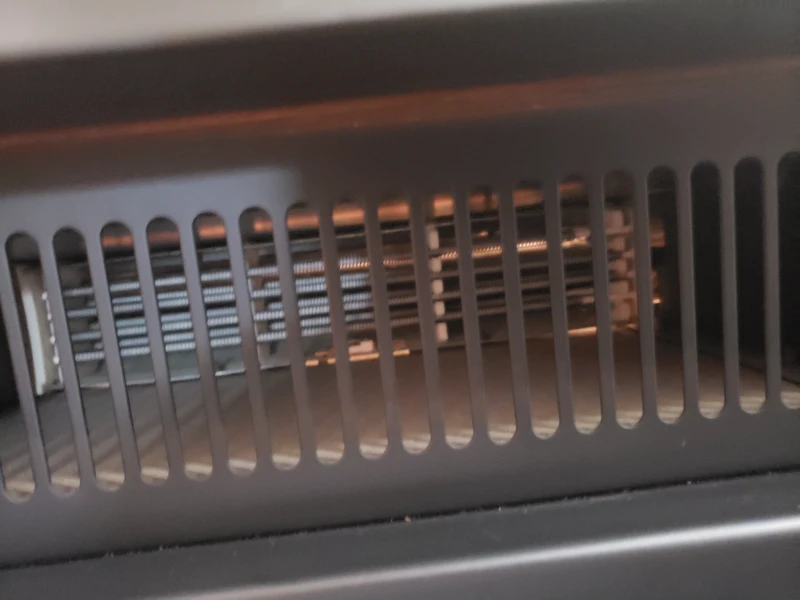

Heating element won't heat up, how do I fix it?

User image 67c738e3694ea
0
1 comments:
Mr. Anderson
March 4, 2025

If the heating element on a Dimplex DF2603 won't heat up, follow these steps:

1. Check for Loose Wiring – Trace the wiring in the unit to ensure all connections are secure (refer to Page 7 of the manual).
2. Inspect the Heater On/Off Switch – A defective switch could prevent the heater from working. If faulty, replace the heater on/off switch (refer to Page 14).
3. Examine the Heater Assembly – If the heater assembly is defective, replace it (refer to Page 17).
4. Ensure Thermal Cut-Out is Not Tripped – If the thermal cut-out has tripped, unplug the unit and discontinue use. Replace the heater assembly if necessary.

Always unplug the unit before performing any maintenance.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Dimplex DF2603

Summary of Contents for Dimplex DF2603

  • Page 1 Valued Customer, We are pleased that you have chosen to purchase an electric fireplace manufactured by Dimplex North America Ltd. Over the years, valuable memories will occur around the warmth and comfort of your hearth. Thank you for allowing our product to be the backdrop for those special moments.
  • Page 2 QUICK REFERENCE GUIDE FOR THE DIMPLEX ELECTRIC FIREPLACE 1) Prior to installation, plug your unit into a convenient outlet to verify the following: • Are the circuit breakers for the outlet on? • Is the Flame Brightness Control turned fully to the right? •...

  • Page 3: Table Of Contents

    CONTENTS PAGE IMPORTANT INSTRUCTIONS SITE SELECTION AND PREPARATION FIREPLACE INSERT INSTALLATION OPERATION MAINTENANCE WARRANTY/ACCESSORIES...

  • Page 4: Important Instructions

    IMPORTANT INSTRUCTIONS SAVE THESE INSTRUCTIONS PLEASE RETAIN THIS USER'S GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using the electric fireplace. 2.

  • Page 5: Site Selection And Preparation

    Fireplace into: Existing Fireplace New Wall Construction Dimplex Mantel Surround Kit or custom made mantel surround • The Fireplace Insert comes completely assembled and wired. Some tools may be required to prepare the site and assemble/install the trim.
  • Page 6 26 1/2” 12” FIGURE 4 CORD FIGURE 5 A 15 Amp, 120 Volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular basis when the heater is operating.

  • Page 7: For Bathroom Use

    FOR BATHROOM USE Must be protected by a GFI receptacle or circuit if receptacle is used it must be readily accessible. To prevent electrical shock this unit is an electrical appliance that is not watertight and must be installed as to prevent water from entering unit. This must be installed away from showers, tubs, etc.

  • Page 8: Fireplace Insert Installation

    Construction and Electrical Outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electric shock and injury to persons. Dimplex Mantel Surround Kit or custom made mantel surround: 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic.

  • Page 9: Operation

    OPERATION SHIMS FIGURE 7 FIGURE 8 FIGURE 9 · Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure that the power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire, electric shock or injury to persons.

  • Page 10: Maintenance

    MAINTENANCE REMOVING GLASS REPLACING GLASS RETAINING CLIP HOLDING GLASS FIGURE 10 (a,b,c) D. HEATER ON/OFF SWITCH The heater on/off switch supplies power to the heating unit when main on/off switch (A) is on. E. HEATER THERMOSTAT CONTROL To adjust the temperature to your individual requirements, turn the thermostat control clockwise all the way to turn on the heater.
  • Page 11 FIGURE 11 An example of a safe storage place BACK LEDGE REAR TAB SIDE SECTION FIGURE 12 FIGURE 13 · To open the light bulb area 1. Remove trim by pulling straight forward. 2. Hold glass in place while removing retaining clip as shown in FIGURE 10 (a,b,c).
  • Page 12 FIGURE 14 · To replace the top light bulbs which illuminate the log exterior: Bulb Requirements: Quantity of 2 clear chandelier or candleabra bulbs with an E-12 (small) screw base. Please refer to the label adjacent to the upper lights for the correct wattage for your model.

  • Page 13: Two Year Limited Warranty

    What this limited warranty does not cover This limited warranty does not apply to products that have been repaired (except by Dimplex or its authorized service representatives) or otherwise altered. This limited warranty does further not apply to defects resulting from misuse, abuse, accident, neglect, incorrect installation, improper...
  • Page 14 Dimplex will in its sole discretion either repair or replace such defective product or part without charge. If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
