PRACTICAL USER'S GUIDE
FOR THE DIMPLEX

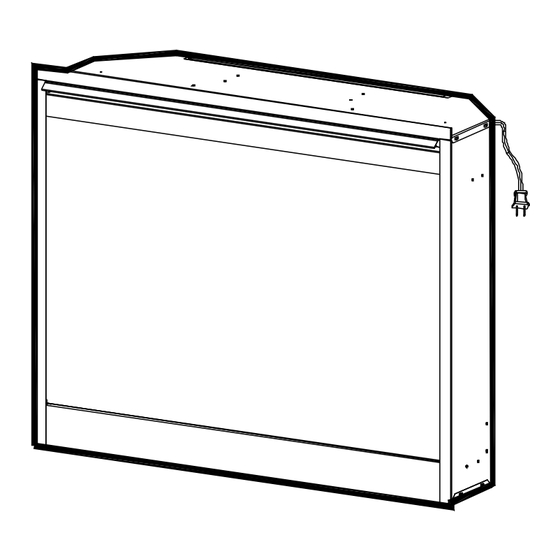

ELECTRIC FIREPLACE
MODEL NUMBER:
DF2608
Valued Customer,
We are pleased that you have chosen to purchase an
electric fireplace by Dimplex North America Ltd. Over the
years, valuable memories will occur around the warmth and
comfort of your hearth. Thank you for allowing our product to
be the backdrop for those special moments.
Quality checked by:
7208680100R01
Advertisement
Table of Contents
Related Manuals for Dimplex DF2608
Summary of Contents for Dimplex DF2608
- Page 1 Valued Customer, We are pleased that you have chosen to purchase an electric fireplace by Dimplex North America Ltd. Over the years, valuable memories will occur around the warmth and comfort of your hearth. Thank you for allowing our product to be the backdrop for those special moments.
- Page 2 CONTENTS PAGE Important Instructions PAGE Fireplace Installation PAGE Operation PAGE Maintenance PAGE Warranty...
-
Page 3: Electric Fireplace
Quick Reference Guide for the Dimplex Electric Fireplace 1. Prior to the first use of the fireplace verify the following: • Are the circuit breakers for the socket the unit uses on? • Are the light bulbs in your fireplace... -
Page 4: Important Instructions
9. Do not operate any unit with a damaged cord or plug, or if the heater has malfunctioned, or if the electric fireplace has been dropped or damaged in any manner. Contact Dimplex Technical Service 1-888-346-7539. 10. Do not use outdoors. - Page 5 manner. Do not use on soft surfaces, like a bed, where openings may become blocked. 18. All electrical heaters have hot and arching or sparking parts inside. Do not use in areas where gasoline, paint, or flammable liquids are used or stored or where the unit will be exposed to flammable vapors.
- Page 6 If you have any questions regarding our products please have the product model number and serial numbers available upon calling Dimplex customer service or technical support. To locate the model and serial number labels see below. Record the model number, serial number on the front cover of this manual for future reference.
-
Page 7: Site Selection And Preparation
Site Selection and Preparation This section provides instructions for selecting a location and preparing the site to install the fireplace into your Dimplex mantel surround. 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. -
Page 8: Fireplace Installation
Additional appliances on the same circuit may exceed the current rating of the circuit breaker. IMPORTANT If not using a Dimplex mantel, the fireplace must be installed in an enclosure with the following MINIMUM dimensions. 23” 26.75”... - Page 9 Option #1 The power cord can be run from behind the trim and along the wall to an outlet near the fireplace. Option #2 A new outlet can be installed inside the framing construction. Plug the unit into a 15Amp/120Volt outlet. If the cord does not reach, you may use an extension cord rated for a minimum of 1875 watts.
-
Page 10: Operation
Operation Electric Fireplace Manual Control The manual controls for the fireplace are behind the access panel located at the bottom of the fireplace. A. Three position ON/OFF switch The switch has two ON positions marked with I and II The I position is for manual operation. In this position the built-in remote control is bypassed. -
Page 11: Remote Control
The heater is protected with a safety device to prevent overheating. Should the heater overheat, an automatic cut out will turn the heater off and it will not come back on without being reset. It can be reset by switching the ON/OFF SWITCH to OFF and waiting 5 minutes before switching the unit back on. -
Page 12: Maintenance
Maintenance WARNING Disconnect the power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. Light Bulb Replacement Allow at least 5 minutes for the light bulbs to cool before touching them to avoid accidental burning of the skin. The light bulbs need to be replaced when you notice a dark section of the flame or when the clarity and detail of the log ember bed exterior reduces. - Page 13 Figure 3 To access the lower light bulb area: 1. Slide fireplace out of mantel 2. Lay unit on it’s back for safe removal of front glass. 3. Remove 4 Phillips screws from the right side of trim. 4. Slide glass to right side of fireplace to remove. 5.
- Page 14 NOTE Ensure the logset is installed tightly under the back ledge to prevent light leakage. Upper Light Bulb Requirements Quantity of 2 clear chandelier or candelabra bulbs with an E- 12 (small) socket base, 15 watt rating. DO NOT EXCEED 25 WATTS PER BULB To access the upper light bulb area: 1.
-
Page 15: Two-Year Limited Warranty
Dimplex warrants such products to be free from defects in material and workmanship for a period of 2 years... - Page 16 Dimplex warrants such products to be free from defects in material and workmanship for a period of 1 year from the date of first purchase of such products.
- Page 17 Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
- Page 18 Such costs shall be the purchaser’s responsibility. What Dimplex and its dealers and service agents are also not responsible for: IN NO EVENT WILL DIMPLEX, OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY.
- Page 19 The provisions of the United Nations Convention on Contracts for the Sale of Goods shall not apply to this limited warranty or the sale of products covered by this limited warranty. 1-888-DIMPLEX 1-888-346-7539 1367 Industrial Road Cambridge, Ontario Canada, N1R 7G8...
