IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this
fireplace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2011 Dimplex North America Limited

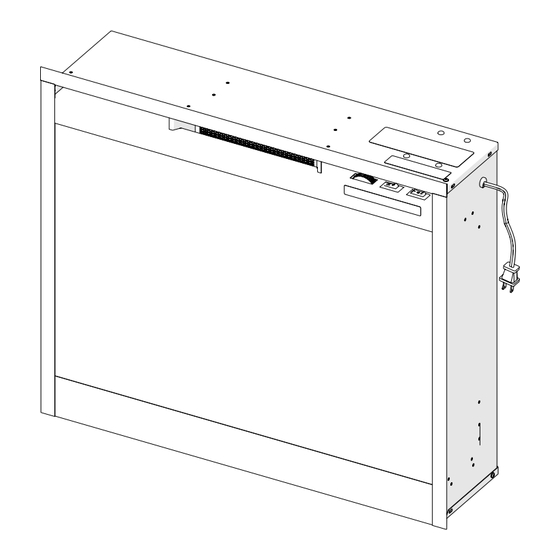

Service Manual
Model Number:
DF2600
UL Part Number
690893XXXX
REV
PCN
DATE
00
-
13-AUG-13
7400700100R00
Advertisement
Table of Contents
Related Manuals for Dimplex DF2600
Summary of Contents for Dimplex DF2600
- Page 1 Dimplex North America Limited 13-AUG-13 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2011 Dimplex North America Limited 7400700100R00...
-
Page 2: Table Of Contents
NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Operation
OPERATION Remote Operation The fireplace is supplied with an integrated On/Off remote Figure 1 control. NOTE: Ensure that the fireplace 3 position switch is set to the remote control setting, “II”. To operate, push the ON button to turn fireplace on, push the OFF button to turn the fireplace off. -
Page 4: Maintenance
Compact Fireplace Surface Cleaning Use warm water only to clean painted surfaces of the Compact Fireplace. Do not use abrasive cleaners. Servicing Except for light bulb replacement and cleaning described above, an authorized service representative should perform any other servicing. www.dimplex.com... -
Page 5: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM REPLACEMENT PARTS 1. Log Set Assembly ....0439560300RP 10. Front Glass ..... 5902570200RP 2. -
Page 6: Wiring Diagram
WIRING DIAGRAM LOG LED LIGHT HARNESS www.dimplex.com... -
Page 7: 3-Position Switch Replacement
3-POSITION SWITCH REPLACEMENT HEATER ON/OFF SWITCH REPLACEMENT Tools Required: Phillips Head Screwdriver Flat Head Screwdriver Tools Required: Phillips Head Screwdriver CAUTION: If unit was operating prior to servicing allow Flat Head Screwdriver at least 10 minutes for lights, heating elements and top CAUTION: If unit was operating prior to servicing allow panel to cool off to avoid accidental burning of skin. -
Page 8: Thermostat Control Replacement
WARNING: Disconnect power before attempting any maintenance to reduce the risk of electric shock or damage 8. Properly orient and install the new assembly and con- to persons. nect all of the wiring. 1. Unplug the unit from power outlet. www.dimplex.com... -
Page 9: Power Cord Replacement
FLICKER MOTOR & FLICKER ROD WARNING: Ensure wires do not come in contact with moving parts by securing wires in wiring tie wraps. REPLACEMENT 9. Reassemble in the reverse order as above. Tools Required: Phillips Head Screwdriver POWER CORD REPLACEMENT CAUTION: If unit was operating prior to servicing allow at least 10 minutes for lights, heating elements and top Tools Required: Phillips Head Screwdriver... -
Page 10: Led Driver Board Replacement
5. Gently open the bottom panel, laying it on the work sur- Side Section Edge face so that all of the components can easily be seen. (Figure 8) 6. Locate the LED lights along the back. Each light is www.dimplex.com... - Page 11 Figure 9 Support Bracket Screws...
-
Page 12: Troubleshooting Guide
LED log set is not working Replace LED log set LED driver board is not working Replace LED driver board Light leaking around the log set Log set not positioned properly Check log set for proper fit www.dimplex.com... - Page 13 PROBLEM CAUSE SOLUTION Heater Heater is not turning off Improper operation Refer to Operation Section Defective Heater On/Off Switch Replace Heater On/Off Switch Defective Thermostat Replace Thermostat Heater is not turning on, but Improper operation Refer to Operation Section flame effect is still functioning Loose wiring Trace wiring in unit Defective Heater On/Off Switch...
