SECTION 2
Antenna terminal Antenna terminal
LED's LED's
(DS1-DS23: EL204HD) (DS1-DS23: EL204HD)
Mode switch Mode switch
(SW1: MS621C) (SW1: MS621C)
Control cable Control cable
receptacle receptacle
CPU CPU
(IC1: PD78212CW-613) (IC1: mPD78212CW-613)
Ground terminal Ground terminal
Water drain screw Water drain screw

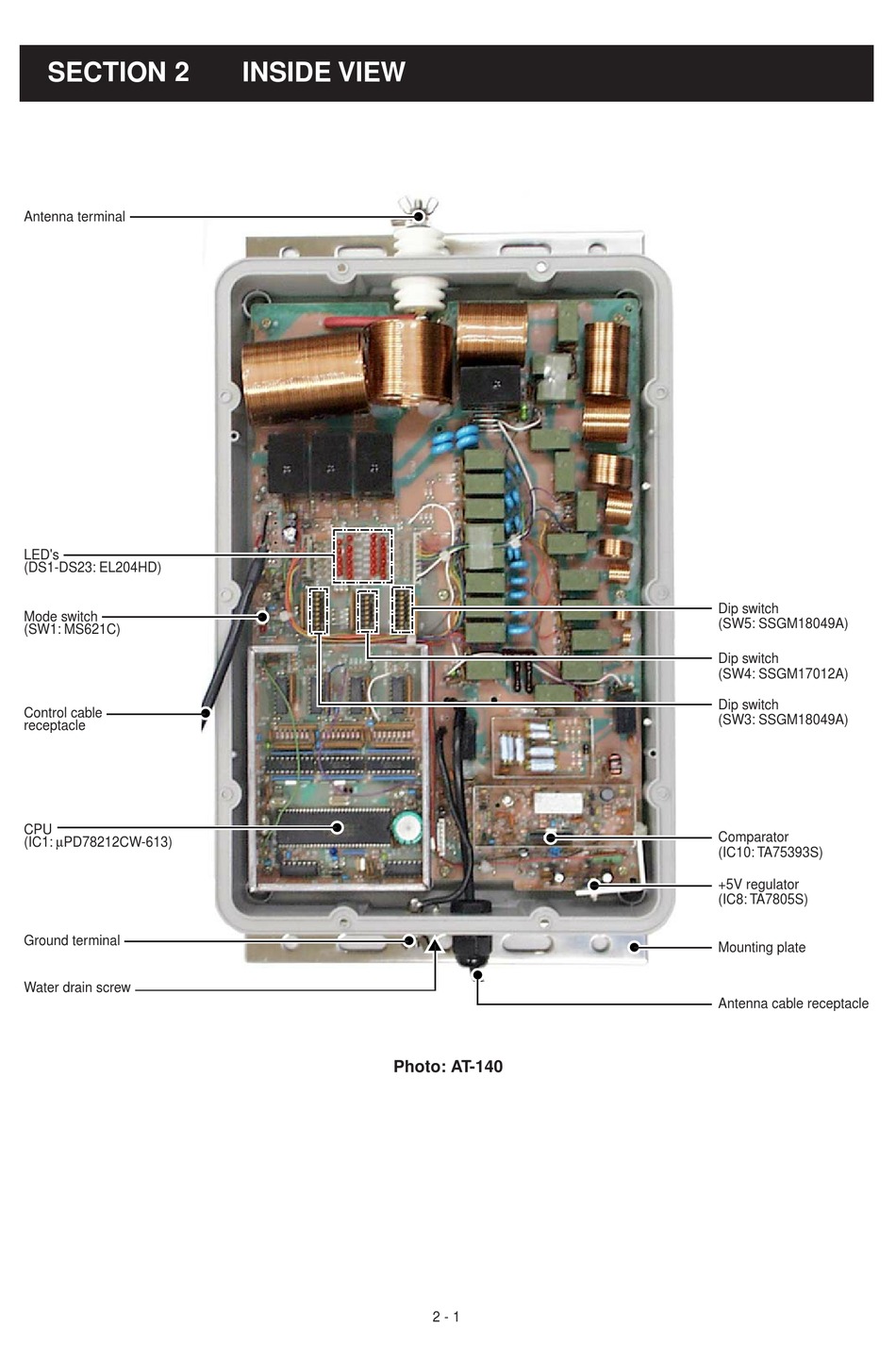

INSIDE VIEW

Photo: AT-140
2 - 1
Dip switch Dip switch
(SW5: SSGM18049A)
(SW5: SSGM18049A)
Dip switch Dip switch
(SW4: SSGM17012A)
(SW4: SSGM17012A)
Dip switch Dip switch
(SW3: SSGM18049A)
(SW3: SSGM18049A)
Comparator Comparator
(IC10: TA75393S)
(IC10: TA75393S)
+5V regulator +5V regulator
(IC8: TA7805S)
(IC8: TA7805S)
Mounting plate Mounting plate
Antenna cable receptacle Antenna cable receptacle
