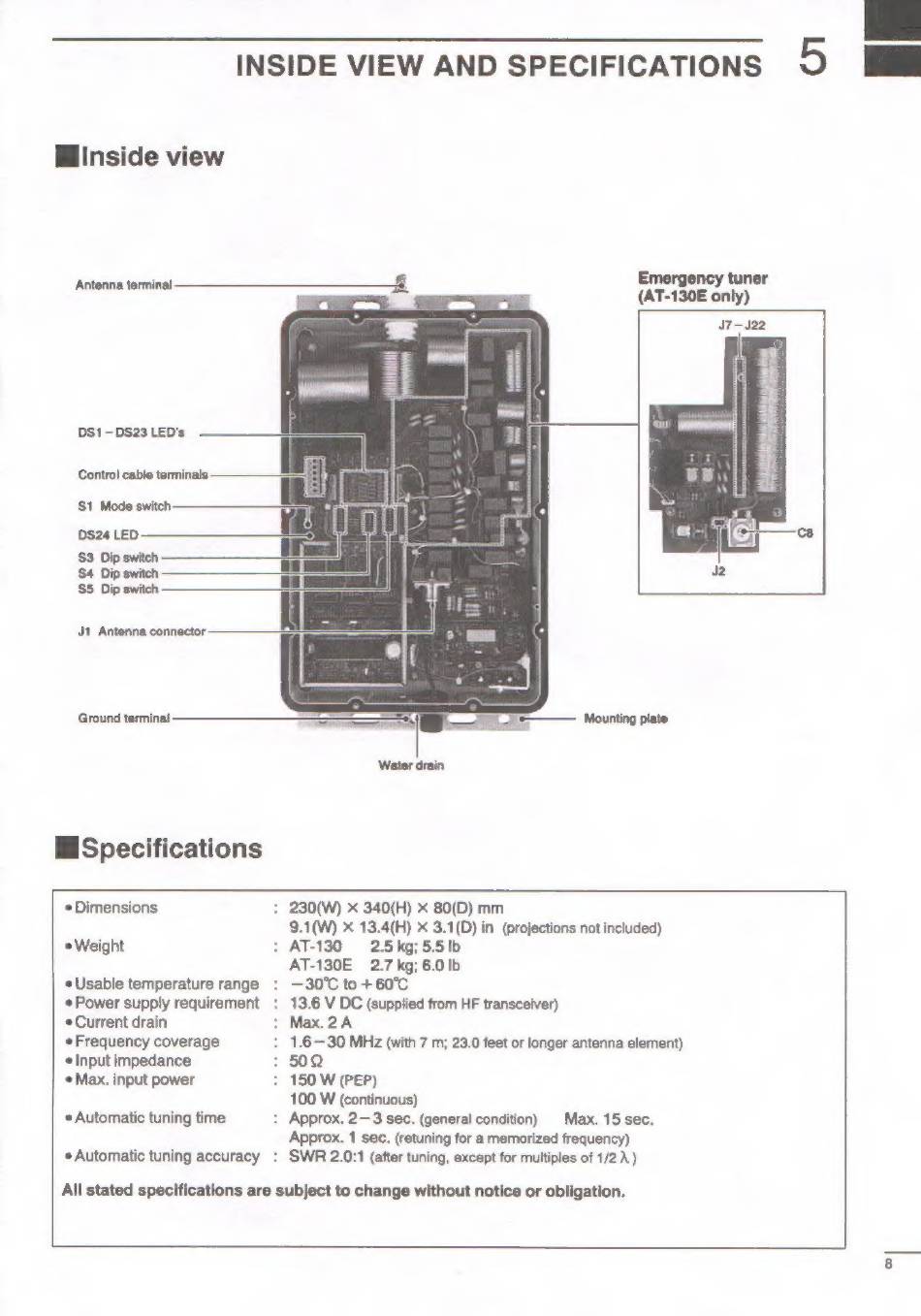

INSIDE VIEW AND SPECIFICATIONS 5
Hlinside view
jency tuner
' s
Antenna terminal
(AT-130E only)
DS1-DS23 LED's
Control cable terminals
$1 Mode switch
DS24 LED
$3 Dip switch
$4 Dip switch
$5 Dip switch
J1 Antenna connector
Ground terminal = 2 = ''*———_ Mounting plate
WSpecifications
¢ Dimensions : 230(W) xX 340(H) x 80(D) mm
9.1(W) X 13.4(H) X 3.1(D) in (projections not included)
© Weight : AT-130 2.5 kg; 5.5 |b
AT-130E 2.7 kg; 6.0 Ib
«Usable temperature range : —30°C to+60
«Power supply requirement : 13.6 V DC (supplied from HF transceiver)
© Current drain : Max.2A
¢ Frequency coverage : 1.6—30 MHz (with 7 m; 23.0 feet or longer antenna element)
Input impedance : 50Q
«Max. input power : 150 W (PEP)
100 W (continuous)
« Automatic tuning time : Approx. 2—3 sec. (general condition) | Max. 15 sec.
Approx. 1 sec. (retuning for a memorized frequency)
© Automatic tuning accuracy : SWR 2.0:1 (after tuning, except for multiples of 1/2)
All stated specifications are subject to change without notice or obligation.
