ASSEMBLY

•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
•• Left parts are marked “"L”" or “"Left”" and right parts
are marked “"R”" or “"Right.”"
•• To identify small parts, see page 5.

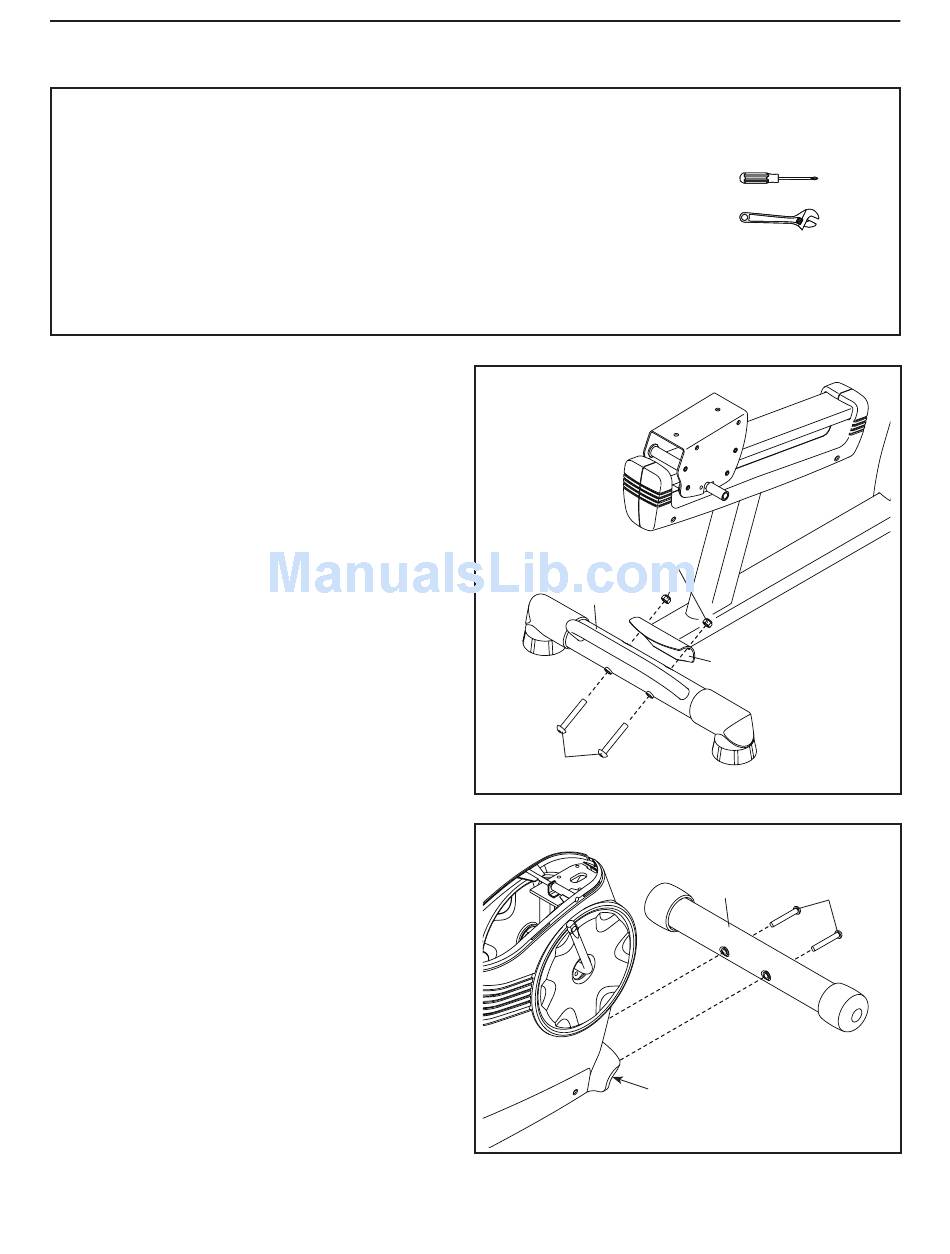

1. Orient the Rear Stabilizer (31) as shown.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (31) to the Frame
with two M10 x 80mm Bolts (54) and two M10
Jam Nuts (57).
2. Orient the Front Stabilizer (32) as indicated by
the sticker.
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (32) to the
Frame with two M10 x 80mm Screws (54).
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
31
54
2
6
57
1
32
54
1
