Icom IC-M45 Service Manual page 13

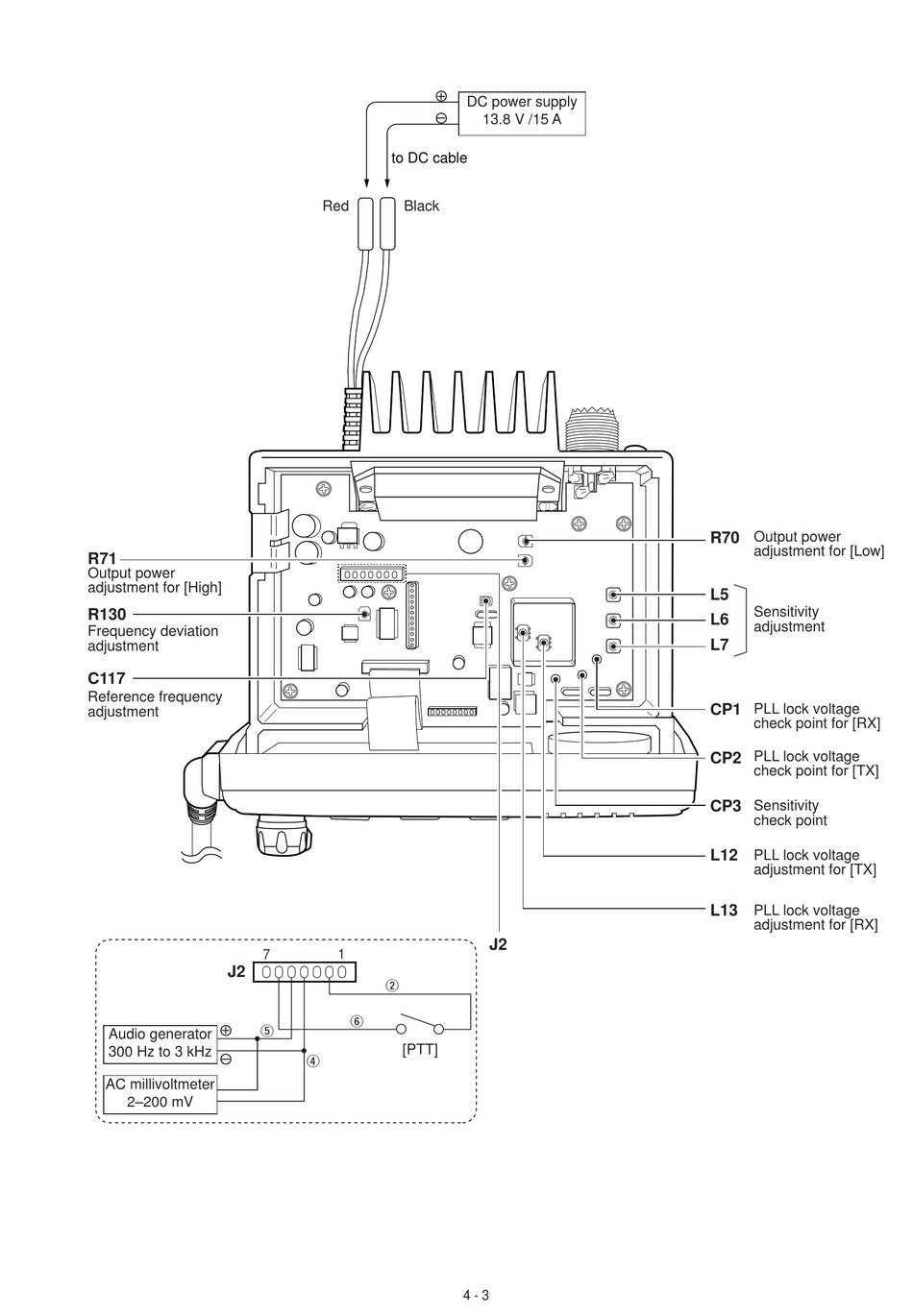

R71
Output power
adjustment for [High]
R130
Frequency deviation
adjustment
C117
Reference frequency
adjustment
J2
+
Audio generator
300 Hz to 3 kHz
–
AC millivoltmeter
2–200 mV
to DC cable
Red Black
1
7
w
y
t
[PTT]
r
+
DC power supply
–
13.8 V /15 A
J2
4 - 3
Output power
R70
adjustment for [Low]
L5
Sensitivity
L6
adjustment
L7
PLL lock voltage
CP1
check point for [RX]
PLL lock voltage
CP2
check point for [TX]
CP3 Sensitivity
check point
L12 PLL lock voltage
adjustment for [TX]
L13 PLL lock voltage
adjustment for [RX]
