Note: Connect the 4-wire RJ-11
type plug (used with telephones) to
the Page Input connector (far
right), or use the Page in
terminals.
Use Tip and Ring if installing to an
existing paging system (low
voltage output), VOX activated.
Use Tip and Ring if connecting to
a Loop Start or Ground Start
interface port in host telephone
system.
With a microphone, hook the mic
switch to C1 and Grd, and the mic
output to Tip and Ring.
Note: Do not use extension
cords or plug into locally,
"safety-fused" outlets.

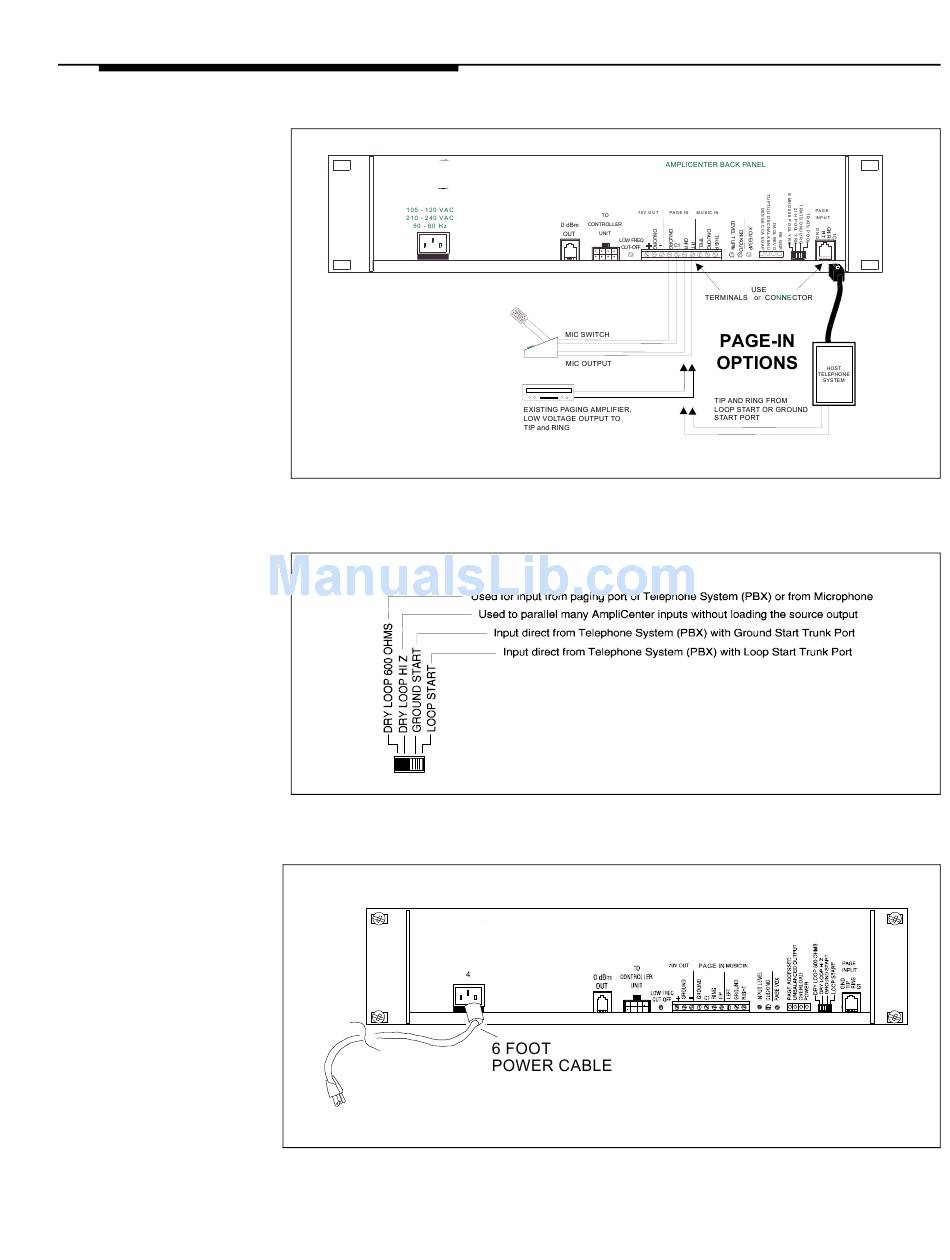

Figure 5. Host Telephone System Connection
Figure 6. Telephone Mode Switch Setting
105 - 120 VAC
210 - 2 0 VAC
50 - 60 Hz
Figure 7. Power Cable
