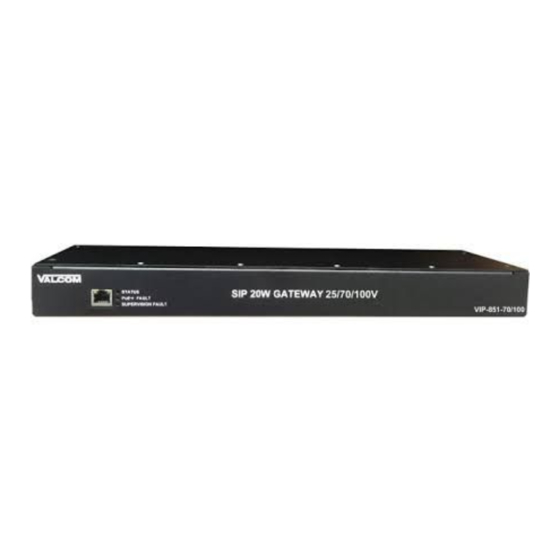

VIP-851-25-IC & VIP-851-70/100-IC
IP/SIP 20W Amplifier 25/70/100V
INTRODUCTION
The VIP-851-25-IC and VIP-851-70/100-IC
InformaCast Compliant IP/SIP 20W Amplifiers
enable voice access to a single zone of one-way
paging over an IP network, allowing page zones to
be extended anywhere network connectivity is
available. The amplifiers can optionally be
programmed as a SIP (Session Initiation Protocol)
device for connectivity to virtually any VOIP (Voice
over IP) telephone system.
The VIP-851-25-IC has output connections for line
level and 25-volt speakers only.
The VIP-851-70/100-IC has output connections for
line level and 25-volt, 70-volt or 100-volt speakers.
SPECIFICATIONS
Features
1 Audio Input
2 Audio Outputs (VIP-851-25-IC)
4 Audio Outputs (VIP-851-25/70/100-IC)
1 Form C Relay
1 Contact Closure Input
1 SIP identity for registering to a VoIP telephone
system
Power over Ethernet 802.3at (PoE+) compatible
Front panel activity LED
Front panel PoE+ Fault indicator
Front panel Supervision Fault indicator
Provides line level audio for up to 40 Valcom
one-way amplified speaker assemblies
Contact closure or VOX operation of audio input
Removable screw terminal connectors provided
for audio and relay interfaces
AUX input music mutes during page
Barrel jack for optional DC power
Environment
Temperature:
Humidity:
InformaCast® Compliant
0 to +40° C
0 to 85% non-precipitating
Dimensions/Weight
1 Standard 19" Rack unit
1.75" H x 16.6" W x 4.8" D
(4.4cm H x 42.2cm W x 12.2cm D)
Weight:
VIP-851-25 -IC
VIP-851-70/100-IC
Nominal Specifications
AUX Input Impedance:
AUX Input Level:
25V or 70/100V Output
Line Level Output Impedance:
Line level Output Level:
Relay Current:
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3at PoE+ Ethernet Switch:
802.3at:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building
1
VIP-851-25-IC
VIP-851-70/100-IC
2.00 lbs. (0.91 kg)
3.10 lbs. (1.41 kg)
-10dBm nominal
20 Watts Max.
- 10dBm nominal
1 Amp @ 24VDC
.
947586
ISSUE 1
600 Ohms
50 Ohms
24VDC
900mA
Class 4
Advertisement
Table of Contents
Related Manuals for Valcom VIP-851-25-IC InformaCast
Summary of Contents for Valcom VIP-851-25-IC InformaCast
- Page 1 Front panel PoE+ Fault indicator Relay Current: 1 Amp @ 24VDC Front panel Supervision Fault indicator Nominal Power Requirements Provides line level audio for up to 40 Valcom Via rear panel barrel connector: one-way amplified speaker assemblies Voltage: 24VDC ...
-
Page 2: Fcc Information
Precautionary Designations This equipment generates, uses and can radiate radio frequency energy and if not installed and WARNING To Reduce The Risk Of Fire Or used in accordance with the instruction manual, Electric Shock. Do Not Expose This may cause harmful interference to radio Apparatus To Rain Or Moisture. -
Page 3: Power Connections
25V and 70V or 100V. The LINE output provides a If the rear panel barrel connector is used for power, line-level signal suitable for driving up to 40 Valcom the preferred power supply is a Valcom VP-1124D self-amplified speakers or other devices requiring a or larger power supply. -
Page 4: Status Indicator Lights
PoE+ FAULT LED is lit or if the SUPERVISION FAULT LED is lit solid or blinking. Syslog messages are also generated by the VIP-851 indicating system supervision activity. Additional equipment may be required. Contact Valcom Technical Support for more information. 947586... -
Page 5: Technical Assistance
Valcom website at www.valcom.com. Network Reset: Hold the button in for 10-19 seconds Valcom equipment is not field repairable. Valcom, Restores factory network settings Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the...
