Note: The optional audio
background music source can be
a CD or tape player, AM, FM, or
commercial radio, or other audio
device.
Note: If more than one speaker cable
is routed to the AmpliCenter, a
connector block is necessary.
Refer to sample wiring diagrams on
page 8. It is recommended that
22GA shielded wire be used.
DO NOT hook up speaker wires with
AmpliCenter power plug connected!
2. Connect music input wires to Left, Right, and Ground terminals, if stereo, or Left
and Ground, if not (see Figure 3).

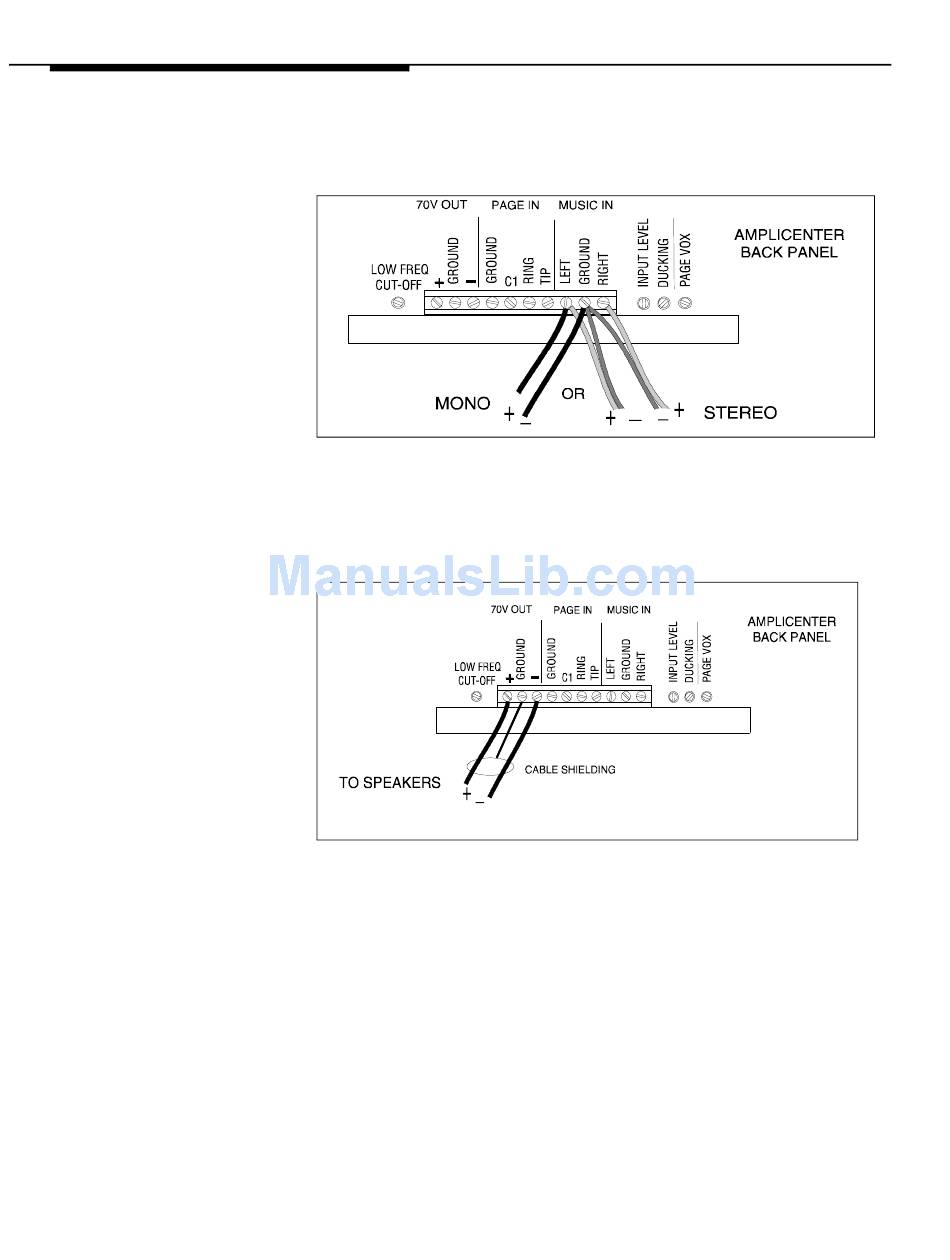

Figure 3. Music Input Connections on AmpliCenter
3. Hookup speaker cable to AmpliCenter (see Figure 4).
Figure 4. Speaker Connection on AmpliCenter
4. Connect host telephone system to Amplicenter (see Figure 5).
5. Set the AmpliCenter Telephone Mode Selection Switch (see Figure 6) to match the
page output type of your telephone system.
6. Insert power cord into AmpliCenter and into wall outlet (see Figure 7).
7. Test paging zone served by the AmpliCenter by dialing paging telephone extension
or use microphone.
