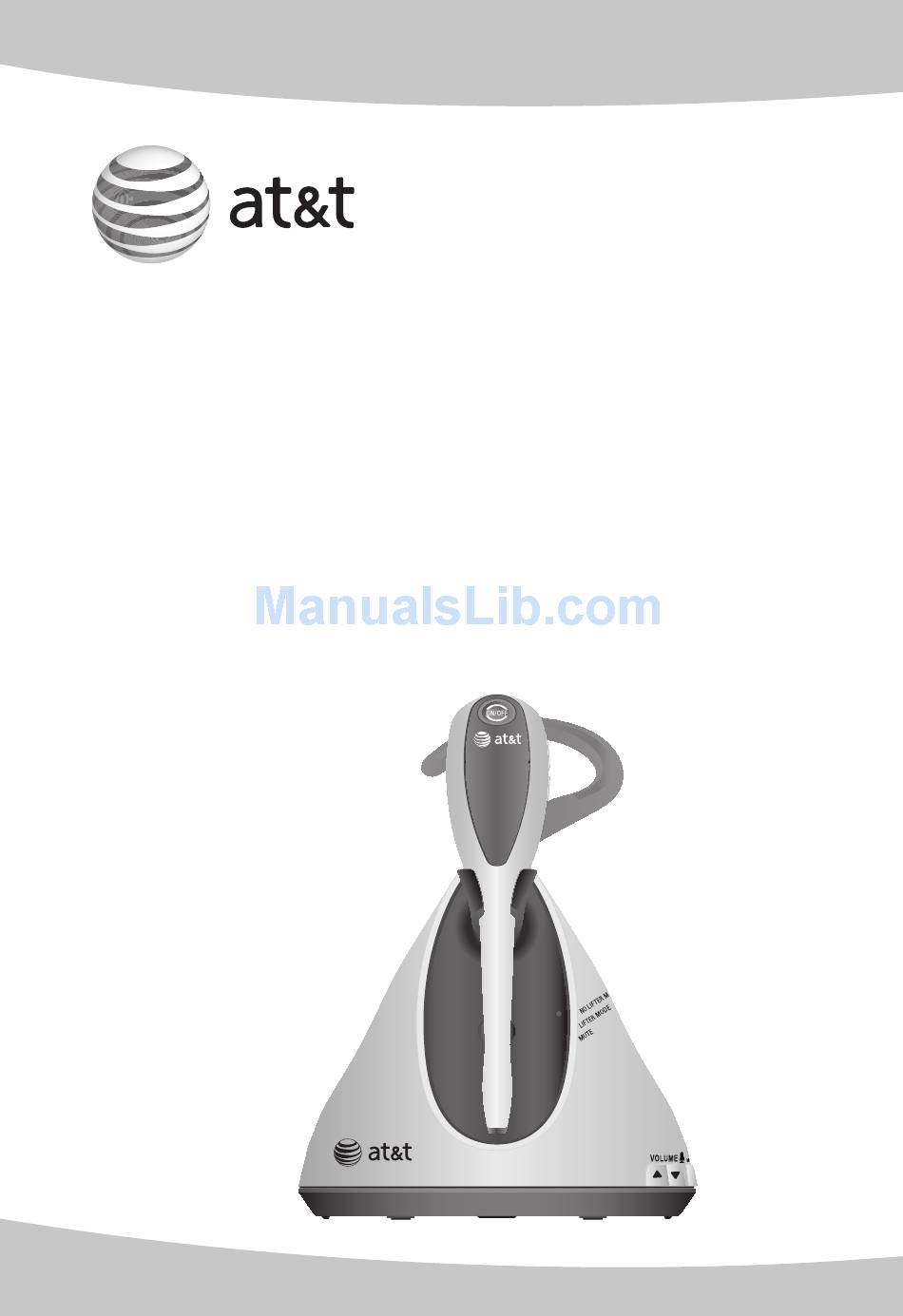

Quick start guide
TL7610/TL7611
DECT 6.0 cordless headset

Advertisement

Table of Contents
loading

Related Manuals for AT&T TL7610

Summary of Contents for AT&T TL7610

  • Page 1 Quick start guide TL7610/TL7611 DECT 6.0 cordless headset...

  • Page 2: Battery Installation

    Getting started Battery installation Install the battery as shown below. After installing the battery, you may be able to make and receive short calls. For optimal performance, charge the headset battery for at least six hours before use. When not in use, recharge the headset by returning it to the headset base.

  • Page 3: Battery Charging

    Getting started Battery charging After installing the battery, charge the headset by placing it in the headset base as shown below. The headset ON/OFF light is on when the headset is charging. Push ON/OFF light Insert . Insert the headset into the 2.

  • Page 4: Installation Preparation

    Getting started Installation preparation If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your telephone lines, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference.

  • Page 5: Headset Base Installation

    Getting started Headset base installation IMPORTANT: If you purchased model TL76, see the TL7000 handset lifter manual for installation instructions. Optional accessories The following optional accessories are compatible with your headset and base: • The TL7000 is a handset lifter with optional external ring optional external ring detector.

  • Page 6: Installation Options

    Getting started Headset base installation Installation options IMPORTANT: If you purchased model TL76, or if you purchased a model TL7000 handset lifter (purchased separately), follow the installation instructions in the TL7000 handset lifter manual and then skip to page 3 of this �uick start guide. skip to page 3 of this �uick start guide.
  • Page 7 Getting started Headset base installation Installation options Digital subscriber line (DSL) If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your telephone lines, you must install a DSL filter between the telephone base and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference.
  • Page 8 Getting started Headset base installation Before installing the headset base: Remove the rear bottom piece of the headset base by pushing it away from the base (as shown in Figure ). Figure  Install the headset base as shown on the following pages. After completing installation option , 2 or 3: Slide the rear bottom piece towards the headset base until it clicks into place (as shown in Figure 2).

  • Page 9: Option 1: Headset Base With Corded Or Cordless Phone Installation (Tl7610)

    Getting started Headset base installation Option 1: Headset base with corded or cordless phone installation (TL7610) Plug the small end Plug one end of the of the headset telephone line cord into base power the TEL WALL JACK (red adapter into the...

  • Page 10: Option 2: Headset Base Stand-Alone Installation (Tl7610)

    Getting started Headset base installation Option 2: Headset base stand-alone installation (TL7610) In order to make calls, you need a telephone plugged into the same telephone line or a dial pad (TL760 sold separately). Plug the small end of Plug one end of the...
  • Page 11 Headset base installation Option 3: Headset base with corded phone for multiple line system or digital business system installation (TL7610) With this installation, you can make and receive calls using the LIFTER MODE without a lifter. Make sure the LIFTER AUDIO ADJUST setting is correct (see page 2).
  • Page 12 Getting started Headset base installation No lifter mode or lifter mode There are two answer modes available on the headset base. The current mode is indicated by two lights on the front of the headset base named NO LIFTER MODE and LIFTER MODE. •...
  • Page 13 Getting started Headset base installation Adjust lifter audio Press MODE on the headset base to change the mode if the LIFTER MODE light is not on. Make sure that the LIFTER MODE light on the headset base is on. Lift the corded handset from the telephone cradle.
  • Page 14 Getting started Quick reference guide - headset ON/OFF Press to make and/or answer a call, and to end a call. The light is on when the headset is charging in the headset base. The light flashes slowly when you are on a call, or flashes �uickly when there is an incoming call.

  • Page 15: Charging Cradle

    Getting started Quick reference guide - headset base Charging cradle Insert the headset here for charging. PAIR Press to register or de-register a headset. NO LIFTER MODE light On when NO LIFTER MODE is selected. Flashes while on a call or another telephone is in use on the same line.
  • Page 16 Getting started Quick reference guide - headset base LIFTER AUDIO ADJUST Adjust the switch to choose the best headset audio �uality when using LIFTER MODE. (See page 2 of this �uick start guide or the handset lifter user's manual for more information. You can download the manual at www.telephones.att.com VOLUME...
  • Page 17 www.telephones.att.com © 2008 Advanced American Telephones. All rights reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 3 AT&T 12/08.
