Summary of Contents for AT&T TL760

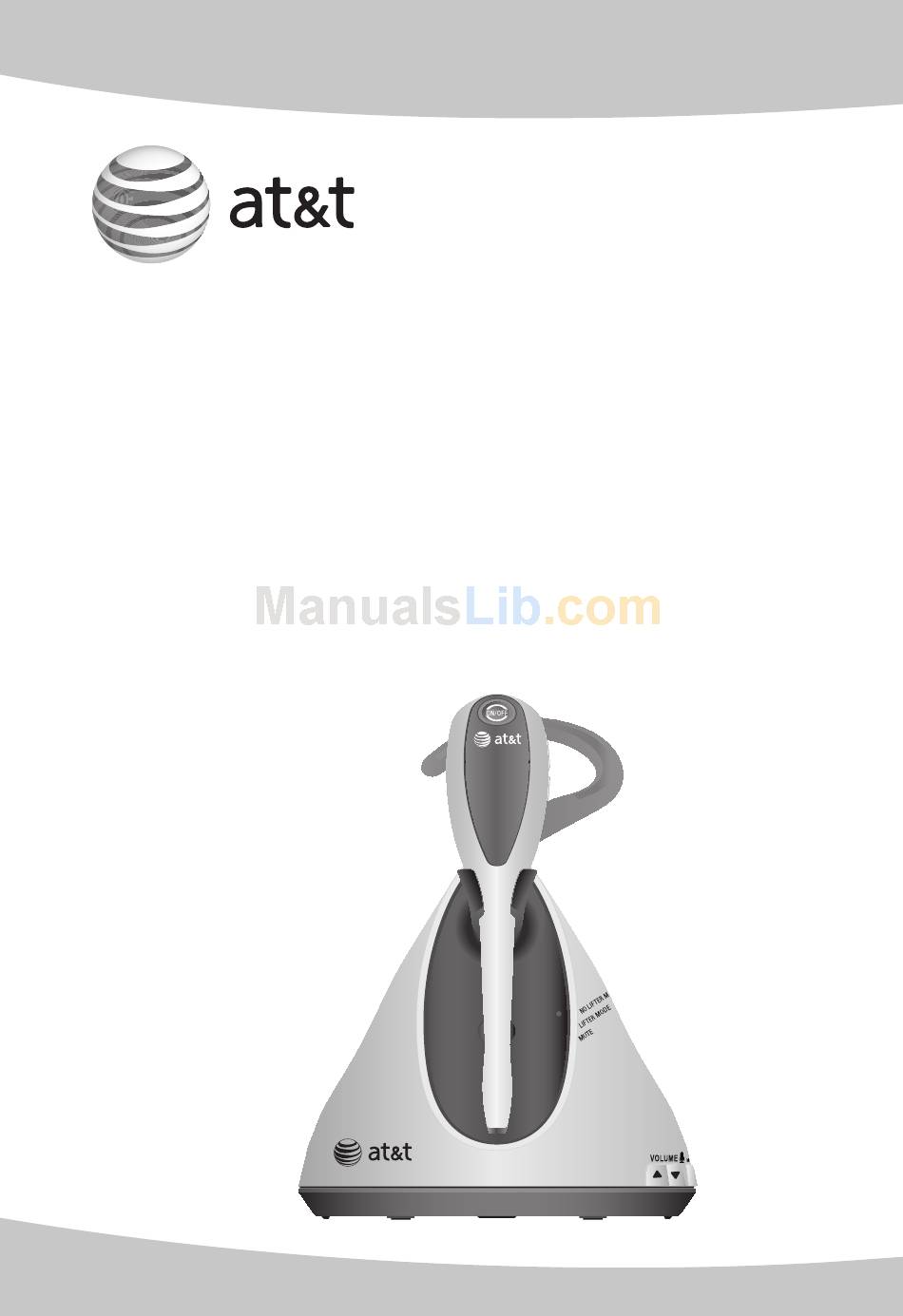

- Page 1 Quick start guide TL7610/TL7611 DECT 6.0 cordless headset...
-
Page 2: Battery Installation
Battery installation Install the battery as shown below. After installing the battery, you may be able to make and receive short calls. For optimal performance, charge the headset battery for at least six hours before use. When not in use, recharge the headset by returning it to the headset base. -
Page 3: Battery Charging
Battery charging After installing the battery, charge the headset by placing it in the headset base as shown below. The headset ON/OFF light will be on when the headset is charging. Insert . Insert the headset into the headset base. IMPORTANT INFORMATION Use only the supplied rechargeable battery or replacement battery (model BT9545). -
Page 4: Installation Preparation
Installation preparation If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL) through your telephone lines, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter will prevent noise and caller ID problems caused by DSL interference. -
Page 5: Headset Base Installation
The TL7000 is a handset lifter with ring detector. • The TL760 is a dial pad that allows you to dial numbers and place calls when away from your telephone. The dial pad will also allow you to use the headset as a stand-alone product without a connection to a telephone. -
Page 6: Installation Options
Headset base installation Installation options IMPORTANT: If you purchased model TL76, or if you purchased a model TL7000 handset lifter (purchased separately), follow the installation instructions in the TL7000 handset lifter manual and then proceed on page 0 of this quick start guide. If you purchased model TL760 (without handset lifter), you have three installation options: Option : Use the headset with a single standard telephone line with... - Page 7 Getting started Headset base installation Before installing the headset base: Remove the rear bottom piece of the headset base by pushing it away from the base (as shown in Figure ). Figure Install the headset base as shown on the following pages. After completing installation option or 2: Slide the rear bottom piece towards the base until it clicks into place (as shown in Figure 2).
-
Page 8: Option 1: Headset Base With Corded Or Cordless Phone Installation (Tl7610)
Headset base installation Option 1: Headset base with corded or cordless phone installation (TL7610) Plug the small end of the headset base power adapter into the POWER jack (green dot) at the back of the headset base. Plug the headset base power adapter into an electrical outlet not controlled... -
Page 9: Option 2: Headset Base Stand-Alone Installation (Tl7610)
Plug the headset base power adapter into an electrical outlet not controlled by a wall switch. NOTE: For more information about the accessory dial pad (model TL760), visit www.telephones.att.com our website Telephone line cord DSL filter (not included) required if you have DSL high-speed Internet service. - Page 10 Headset base installation Option 3: Headset base with corded phone for multiple line system or digital business system installation (TL7610) With this installation, you can make and receive calls using the LIFTER MODE without a lifter. Plug the small end of the headset base power adapter into the POWER jack (green dot) at the...
- Page 11 Quick reference guide - headset VOLUME Press the volume key on the side of the headset to adjust the listening volume when on a call. MUTE/FLASH Press to mute the microphone during a call. Press and hold to receive call waiting during a call.
- Page 12 Quick reference guide - headset base For complete instructions, please refer to the user's manual. If you are unable to find your manual, please visit download the manual. Insert the headset here for charging. Press to register or de-register a headset.
- Page 13 Getting started Quick reference guide - headset base LIFTER AUDIO ADJUST Adjust the switch to choose the best headset audio quality when using a handset lifter. (See the handset lifter user's manual for more information. You may download the manual at www.telephones.att.com VOLUME Press the volume keys on the side of...
- Page 14 www.telephones.att.com © 2008 Advanced American Telephones. All rights reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a AT&T Intellectual Property licensed to Advanced American Telephones. Printed in China. Issue 1 AT&T 07/08.
