Finish Setup - Sonnet Fusion D400Q User Manual

4-drive serial ata disk enclosure with quad interface

Drive Installation and Enclosure Setup

Connect Fusion D400Q to a FireWire or USB Port

This section describes the connection of the Fusion D400Q to your

computer's FireWire or USB ports. Note: Your Fusion D400Q's port

layout may be different than what is pictured in this guide

1. Connect the supplied 6" eSATA cable between the SATA out and

SATA in connectors on the back of the enclosure (Figure 6).

2. Connect any one of the supplied USB or FireWire cables between

the appropriate ports on the enclosure and host computer; verify

the connectors are plugged in securely (Figure 7).

Finish Setup

1. Connect the supplied power cable between the Fusion D400Q

and a grounded wall outlet or power strip; verify the cable is

plugged in securely.

2. Push the switch on the back of the enclosure to the on position,

and then power on your computer.

3. Format the drives installed in the Fusion D400Q according to

your needs; refer to your operating system software's guide or

help section for more information.

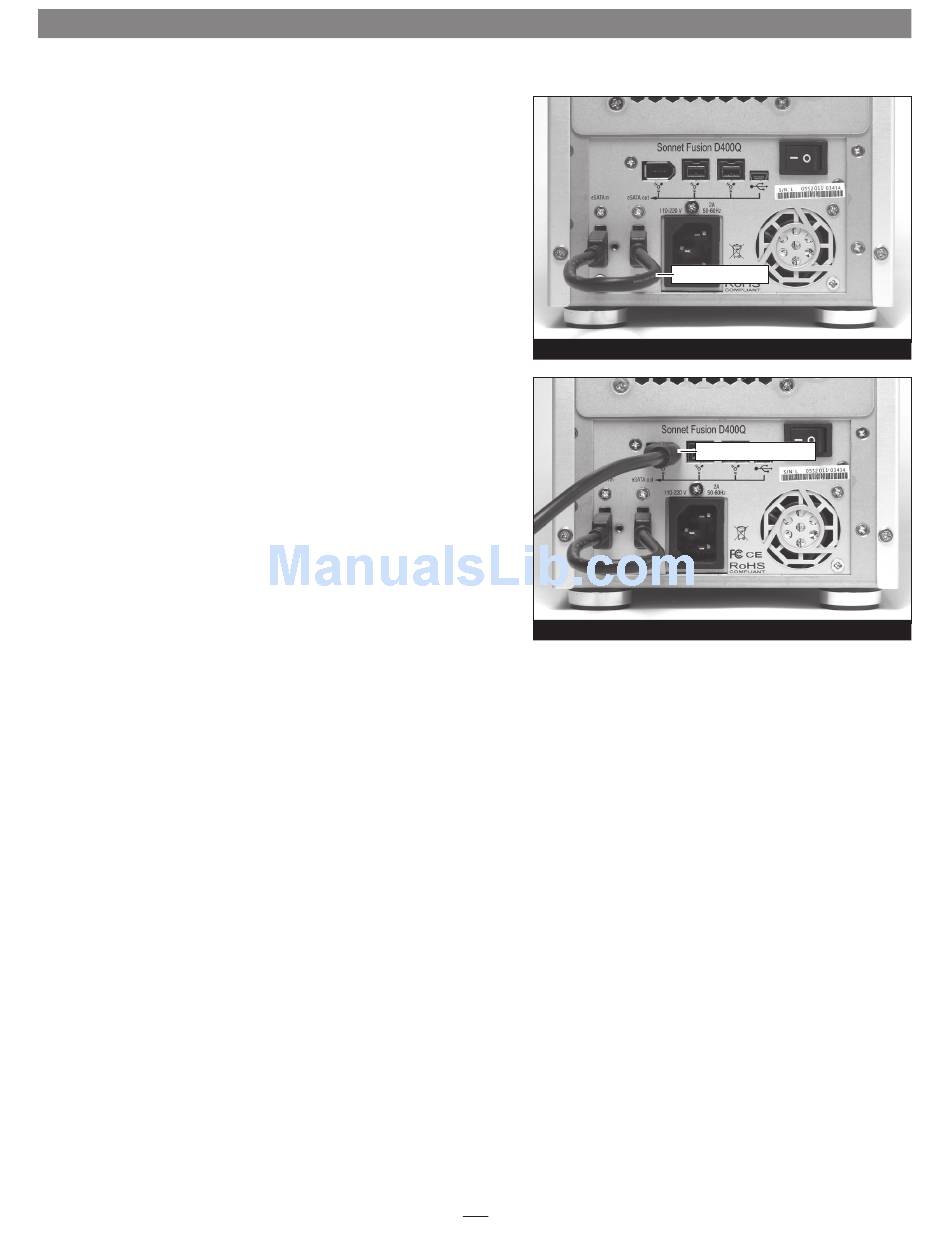

eSATA jumper cable

Figure 6

FireWire cable (example)

Figure 7
