Download
Share
Print this page
Sonnet FUSION R400Q User Manual
  1. Manuals
  2. Brands
  3. Sonnet Manuals
  4. Enclosure
  5. FUSION R400Q
  6. User manual

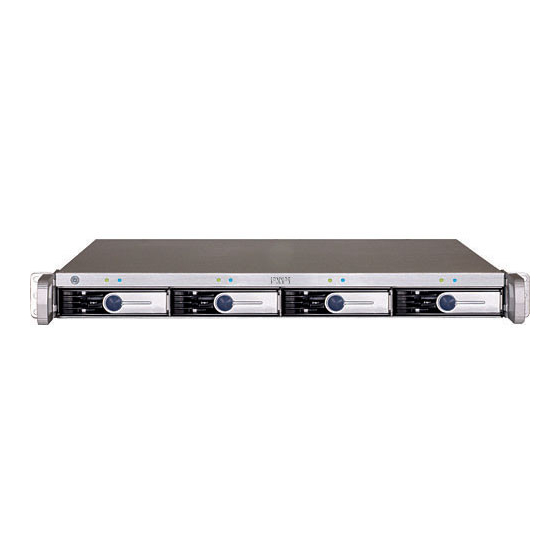

Sonnet FUSION R400Q User Manual

4-bay serial ata rackmount drive enclosure with quad interface
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
400
R
Q
FUSION
™
4-Bay Serial ATA Rackmount Drive Enclosure with Quad Interface
User's Guide
For
Windows

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUSION R400Q and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sonnet FUSION R400Q

Summary of Contents for Sonnet FUSION R400Q

  • Page 1 FUSION ™ 4-Bay Serial ATA Rackmount Drive Enclosure with Quad Interface User’s Guide Windows...

  • Page 2: Specifications

    Fusion R400Q Specifications and Features Drive Presence LED Drive Presence LED Drive Presence LED Drive Presence LED (Bay 1) (Bay 2) (Bay 3) (Bay 4) Power LED Drive Tray Drive Tray Drive Tray Drive Tray (Bay 1) (Bay 2) (Bay 3)
  • Page 3 DEGRADE SYSTEM RELIABILITY AND PERFORMANCE. Check the Sonnet Web site for the latest list of qualified hard drives. • Do not expose the device to rain, use it near water or containers...

  • Page 4: Drive Installation And Enclosure Setup

    Drive Installation and Enclosure Setup 1. Remove the Fusion R400Q from its packaging, and place it on a flat, level surface. 2. If you intend to place the Fusion enclosure on a desktop or other foot flat surface, attach the included adhesive-backed feet to the bottom of the enclosure (Figure 3).
  • Page 5 9. Repeat steps 4-8 for additional drives. starts to close 10. Install the Fusion R400Q into the rack or onto the desktop on which it will reside. Figure 8 Connect Fusion R400Q to SATA Host Controller This section describes the connection of the Fusion R400Q to your computer’s SATA host controller card.
  • Page 6 FireWire or USB ports. If you intend connect the R400Q to your computer’s SATA host controller card, go back to the previous section. Note: Your Fusion R400Q’s port layout may be different than what is pictured in this guide eSATA jumper cable 1.

  • Page 7: Visit Our Website

    If further assistance is needed, please contact us at: • If you remove a drive module from the Fusion R400Q that was Sonnet Customer Service: part of a RAID set, you should power off the enclosure before Online Service Form: http://serviceform.sonnettech.com...
  • Page 8 ©2010 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, Creativity Stored Here, and Fusion are trademarks of Sonnet Technologies, Inc. FireWire, Macintosh, Mac, the Mac logo, and Mac OS are trademarks of Apple Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change...
