Drive Installation and Enclosure Setup

1. Remove the Fusion drive enclosure and drive trays from their
packaging, and place the enclosure near the computer to which it
will be connected.

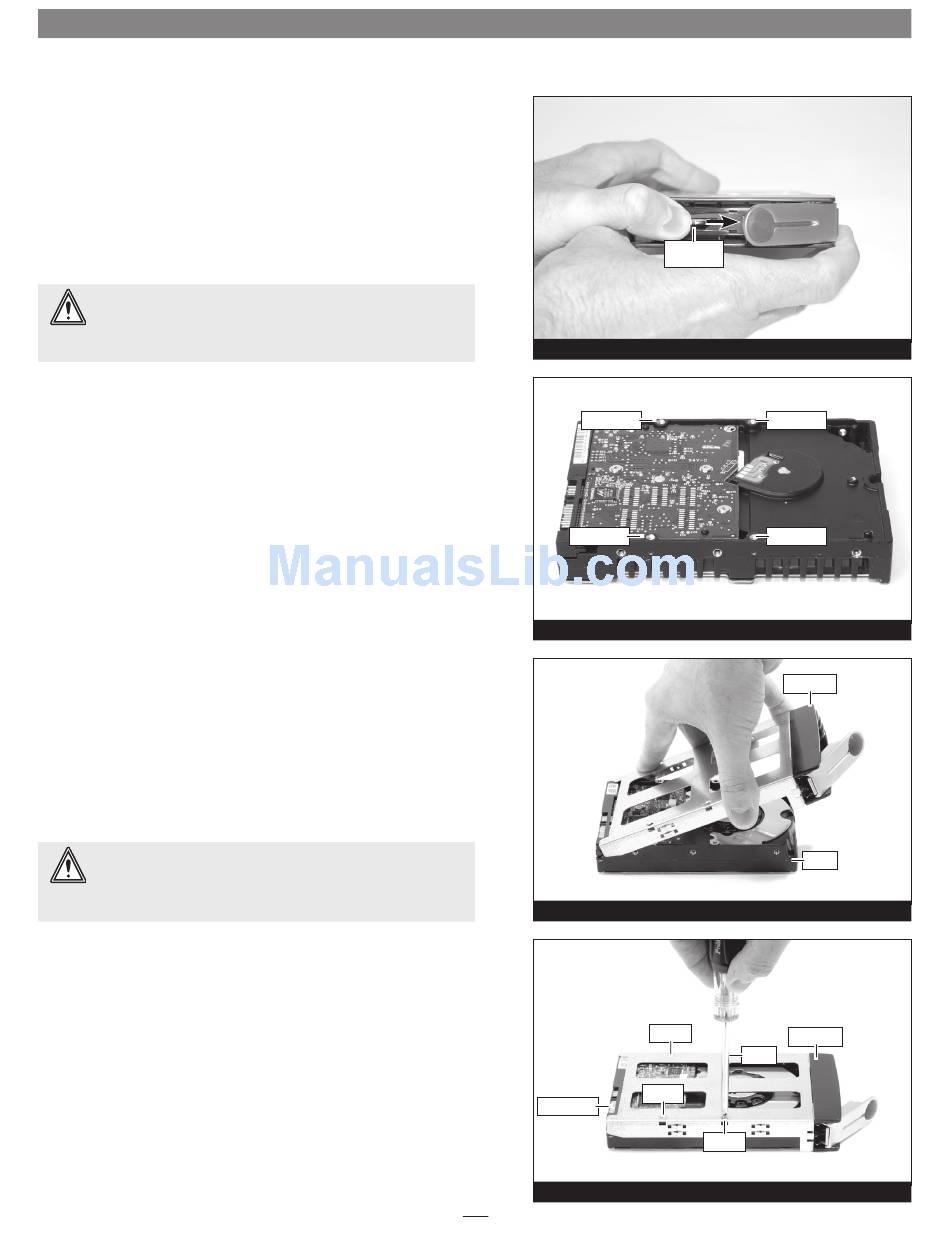

2. Take one of the drive trays and push its lever release button
toward the right until the lever pops out. (Figure 3).
WARNING:
When handling computer products, take care to
prevent components from being damaged by static electricity;
avoid working in carpeted areas. Handle hard drives only by their
edges and avoid touching connector traces and component pins.
3. Remove a SATA drive from its packaging and set it in on a flat,
level surface with the label side down. Open the supplied tube
of threadlocker and apply a single drop to each of the four screw
holes on the bottom of the drive (Figure 4).
4. Turn the drive tray upside down and lay it on top of the drive,
with the back of the tray facing toward the drive's connectors
(Figure 5).
WARNING:
When securing the trays to the hard drives, you
must verify the screw heads are flush with the tray. Otherwise,
a screw may catch on the tray below and prevent you from removing
the tray from the enclosure.
5. Using four of the supplied screws, secure the drive tray to the
drive; tighten each screw to secure the tray snugly to the drive;
do not overtighten the screws (Figure 6).
screw hole
screw hole
screw
connectors
4
lever release
button
Figure 3
screw hole
screw hole
Figure 4
drive tray
drive
Figure 5
screw
drive tray
screw
screw
Figure 6
