- Page 1 RAID FUSION ™ 8-Bay Serial ATA Disk Array Storage System Drive Enclosure User’s Guide Windows...
-
Page 2: Specifications

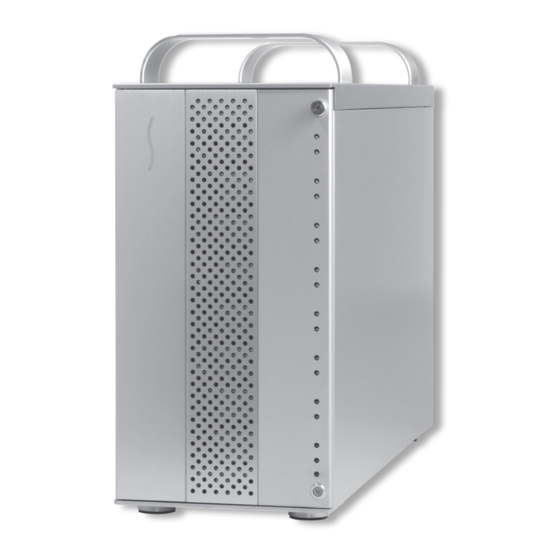

Fusion D800RAID Enclosure Specs and Features Specifications Compatibility Compatible with Mac ® Windows , and Linux ® ® computers with compatible Drive Tray host adapter installed (Bay 1) Interface Connectors 2 x Infiniband multilane Drive Tray (Bay 2) Drives Supported 3 & 1.5 Gb/s Serial ATA; Drive Tray 7,200 RPM (Bay 3) Power Supply 100–240V AC, 50/60Hz Drive Tray (Bay 4) Drive Presence (top) Operating Temperature 32 to 95˚ F... - Page 3 • If unusual smells, sounds, or smoke come from the device, or if liquids enter it, switch it off immediately and unplug it from the There are unresolved technical issues in the Fusion D800RAID with the electrical outlet. following Enterprise/RAID edition drives, which are not recommended at this time: •...
-
Page 4: Drive Installation And Enclosure Setup
Drive Installation and Enclosure Setup 1. Remove the Fusion D800RAID and its drive trays from their packaging, and place them near the computer to which the enclosure will be connected. 2. Take one of the drive trays and push its lever release button in until the lever pops out (Figure 3). -
Page 5: Raid Controller
Figure 7 Connect Fusion D800RAID Drive Enclosure to Sonnet RAID Controller Infiniband This section describes the connection of the Fusion D800RAID drive connector enclosure to the Sonnet RAID controller card. 1. Connect the Infiniband end (with thumbscrews) of the Infiniband supplied data cables to the Infiniband ports on the enclosure;... -
Page 6: Visit Our Website
©2010 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, Creativity Stored Here, and Fusion are trademarks of Sonnet Technologies, Inc. Macintosh, Mac, the Mac logo, and Mac OS are trademarks of Apple Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without...
