- Page 1 D400RAID FUSION ™ 4-Bay Serial ATA Disk Array Storage System Drive Enclosure User’s Guide...
-
Page 2: Specifications

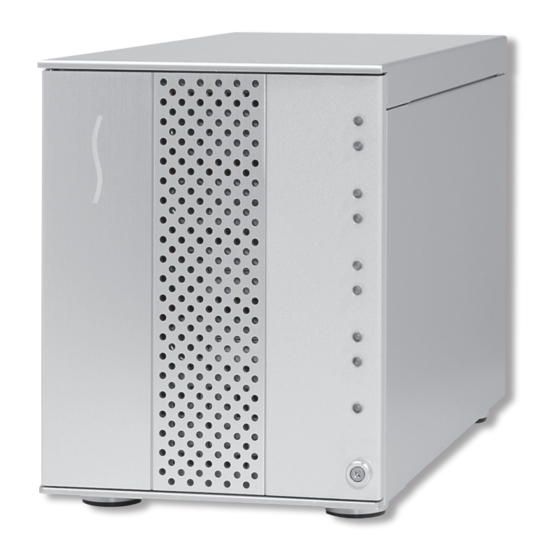

Fusion D400RAID Enclosure Specs and Features Specifications Compatibility Compatible with Mac, Drive Presence LED Drive Tray (Bay 1) Windows, and Linux (Bay 1) Drive Activity LED computers with Sonnet (Bay 1) RAID Controller installed Drive Presence LED Drive Tray (Bay 2) (Bay 2) Interface Connector Infiniband multilane Drive Activity LED... - Page 3 Sonnet has qualified and recommends the following hard drives: • Do not expose the device to rain, use it near water or containers that contain liquids which might spill into any openings, or in •...
-
Page 4: Drive Installation And Enclosure Setup
Drive Installation and Enclosure Setup 1. Remove the Fusion drive enclosure and drive trays from their packaging, and place the enclosure near the computer to which it will be connected. 2. Take one of the drive trays and push its lever release button toward the right until the lever pops out. -
Page 5: Raid Controller
Infiniband connector Figure 8 2. Connect the mini-SAS end of data cable to a port on the Sonnet RAID controller card; verify the connector is plugged in securely (Figure 9). 3. Connect the supplied power cable between the Fusion D400RAID enclosure and a grounded wall outlet or power strip;... - Page 6 PC or server. ©2007 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype and Fusion are trademarks of Sonnet Technologies, Inc. Macintosh and Mac are trademarks of Apple Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without notice. Printed in the USA.
