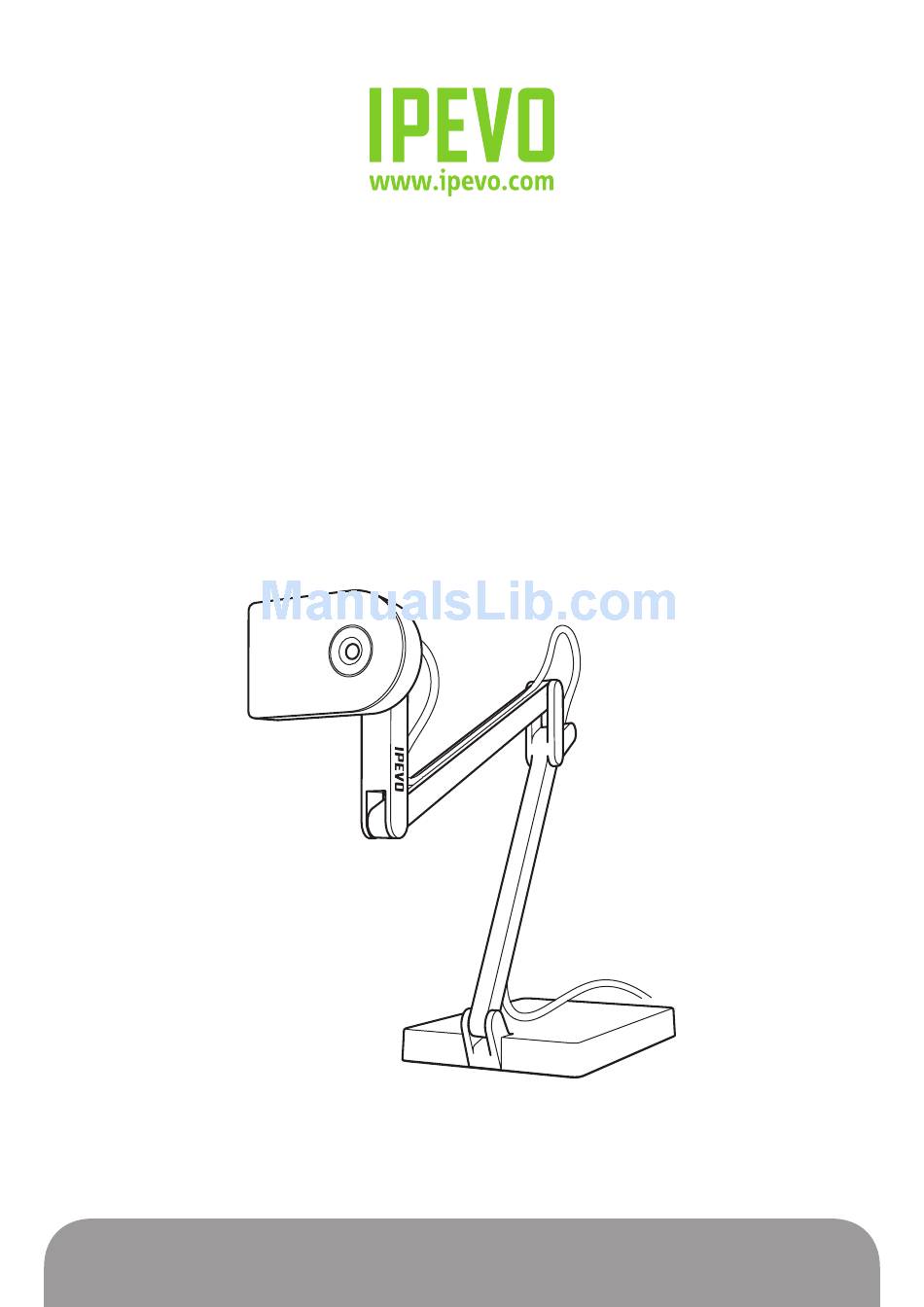

- Page 1 Ziggi USB Document Camera User Manual www.ipevo.com...
-
Page 2: Table Of Contents
Feature-Rich P2V Software Contents About the Packaging Getting Help Version Information System Requirements Installation Getting to Know Ziggi (Key Features) P2V Software Introduction Switching between software modes Basics of the P2V Software Camera mode Full Screen mode Review mode Getting a Great Image – Five Considerations... - Page 3 Photo name format Keep camera mode settings Image adjustment customizations About P2V Setting a language Starting P2V when computer starts Using Ziggi in Other Ways With Skype As a web/conferencing camera Anti-Glare Shield Closing and Exiting the P2V Software Keyboard Shortcuts...
-
Page 4: Introduction
Effortless Autofocus – Ziggi has a smart focusing system that gives you manual control when you need it and convenient automatic control when you don’t. Ziggi can be set to either of two focus settings: • Continuous Focus – in which Ziggi automatically and constantly determines the best focus. In this mode, you are free to move the subject around, and the focus will continue to stay sharp. -
Page 5: Contents
IPEVO has a longstanding commitment to green business practices, and this extends to our product packaging. We like our products to do the talking, not fancy packaging! Your Ziggi has been shipped with a minimum of packaging materials, particularly a minimum of plastic. The plain craft paper box (which does not contain high-resolution graphics or wasteful multi-color printing) is recyclable, as are the cardboard cut-outs keeping the Ziggi in place. -
Page 6: Getting Help
Getting Help Getting Help We want to help you enjoy your Ziggi, and we are always available to answer any questions or offer technical and troubleshooting assistance. Consider using one or more of these resources: • IPEVO.com – The latest versions of the Ziggi software, user manual, FAQ, and other downloads are available at this link: http://support.ipevo.com/#Ziggi... -
Page 7: Version Information
Viewing Your Software’s Version Viewing Your Software’s Version We recommend periodically checking IPEVO.com for the latest version of the P2V software. To determine the software version you are currently running, do one of the following: Windows – Right-click the Ziggi icon in the system taskbar, and click About. -
Page 8: System Requirements
• Insert the CD-ROM into your computer’s drive. Follow the prompts to complete the installation of the P2V software. A black and white Ziggi icon will appear in your taskbar, which can be used to open or close the software. -
Page 9: Getting To Know Ziggi (Key Features)
The LED gives you an easy way to know whether Ziggi is operating: white for operating, off for not. When you start the Ziggi software, the LED will light up. The LED has been positioned on the top of the camera so it will not reflect on any digital screens you might be capturing. -
Page 10: P2V Software Introduction
• Camera mode – This is the default mode upon software startup. This mode shows the current video capture coming from the Ziggi camera. In this mode, you are also able to change aspects of the image such as exposure, mirroring, and resolution. -
Page 11: Basics Of The P2V Software
Basics of the P2V Software Basics of the P2V Software Please review the basic elements of the three modes of the P2V software: A – Mode Tab One of three modes can be selected by clicking on the appropriate button in the Mode Tab. B –... -
Page 12: Review Mode
Basics of the P2V Software To review snapshots you’ve taken (see Page 20), enter Review mode by clicking on the “review” tab on the left-hand side of the software. A – Image Pane This shows the currently selected snapshot. B – Menu This gives you some basic tools to manipulate the selected snapshot. -
Page 13: Getting A Great Image - Five Considerations
• Image size - How large or small the subject appears in the frame (i.e. the window of the Ziggi software). When dealing with text, it is essential the text appears large enough for its intended audience to read. -
Page 14: Image Size
When capturing a document, you will likely position it on the tabletop, on the same plane as your Ziggi base. When capturing close-up details or text passages from a document, you may find it handy to shift the document as you move from detail to detail, essentially scrolling through the text as necessary. -
Page 15: Image Orientation
Illustration of Landscape versus Portrait Camera Lens Orientation The top of the Ziggi camera lens is located 90° counterclockwise from the square top of the camera body. With the camera head in its fully-extended position, documents will need to be placed perpendicular to the camera stand (as opposed to parallel) for text to be rendered “right side up”... -
Page 16: Changing Orientation
Ziggi’s camera head is expressly designed to give you an easy way to alter orientation. From its fully-extended position, Ziggi can be swiveled 180° clockwise and 90° counterclockwise. Find the position that works best for yourself and your subject. For example, if you are giving a presentation and need access to the subject for a hands-on demonstration or to frequently change its position, you might consider moving the stand to one side of the subject—and changing... -
Page 17: Exposure
Consider the following methods to achieve optimal exposure for your image: • Change the exposure in the room – This could include using a desk lamp near the Ziggi to shine additional light on the subject, turning on room lights, opening or closing curtains, etc. -
Page 18: Auto Exposure
• To Turn on Auto Exposure: Click the Auto tab in the P2V software, and select “On.” The sun icon next to Auto will turn green. Ziggi will now constantly determine the optimal exposure for your image, and may adjust exposure at any time. -
Page 19: Focus
Ziggi in Continuous mode will ensure your image is always in sharp focus. Single (S) mode: In Single mode, Ziggi will stay at a single focal length, and will not try to constantly adjust itself. This mode is ideal for manual control of focus. If you are capturing a text document laid on the table which is not moving, single mode will be sufficient for sharp focus. -
Page 20: Resolution
Resolution Resolution Resolution describes the amount of detail (information) an image holds. High resolutions relay more information (and therefore more detail), and also consume more computing power. Low resolutions communicate less detail, but are also less demanding of computer resources. Resolution is measured in pixels, the smallest part of a picture element. -
Page 21: Snapshots
The Timer provides a delay (in seconds) between the time you press the Snapshot button, and the time when Ziggi actually takes the snapshot. You might find this delay necessary to avoid any shake in the camera body that could result in a blurry image. Using the Timer eliminates this possibility. -
Page 22: Projecting Your Image
Projecting Your Image Ziggi’s image quality and high resolution are perfect for large-screen projections in the classroom or conference room. In general, you’ll need Ziggi, your PC or Mac, and a separate projector device (not included, sold separately). In most cases, Full Screen mode is preferred for projection. To enter Full Screen mode, click on the “full screen”... -
Page 23: Preparing Your Setup For Projection
Preparing Your Setup for Projection Preparing for Projection You’ll need to mirror the content on your desktop (that is, the full screen of Ziggi’s video capture) and redirect it to your projector device. Please refer to your projector documentation for information specific to your projector. -
Page 24: Advanced Settings
In the upper right-hand corner of the P2V software screen, along with the usual minimize and exit functions, there is a Help link (the question mark), which leads to the IPEVO.com website, and a settings link (the wrench), which leads to advanced settings. -
Page 25: Image Adjustment Customizations
• About P2V – This section displays the software version currently in use. A “Check for updates” link is available, which will take you to the IPEVO website in order to check for the latest version. • Language – Switch between English, Traditional Chinese, and Japanese. -
Page 26: Using Ziggi In Other Ways
Using Ziggi in Other Ways While Ziggi is designed as a document camera, it can also be used as a web camera/conferencing camera with Skype and many other applications. Ziggi’s top section can be rotated up, such that the camera is pointing horizontally rather than down. -
Page 27: Anti-Glare Shield
You may experience undesirable glare in your image from reflected light. Possible sources of reflected light include overhead lights or a desk lamp directed at the subject. To reduce or eliminate this glare, Ziggi comes with an Anti-Glare Shield. Mounting the Anti-Glare Shield To mount the Anti-Glare Shield, align the grooves on the underside of the shield with the sides of the camera head. -
Page 28: Closing And Exiting The P2V Software
Right-click the Ziggi taskbar icon, and select Close. Macintosh – Select Ziggi > Quit Ziggi, or press the Command + Q quit shortcut. Keyboard Shortcuts Here is a list of keyboard shortcuts which may facilitate your use of Ziggi: Function Mode Windows... -
Page 29: Troubleshooting And Faq
Decrease resolution so that frame rate increases for smoother movement. See Page 20. Can I record video with Ziggi? Ziggi does not have the capability to record video. There are several third-party applications that may be used in conjunction with Ziggi to record video. IPEVO cannot offer technical assistance for these third-party applications. -
Page 30: Safety Information
• “Mac” and “Macintosh” are registered trademarks of Apple Computer, Inc., registered in the US and other countries. © 2011 IPEVO Inc. All rights reserved. IPEVO, Point 2 View, the IPEVO logo, and other IPEVO marks are owned by IPEVO Inc. and may be registered. All other trademarks are the property of their respective owners.
