The Basics

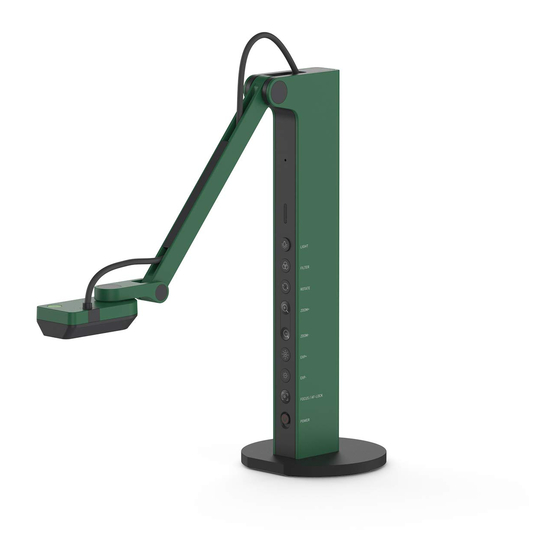

VZ-R HDMI/USB Dual Mode 8MP Document Camera captures all your material — documents, textbooks,
artwork, devices and 3D objects — and streams real-time images directly to your TV or projector via HDMI,
skipping the need for a computer. It is also compatible with most monitors with an HDMI input. In addition, VZ-R
also supports USB connection for using with a computer when an HDMI connection is not available.

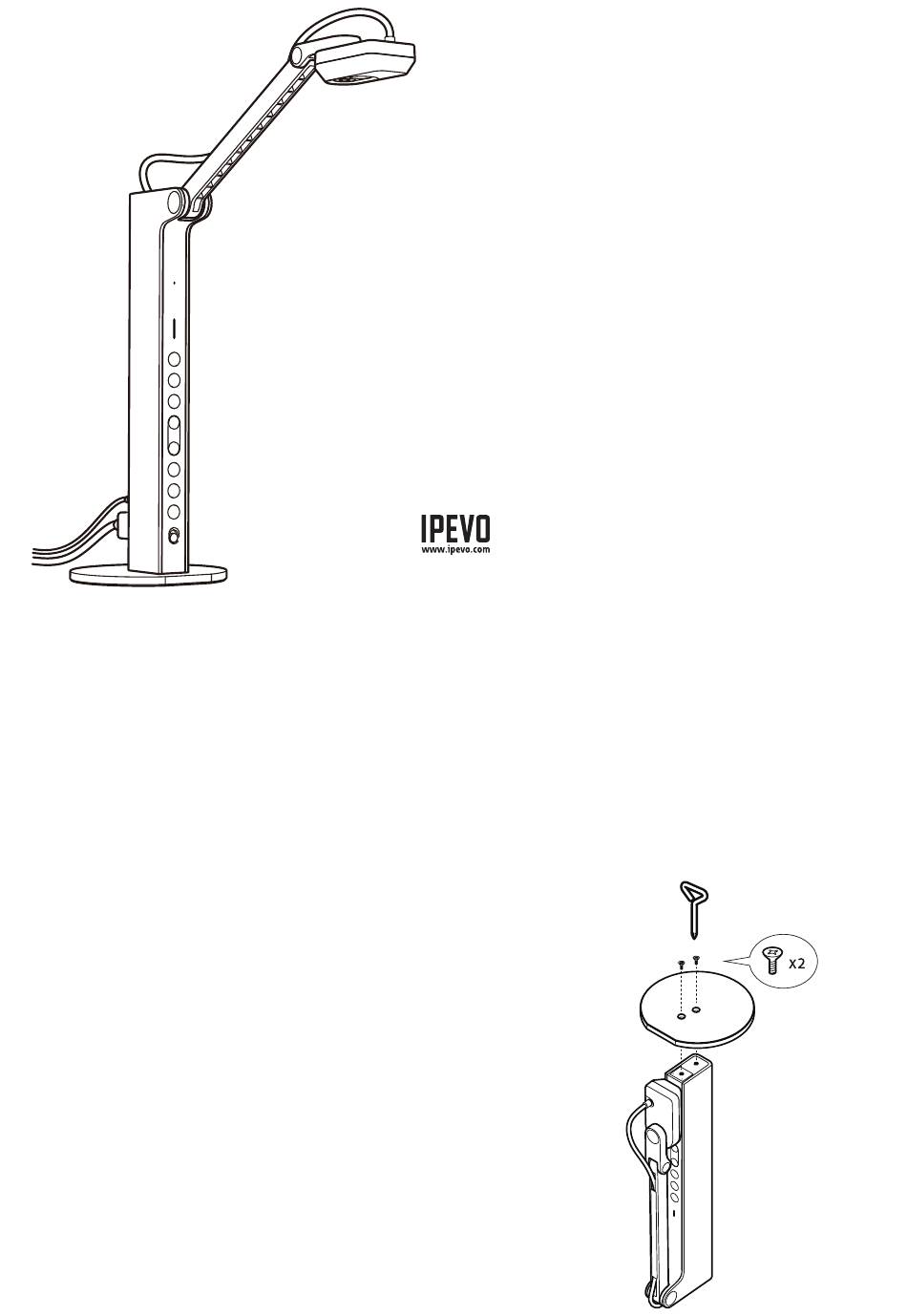

Attaching the Weighted Base
VZ-R consists of two parts — an 8MP camera with a versatile multi-
jointed stand, and a weighted base. Before using, you'll first need to
manually attach VZ-R's base to its stand. Please use the screwdriver
(included) to secure the base to the stand using the included screws.
Please be careful not to drop the base while doing so.
Quick Start Guide
VZ-R HDMI/USB Dual Mode
8MP Document Camera
Customer Service
Email: cs@ipevo.com
Tel: +1-408-490-3085 (USA)

Advertisement

loading
Need help?

Need help?

Do you have a question about the VZ-R and is the answer not in the manual?

Questions and answers

Summary of Contents for Ipevo VZ-R

  • Page 1: The Basics

    3D objects — and streams real-time images directly to your TV or projector via HDMI, skipping the need for a computer. It is also compatible with most monitors with an HDMI input. In addition, VZ-R also supports USB connection for using with a computer when an HDMI connection is not available.
  • Page 2 LED Indicator Two colors — Green and White. Green indicates that Turn the built-in LED light on/off. VZ-R is powered on. White indicates that VZ-R is in use Filter and providing an image. Apply video filter to the live image.
  • Page 3 Please follow the steps below to connect your VZ-R directly to a TV, projector or monitor via HDMI: 1. Connect an HDMI cable (not included) to the HDMI port of VZ-R. Then, connect the other end of the cable to the HDMI port of a TV, projector or monitor.
