Summary of Contents for Ipevo VZ-1 HD
-

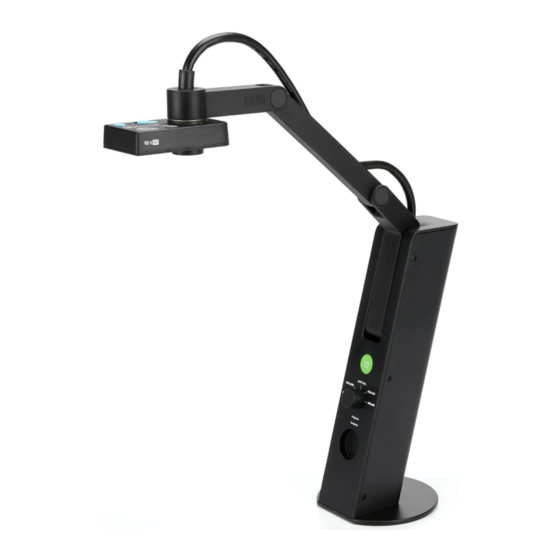

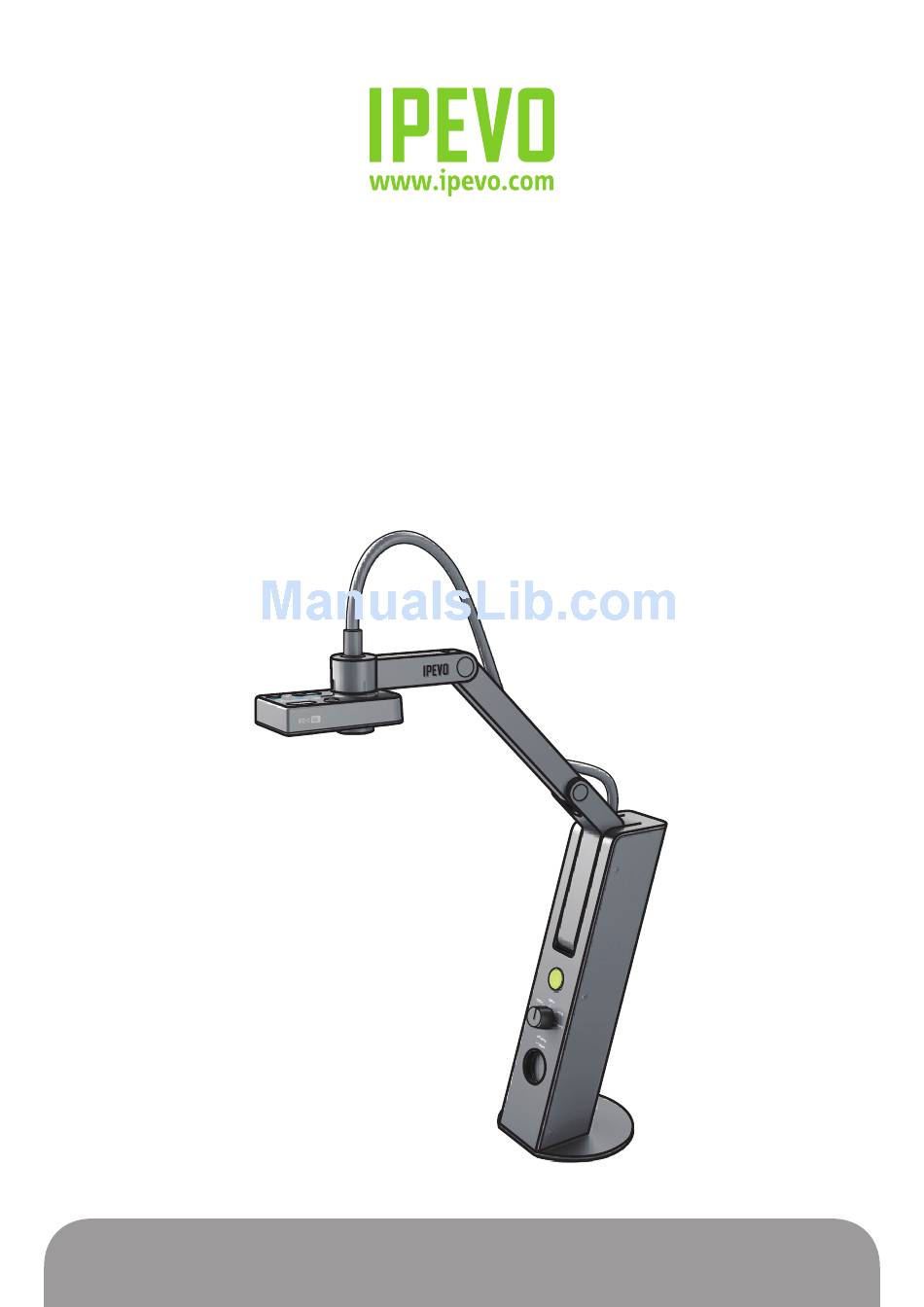

Page 1: Document Camera
VZ-1 HD VGA/USB Document Camera User Manual www.ipevo.com... -
Page 2: Table Of Contents
System Requirements Highest Resolutions Requirements Installation 9-10 PC or Mac Installation Projector or Monitor Installation Getting to Know VZ-1 HD (Key Features) 11-12 IPEVO Presenter Software Introduction Switching between software modes Basics of the Presenter Software Camera mode Full Screen mode... - Page 3 Taking a snapshot Timer function Evernote Evernote (PC or Mac only) Logging in to Evernote Evernote (cont'd) Using VZ-1 HD for Evernote Projecting Your Image Full Screen mode Preparing for Projection (PC or Mac) Mirroring your desktop Advanced Settings Instant Preview...
-
Page 4: Introduction
Additionally, VZ-1 HD features a powerful zoom (up to 6x magnification) as well as a Macro mode which allows for sharp focus on very close subjects up to 2 inches (5 cm) away. For these reasons, VZ-1 HD is ideal for capturing fine details of documents and pictures. -
Page 5: Contents
IPEVO has a longstanding commitment to green business practices, and this extends to our product packaging. We like our products to do the talking, not fancy packaging! Your VZ-1 HD has been shipped with a minimum of packaging materials, particularly a minimum of plastic. The plain craft paper box (which does not contain high-resolution graphics or wasteful multi-color printing) is recyclable, as are the cardboard cut-outs keeping the VZ-1 HD in place. -
Page 6: Getting Help
Getting Help Getting Help We want to help you enjoy your VZ-1 HD, and we are always available to answer any questions or offer technical and troubleshooting assistance. Consider using one or more of these resources: • IPEVO.com – The latest versions of the VZ-1 HD software, user manual, FAQ, and other downloads are available at this link: http://support.ipevo.com/... -
Page 7: Version Information
Version Information Viewing Your Software’s Version We recommend periodically checking IPEVO.com for the latest version of the Presenter software. To determine the software version you are currently running, do one of the following: Windows – Right-click the VZ-1 HD icon in the system taskbar, and click About. -
Page 8: System Requirements
• 256MB of dedicated video memory Highest Resolutions Requirements (PC or Mac) To operate VZ-1 HD at the two highest resolutions, there are additional system requirements. To operate at 2048x1536 (3 Megapixel) resolution, a minimum video RAM (associated with your graphics card) of 144MB is required. -
Page 9: Installation
Installation Installation Your VZ-1 HD document camera has two modes and can be connected to a computer (PC or Mac) via USB or directly to a projector or monitor via VGA. PC or Mac Installation 1. Insert the CD-ROM into your computer's drive. Follow the prompts to complete the installation of the IPEVO Presenter software.*... - Page 10 Monitor or Projector Installation VZ-1 HD can also be connected directly to a monitor or projector for large-screen projection. 1. Connect the USB power adapter to the port marked "DC 5V" on the back of VZ-1 HD. Plug the adapter into the wall.
-
Page 11: Getting To Know Vz-1 Hd (Key Features)
Use this port when connecting directly to a VGA-compatible monitor or projector (VGA cable not included). E – Power This button powers VZ-1 HD. Press once when beginning to use VZ-1 HD, and press again to turn the unit off. F – Resolution selector This allows you to select a resolution when connecting directly to a monitor or projector via VGA. - Page 12 Set your focus to one of two modes. Continuous (C) causes VZ-1 HD to constantly determine the best focus for your image. Single (S) causes VZ-1 HD to stay at a single focus. See Page 23 for more on focus.
-
Page 13: Ipevo Presenter Software Introduction
This is the default mode upon software startup. This mode shows the current video capture coming from the VZ-1 HD camera. In this mode, you are also able to change aspects of the image such as exposure, mirroring, and resolution. See Page 16 to get started with capturing your image. -
Page 14: Basics Of The Presenter Software
Basics of the Presenter Softwar Basics of the Presenter Software Please review the basic elements of the four modes of the Presenter software: A – Mode Tab One of four modes can be selected by clicking on the appropriate button in the Mode Tab. B –... -
Page 15: Basics Of The Presenter Software (Cont'd)
Basics of the Presenter Software (cont'd) To review snapshots you've taken (see Page 27), enter Review mode by clicking on the “review” tab on the left-hand side of the software. A – Image Pane This shows the currently selected snapshot. B –... -
Page 16: Getting A Great Image - Five Considerations
Getting a Great Image – Five Considerations Getting a Great Image – Five Considerations When configuring the camera for your desired image, you will be chiefly concerned with the following five elements: • Image size - How large or small the subject appears in the frame (the window or screen). When dealing with text, it is essential the text appears large enough for its intended audience to read. -
Page 17: Image Size
When capturing a document, you will likely position it on the tabletop, on the same plane as your VZ-1 HD base. When capturing close-up details or text passages from a document, you may find it handy to shift the document as you move from detail to detail, essentially scrolling through the text as necessary. -
Page 18: Image Size (Cont'd)
Note that while the VZ-1 HD has ample resolution to capture larger A3-sized documents, VZ-1 HD would need to be placed on something (such as a stack of books) to make the camera high enough to completely capture an A3 document. -
Page 19: Image Orientation
Landscape versus Portrait Camera Lens Orientation The top of the VZ-1 HD camera lens is located 90° counterclockwise from the square top of the camera body. With the camera head in its fully-extended position, documents will need to be placed perpendicular to the camera stand (as opposed to parallel) for text to be rendered “right side up”... -
Page 20: Changing Orientation
VZ-1 HD's camera head is expressly designed to give you an easy way to alter orientation. From its fully-extended position, VZ-1 HD can be swiveled 180° clockwise and 90° counterclockwise. Find the position that works best for yourself and your subject. For example, if you are giving a presentation and need access to the subject for a hands-on demonstration or to frequently change its position, you might consider moving the stand to one side of the subject—and changing... -
Page 21: Exposure
Consider the following methods to achieve optimal exposure for your image: • Change the exposure in the room: This could include using a desk lamp near the VZ-1 HD to shine additional light on the subject, turning on room lights, opening or closing curtains, etc. -
Page 22: Exposure (Cont'd)
With auto exposure on, if you are capturing a bright iPad screen and it dims, the VZ-1 HD will adjust exposure to brighten the image. If the screen brightens again, VZ-1 HD will adjust exposure to darken the image. -
Page 23: Focus
Single (S) mode: In Single mode, VZ-1 HD will stay at a single focal length, and will not try to constantly adjust itself. This mode is ideal for manual control of focus. If you are capturing a text document laid on the table which is not moving, single mode will be sufficient for sharp focus. -
Page 24: Resolution
(and therefore more detail), and also consume more computing power. Low resolutions communicate less detail but are also less demanding of computer resources. Resolution is measured in pixels, the smallest part of a picture element. VZ-1 HD is capable of several high-definition resolutions. Changing Resolution (PC or Mac) To change resolution, click on the Resolution tab in Camera mode. -
Page 25: Vga Resolution
When connecting directly to a monitor or projector via VGA, use the resolution selector on the front of the stand to change resolution. Please note that VZ-1 HD supports fewer resolutions in Projector mode than it does in Computer mode. -
Page 26: Resolution And Frame Rate
Resolution and Frame Rate Resolution and Frame Rate Generally, as resolution increases, frame rate decreases. Frame rate is a measure of how many distinct images are captured in a single second to make up the full-motion video perceived. Because the top resolutions contain an extraordinary amount of information, frame rate will significantly drop with these resolutions. -
Page 27: Snapshots
The Timer provides a delay (in seconds) between the time you press the Snapshot button and the time when VZ-1 HD actually takes the snapshot. You might find this delay necessary to avoid any shake in the camera body that could result in a blurry image. Using the Timer eliminates this possibility. -
Page 28: Evernote
Evernote home page where you may sign up for an account. After successful account creation or login, you will be asked if you wish to allow IPEVO access to your Evernote account. Click the Authorize button. -
Page 29: Evernote (Cont'd)
Evernote (cont'd) Using VZ-1 HD for Evernote The Presenter software allows you to capture snapshots and then upload them (along with other files) to a notebook on your Evernote account. To do so: 1. Take a snapshot – Hit the "Take a Snapshot" button. You'll be taken to a window where you can take a snapshot that will save as a .jpg file to your hard drive. -
Page 30: Projecting Your Image
Projecting Your Image (PC or Mac) VZ-1 HD's image quality and high resolution are perfect for large-screen projections in the classroom or conference room. You may connect VZ-1 HD directly to a projector or monitor for this purpose as previous described (... -
Page 31: Preparing For Projection (Pc Or Mac)
Preparing for Projection (PC or Mac) You'll need to mirror the content on your desktop (that is, the full screen of VZ-1 HD's video capture) and redirect it to your projector device. Please refer to your projector documentation for information specific to your projector. -
Page 32: Advanced Settings
Advanced Settings (PC or Mac only) Advanced Settings (PC or Mac only) There are a number of advanced settings available to you to further customize the VZ-1 HD experience. In the upper right-hand corner of the Presenter software screen, along with the usual minimize and exit functions, there is a Help link (the question mark), which leads to the IPEVO.com website, and a... -
Page 33: Advanced Settings (Cont'd)
• About IPEVO Presenter – This section displays the software version currently in use. A “Check for updates” link is available, which will take you to the IPEVO website in order to check for the latest version. • Language –... -
Page 34: Closing And Exiting The Presenter Software
Right-click the VZ-1 HD taskbar icon, and select Close. Macintosh – Select VZ-1 HD > Quit VZ-1 HD, or press the Command + Q quit shortcut. Keyboard Shortcuts Here is a list of keyboard shortcuts which may facilitate your use of VZ-1 HD:... -
Page 35: Troubleshooting And Faq
VZ-1 HD will not turn on (VGA monitor or projector). Ensure VZ-1 HD is plugged in to your device with a VGA cable (not included). Ensure the USB power adapter is connected and plugged into the wall. Ensure you have pressed the power button on the front of the stand. - Page 36 Can I record video with VZ-1 HD? VZ-1 HD does not have the capability to record video. There are several third-party applications that may be used in conjunction with VZ-1 HD to record video. IPEVO cannot offer technical assistance for these third-party applications.
-
Page 37: Safety Information
• “Mac” and “Macintosh” are registered trademarks of Apple Computer, Inc., registered in the US and other countries. © 2013 IPEVO Inc. All rights reserved. IPEVO, IPEVO Presenter,VZ-1 HD,the IPEVO logo,and other IPEVO marks are owned by IPEVO Inc. and may be registered. All other trademarks are the property of their respective owners.
