The Basics

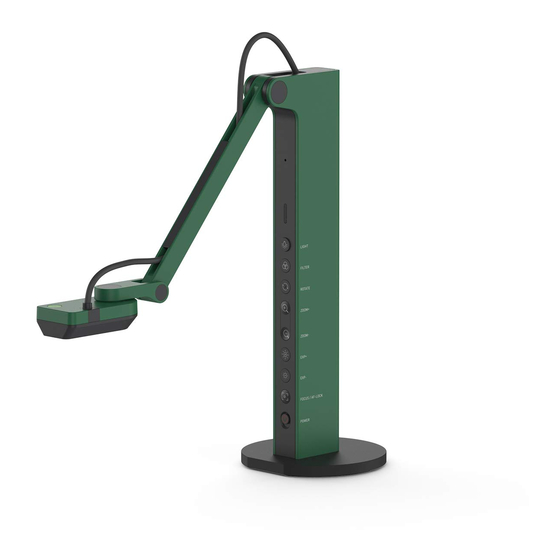

VZ-R HDMI/USB Dual Mode 8MP Document Camera captures all your material — documents,

textbooks, artwork, devices, and 3D objects — and streams real-time images directly to your TV,

monitor, or projector via HDMI, skipping the need for a computer. It also features a USB connection

for using with a computer.

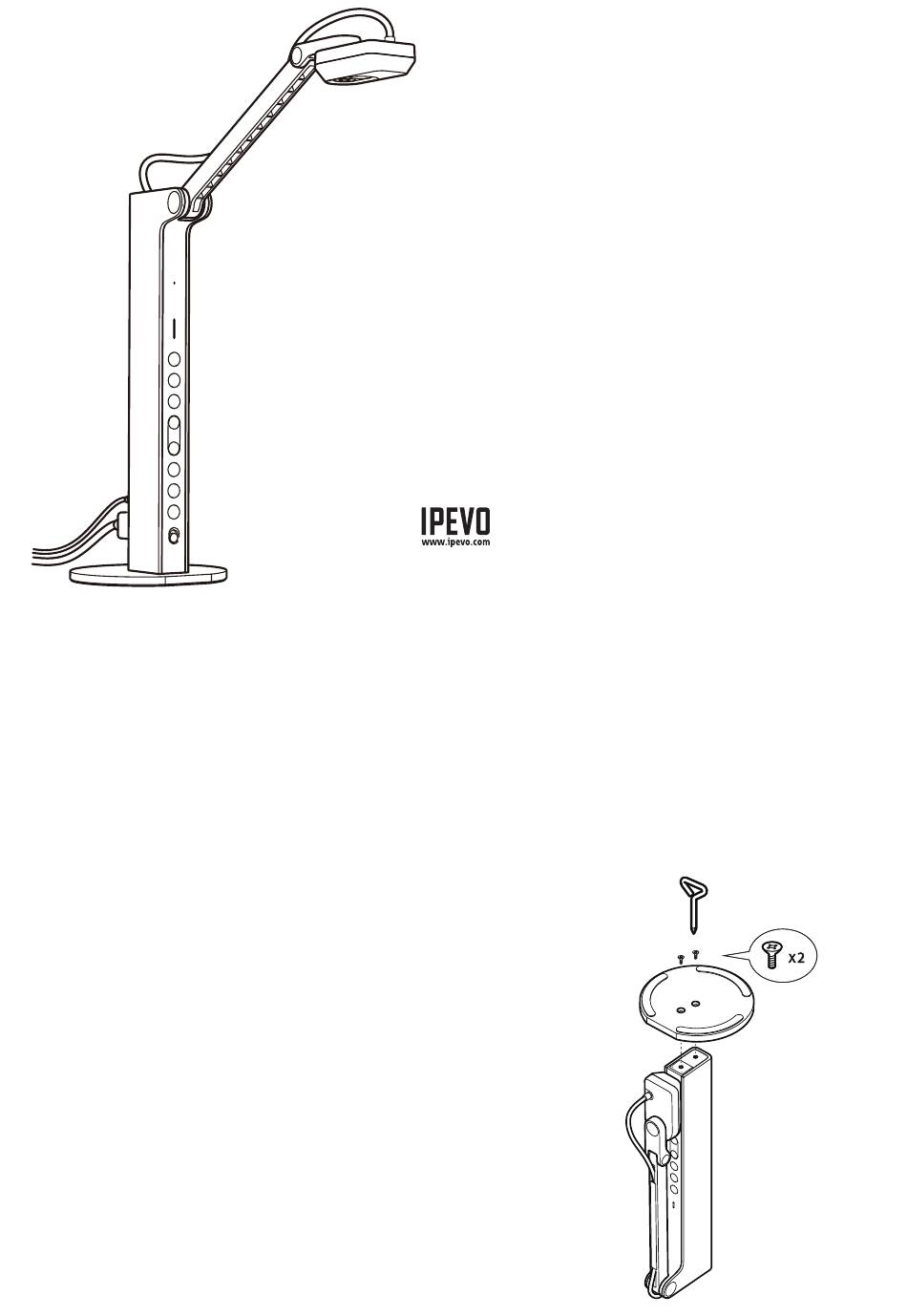

Attaching the Weighted Base

VZ-R consists of two parts — an 8MP camera with a versatile

multi-jointed stand, and a weighted base. Before you start using

VZ-R, please attach the weighted base to its stand using the

included screwdriver and screws. And please be careful not to

drop the base while doing so.

Quick Start Guide

VZ-R HDMI/USB Dual Mode 8MP

Document Camera

Customer Service

Email: cs@ipevo.com

Tel: +1-408-490-3085 (USA)

Need help?

Do you have a question about the VZ-R and is the answer not in the manual?

Page 1 Copyright© 2020 IPEVO Corp. All rights reserved The Basics VZ-R HDMI/USB Dual Mode 8MP Document Camera captures all your material — documents, textbooks, artwork, devices, and 3D objects — and streams real-time images directly to your TV, monitor, or projector via HDMI, skipping the need for a computer. It also features a USB connection for using with a computer.
Page 2 LED Indicator Turn the built-in LED light on/off. Two colors — Green and White. Green indicates that VZ-R has been powered and turned on. Filter White indicates that it is in use and providing an Apply video filter to the live image.
Page 3 Please follow the steps below to connect your VZ-R directly to a TV, projector or monitor via HDMI: 1. Connect an HDMI cable (not included) to the HDMI port of VZ-R. Then, connect the other end of the cable to the HDMI port of a TV, projector or monitor.
Page 4 Do not use/store the product in the following places: ・ Near heat sources ・ Near steam or greasy smoke Precaution ・ Locations with high humidity ・Sandy or dusty places...
