Ipevo VZ-X User Manual
Wireless/hdmi/usb document camera
Hide thumbs
Also See for VZ-X:
- Quick start manual (14 pages) ,
- Step-by-step manual (6 pages) ,
- Manual (4 pages)
Advertisement
Quick Links

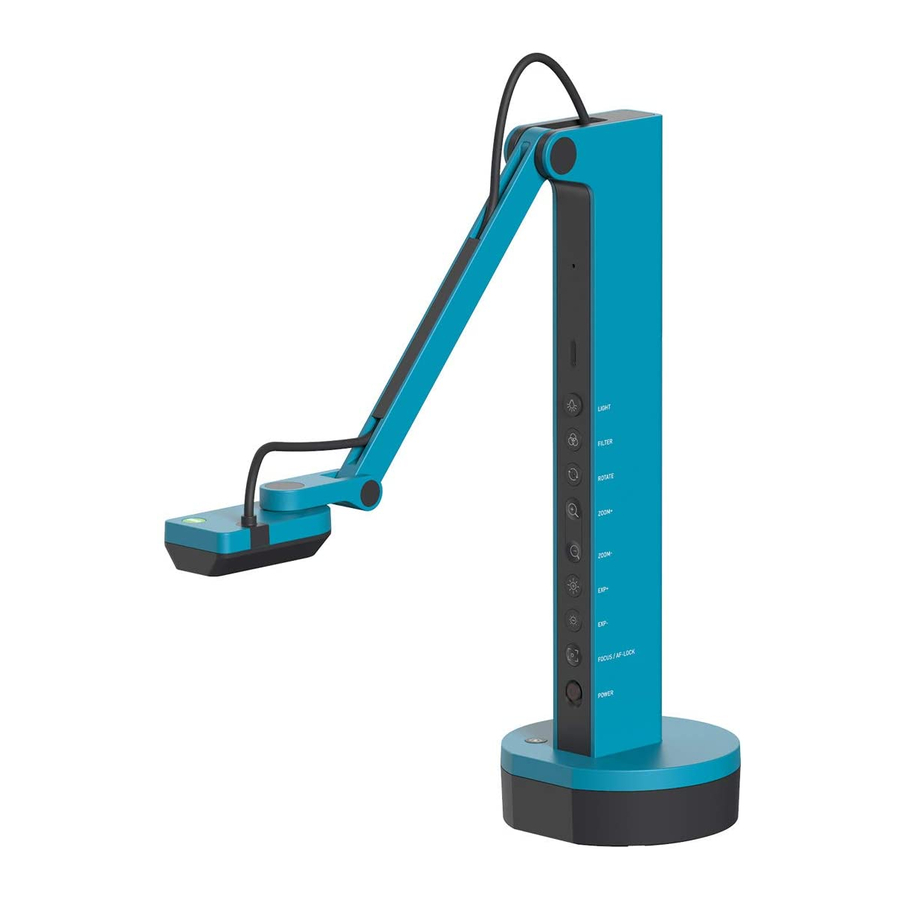

VZ-X Wireless/HDMI/USB Document Camera
Introduction
IPEVO VZ-X is a versatile 8-megapixel document camera that supports USB, HDMI, and Wi-Fi
(2.4GHz) modes. This camera allows for easy live imaging at various indoor settings—offices,
classrooms, and conference rooms—once connected to a PC/laptop/projector/TV or other
compatible devices.

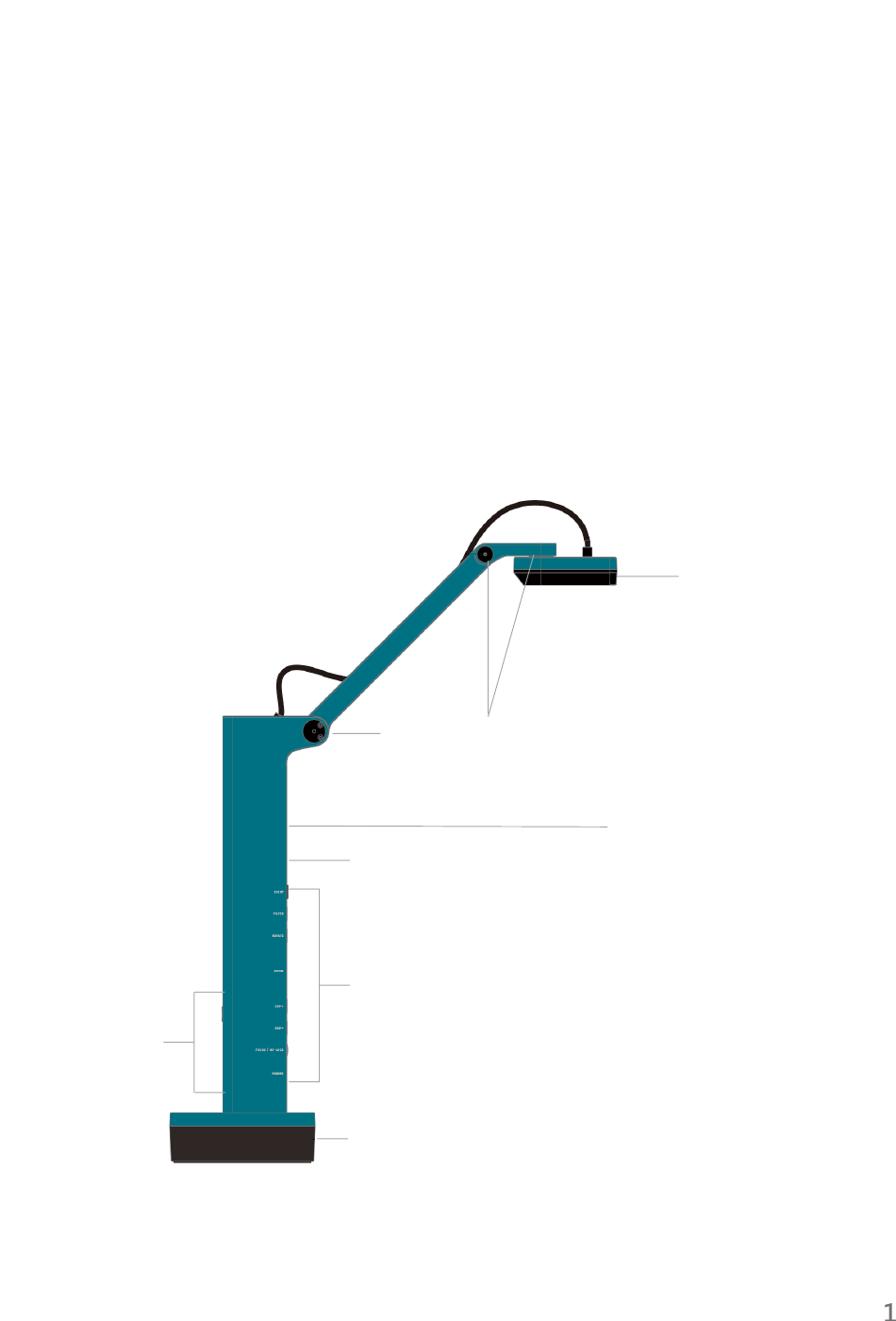

ü Overview
Switches & Ports
USB/Wi-Fi/HDMI
switch; power
frequency switch;
USB/HDMI ports
Multi-jointed Stand
Capture images at any angles.
LED Indicators
Find out the Wi-Fi, streaming,
and power status
Control Buttons
Power on/off VZ-X and LED lighting; change live
image settings.
Base
A small and stable footprint that contains battery.
Camera
Its 8-megapixel sensor
allows high-quality live
streaming at a
resolution up to 3264 x
2448p (USB mode).
Wi-Fi
It allows for wireless live image
streaming via 2.4GHz.
