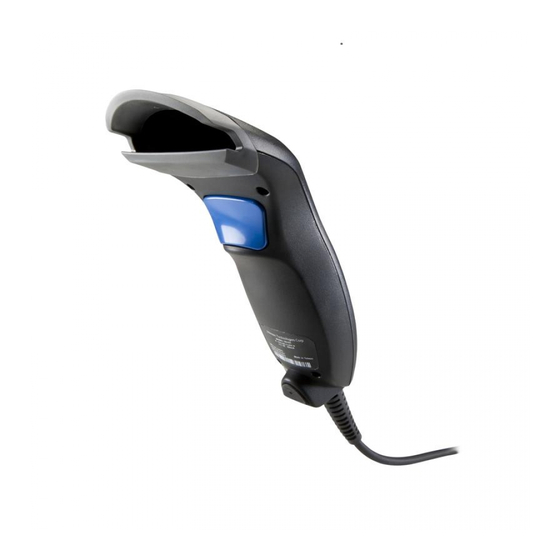

Intermec SG10T User Manual

Tethered scanner
Hide thumbs Also See for SG10T:
Table of Contents

Advertisement

Quick Links

SG 10T
Tethered Scanner
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG10T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec SG10T

Summary of Contents for Intermec SG10T

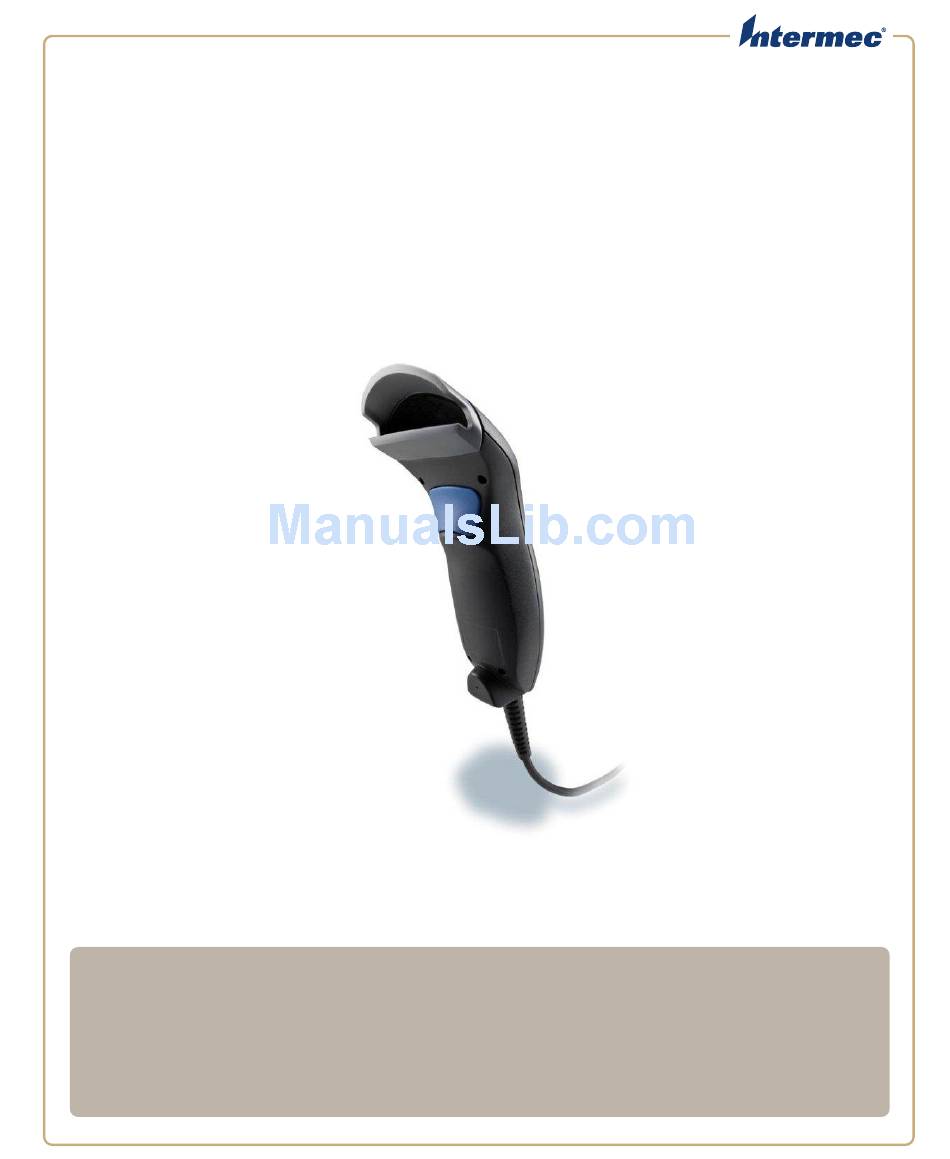

  • Page 1 SG 10T Tethered Scanner User’s Guide...
  • Page 2 Intermec Technologies Corporation. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. © 2011 by Intermec Technologies Corporation. All rights reserved.

  • Page 3: Table Of Contents

    Understanding the SG10T Behavior ........
  • Page 4 Upgrading the SG10T ........

  • Page 5: Before You Begin

    Safety Information Your safety is extremely important. Read and follow all warnings and cautions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

  • Page 6: Global Services And Support

    Web Support Visit the Intermec web site at www.intermec.com to download our current manuals (in PDF). To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor. Visit the Intermec technical knowledge base (Knowledge Central) at www.intermec.com and click Support >...

  • Page 7: Who Should Read This Manual

    This guide is for the person who is responsible for installing, configuring, and maintaining the SG10T. This guide provides you with information about the features of the SG10T, and how to install, configure, operate, maintain, and troubleshoot it. Related Documents The Intermec web site at www.intermec.com...
  • Page 8 Before You Begin viii SG10T Tethered Scanner User’s Guide...

  • Page 9: Introducing The Sg10T

    Introducing the SG10T This chapter provides an overview of the SG10T. This chapter covers these topics: • What is the SG10T Tethered Scanner Supported Interfaces • • Powering the SG10T • Connecting the Interface Cable • Removing the Interface Cable •...

  • Page 10: What Is The Sg10T Tethered Scanner

    SG10T Supported Interfaces The SG10T supports the following interfaces: • • Keyboard wedge Powering the SG10T The SG10T is powered through the cable that connects it to the host computer. No external supply is necessary. SG10T Tethered Scanner User’s Guide...

  • Page 11: Connecting The Interface Cable

    Chapter 1 — Introducing the SG10T Connecting the Interface Cable The SG10T comes either with a USB or a keyboard wedge cable for connecting it to the host computer. To connect the cable, insert it and press firmly until inserted all the way.

  • Page 12: Accessories

    Chapter 1 — Introducing the SG10T Accessories You will need one or more of the following cables for your SG10T. SG10T Cable List Cable Part Number USB cable CAB-SG10-USBxx Keyboard wedge cable CAB-SG10-KBWxx SG10T Tethered Scanner User’s Guide...

  • Page 13: Scanning With The Sg10T

    Scanning with the SG10T This chapter explains how to scan bar codes and includes the following sections: • Understanding the SG10T Behavior Scanning Bar Codes •...

  • Page 14: Understanding The Sg10T Behavior

    Chapter 2 — Scanning with the SG10T Understanding the SG10T Behavior The SG10T uses lights and beeps to indicate if a bar code has been successfully decoded. The following sections describe lights and beeps. Understanding the Status Light The status light on the SG10T flashes green. The flash is either long or short depending on the status of the scanner.

  • Page 15: Understanding The Beeps

    Chapter 2 — Scanning with the SG10T Understanding the Beeps The SG10T beeps to give you audio feedback when performing some functions. For example, you hear a beep each time you scan a valid bar code. Default SG10T Beep Descriptions...

  • Page 16: Scanning Bar Codes

    Intermec web site at www.intermec.com/EasySet. Simply download and install it. To scan a bar code label with a linear imager 1 Point the SG10T at the bar code label and hold the SG10T at a slight angle, close enough to the label (a few cm/inches maximum).
  • Page 17 Tip: Depending on your screen resolution, you can scan bar codes displayed on your computer screen. Otherwise, print out and scan bar codes. When the SG10T successfully reads a bar code label, it beeps one time, the status light briefly turns green, and the scanner beam turns off.
  • Page 18 Chapter 2 — Scanning with the SG10T SG10T Tethered Scanner User’s Guide...

  • Page 19: Sg10T Interfaces

    SG10T Interfaces This chapter explains the different interfaces available with the SG10T: • USB Interface Keyboard Wedge •...

  • Page 20: Usb Interface

    Chapter 3 — SG10T Interfaces USB Interface The SG10T can be connected to a USB host using the provided USB cable. It is USB and is powered by the host. See the “Accessories” on page 4 for a list of part numbers for the different cables.

  • Page 21: Keyboard Wedge

    Chapter 3 — SG10T Interfaces Keyboard Wedge The SG10T can be connected to a host using a keyboard wedge cable. Power is provided by the host. See the “Accessories” on page 4 for a list of part numbers for the different cables...
  • Page 22 Chapter 3 — SG10T Interfaces Note: For additional keyboards see EasySet. North American (QWERTY) (*) *.C010$* .C010$ German (QWERTZ) *.C011$* .C011$ French (AZERTY) *.C012$* .C012$ Spanish (QWERTY) *.C013$* .C013$ Italian (QWERTY) *.C014$* .C014$ Swiss German (QWERTZ) *.C016$* .C016$ Czech Republic (QWERTY) *.C017$*...
  • Page 23 Chapter 3 — SG10T Interfaces Japanese 106/109-key (QWERTY) *.C009$* .C009$ Hungarian (QWERTZ) *.C021$* .C021$ Czech Republic (QWERTZ) *.C022$* .C022$ Swiss French (QWERTZ) *.C023$* .C023$ Hungarian 101-key (QWERTY) *.C024$* .C024$ French Canadian (QWERTY) *.C025$* .C025$ Swedish (QWERTY) *.C026$* .C026$ Danish (QWERTY) *.C027$*...
  • Page 24 Chapter 3 — SG10T Interfaces Norwegian (QWERTY) *.C029$* .C029$ Belgian French (AZERTY) *.C030$* .C030$ Pourtuguese (QWERTY) *.C031$* .C031$ Slovakian (QWERTY) *.C032$* .C032$ Brazilian Portuguese (QWERTY) *.C033$* .C033$ English Canadian (QWERTY) *.C034$* .C034$ SG10T Tethered Scanner User’s Guide...

  • Page 25: Configuring The Sg10T

    Configuring the SG10T This chapter provides some basic configuration bar codes and information on how to configure the SG10T using the EasySet configuration application. This chapter includes: • Basic Setup with Configuration Bar Codes • Configuring Your Scanner with EasySet...

  • Page 26: Basic Setup With Configuration Bar Codes

    This chapter provides you with configuration bar codes and procedures for a basic setup. Most of the SG10T parameters can be configured by simply reading the corresponding configuration bar code - this is the case when you want to enable a symbology or reset your scanner to factory default settings (see “Resetting Your Scanner”...

  • Page 27: Configuring The Preamble Or Postamble

    Chapter 4 — Configuring the SG10T Configuring the Preamble or Postamble Preamble and postamble are configured by default to <LF>+<CR>. For certain applications you may need to change this setting. The following procedure shows you how to compose a preamble and postamble using the most current characters.
  • Page 28 Chapter 4 — Configuring the SG10T Carriage Return *$M* SG10T Tethered Scanner User’s Guide...
  • Page 29 Chapter 4 — Configuring the SG10T SG10T Tethered Scanner User’s Guide...
  • Page 30 Chapter 4 — Configuring the SG10T 4 Scan again the Preamble or Postamble bar code, depending on which one you scanned in step 2: Postamble *.A013$* .A013$ Preamble *.A012$* .A012$ SG10T Tethered Scanner User’s Guide...

  • Page 31: Configuring Your Scanner With Easyset

    Configuring Your Scanner with EasySet EasySet is an Intermec configuration application that provides you with an easy way to configure your scanner. The SG10T can be configured using EasySet in offline mode, that is • sending configuration commands from EasySet to a bar code setup sheet, •...
  • Page 32 Chapter 4 — Configuring the SG10T SG10T Tethered Scanner User’s Guide...

  • Page 33: Troubleshooting And Maintaining The Sg10T

    Troubleshooting and Maintaining the SG10T Use this chapter to solve problems you may have while using the SG10T. This chapter contains these topics: • Troubleshooting the SG10T Maintaining the SG10T •...

  • Page 34: Troubleshooting The Sg10T

    Chapter 5 — Troubleshooting and Maintaining the SG10T Troubleshooting the SG10T If you have problems using the SG10T, use this chapter to find a possible solution. Calling Product Support To talk to an Intermec Product Support representative: • In the U.S.A. and Canada, call 1-800-755-5505 •...
  • Page 35 Chapter 5 — Troubleshooting and Maintaining the SG10T Problems and Possible Solutions (continued) Problem Possible Solution You pull the trigger, the Try these possible solutions. Make sure: red scanning beam • The SG10T is configured for the symbology turns on, but you you are scanning.
  • Page 36 Chapter 5 — Troubleshooting and Maintaining the SG10T Problems and Possible Solutions (continued) Problem Possible Solution You scan a The Optical setup parameter is disabled, meaning configuration bar code you cannot configure the SG10T using but the SG10T does not configuration bar codes.

  • Page 37: Maintaining The Sg10T

    Chapter 5 — Troubleshooting and Maintaining the SG10T Maintaining the SG10T To keep your SG10T in good working order, you may need to clean the scanner window. Cleaning the SG10T Clean the scanner window as often as needed for the environment in which you are using the SG10T.
  • Page 38 Chapter 5 — Troubleshooting and Maintaining the SG10T SG10T Tethered Scanner User’s Guide...

  • Page 39: Specifications And Reading Distances

    Specifications and Reading Distances This appendix contains the technical specifications and reading distances for the SG10T. • Specifications Reading Distances •...

  • Page 40: Specifications

    Appendix — Specifications and Reading Distances Specifications Use this section to find technical information about the SG10T. Physical Dimensions Length 16.4 cm (6.46 in) Height 5.4 cm (2.13 in) Width 6.7 cm (2.64 in) Weight (scanner) 105 g (3.70 oz) Weight (USB cable) 188 g (6.63 oz)
  • Page 41 Code 11 GS1 DataBar Limited Code 39* GS1 DataBar Omni-Directional Code 93 Interleaved 2 of 5 Code 128* Matrix 2 of 5 EAN/UPC* Standard 2 of 5 * = These symbologies are enabled by default. SG10T Tethered Scanner User’s Guide...

  • Page 42: Reading Distances

    0.38 mm (15 mils) 0 cm (0 in) 11 cm (4.33 in) 0.5 mm (20 mils) 1cm (0.39 in) 12 cm (4.72 in) EAN/UPC 0.33 mm (13 mils) 0 cm (0 in) 10 cm (3.94 in) SG10T Tethered Scanner User’s Guide...
  • Page 44 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2011 Intermec Technologies Corporation. All rights reserved. SG10T Tethered Scanner User’s Guide *DOC-SG10-UG01* P/N DOC-SG10-UG01...
