ADDENDUM: Ethernet Cross Cable Wiring Connection
This addendum describes the correct wiring for crossover cable connections
and replaces the opening paragraph in the "Connecting the ETHERNET Port
directly to a PC (Crossover Cable)" section in the User Manual as follows:
Connecting the ETHERNET Port directly to a PC (Crossover Cable)
You can connect the Ethernet port of the machine to the Ethernet port on your
PC, via a crossover cable with RJ-45 connectors.
Table 1 and Figure 1 define the color codes for the two existing standard types
of cross cables used in the industry. Table 2 defines how to connect the wires
to the connectors on both ends of the cable.
When manually connecting the ends of a cable, both connectors must follow
the same standard (either EIA /TIA 568A or EIA /TIA 568B).

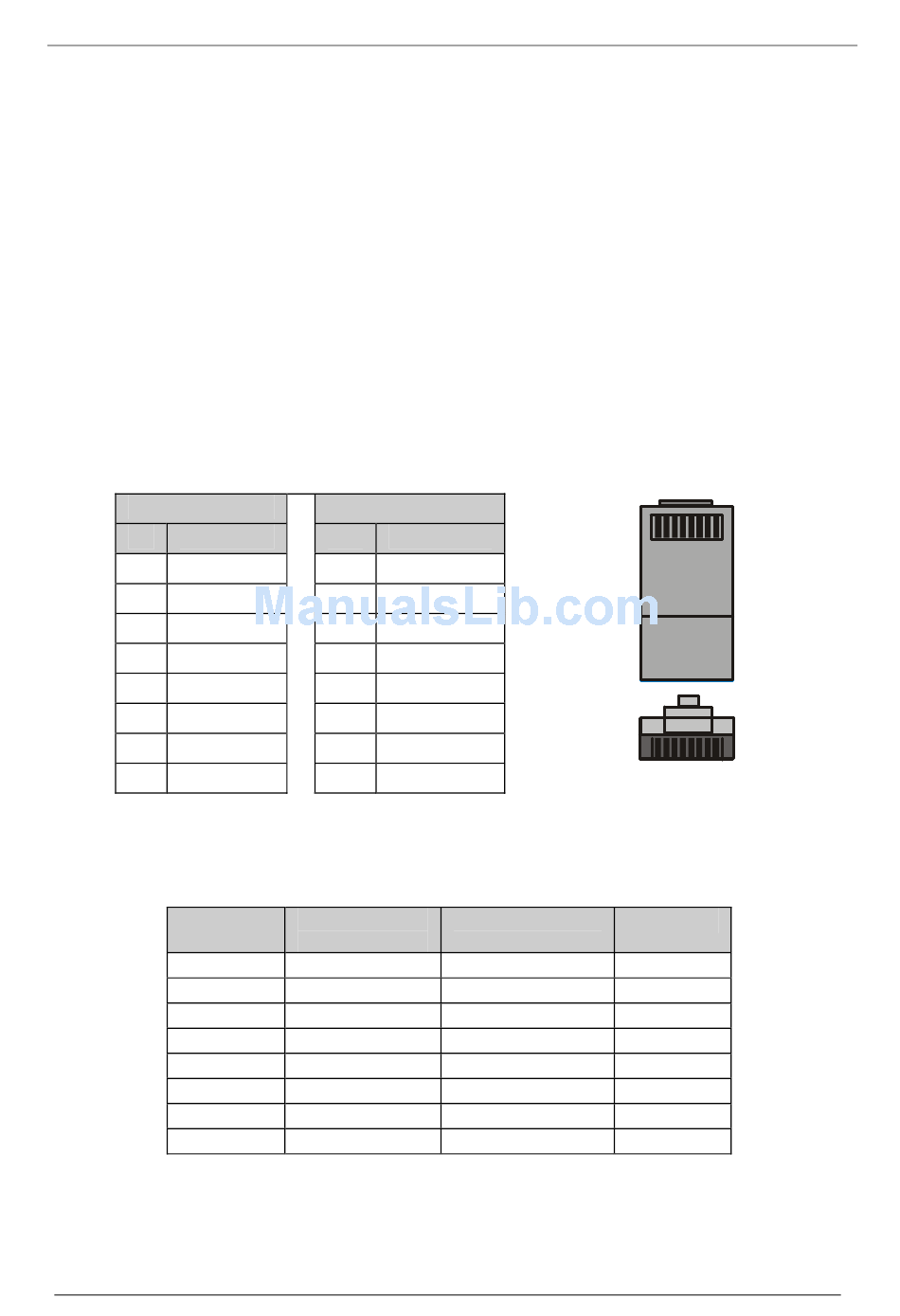

Table 1: Crossover Cable RJ-45 Types
EIA /TIA 568B
PIN Wire Color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Table 2: Wiring between Connector One and Two of the Cable
Signal Pairs
TX_D1+
TX_D1-
RX_D2+
RX_D2-
BI_D3+
BI_D3-
BI_D4+
BI_D4-
EIA /TIA 568A
PIN Wire Color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
8 Brown
PINs on PINs on Connector
Connector One Two
1 3
2 6
3 1
6 2
4 7
5 8
7 4
8 5
P/N: 2900 - 9999993
1
TOP
FRONT
1
Figure 1: RJ-45 PINOUT
Signal Pairs
RX_D2+
RX_D2-
TX_D1+
TX_D1-
BI_D4+
BI_D4-
BI_D3+
BI_D3-
