Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: 103AV, 1:3 Audio-Stereo / Video DA 104M, 1:4 Microphone Amplifier 105A, 1:5 Stereo Audio DA 105S, 1:5 High Resolution s-Video DA 105V, 1:5 High Resolution Video DA 105VB, 1:5 High Resolution Video DA... -
Page 2: Table Of Contents
Technical Specifications Figures Figure 1: 103AV Audio-Stereo / Video DA Figure 2: Connecting the 103AV 1:3 Audio-Stereo / Video DA Figure 3: 104M Microphone Amplifier Figure 4: Connecting the 104M 1:4 Microphone Amplifier Figure 5: 105A 1:5 Stereo Audio DA... - Page 3 Contents Tables Table 1: Features and Functions of the 103AV Audio-Stereo / Video DA Table 2: Technical Specifications of the 103AV 1:3 Audio-Stereo / Video DA Table 3: Features and Functions of the 104M Microphone Amplifier Table 4: Technical Specifications of the 104M 1:4 Microphone Amplifier...
-
Page 4: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 5 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 6: Overview
Overview The following sections describe the: • 103AV, 1:3 Audio-Stereo / Video DA, which accepts one audio input and one video input, provides correct buffering and isolation, and distributes these signals to three identical audio and video outputs (see section 4) •... -
Page 7: Your 103Av, 1:3 Audio-Stereo / Video Distributor
• Includes audio and video level (gain) controls • Is 12V DC fed Figure 1 and Table 1 define the 103AV 1:3 Audio-Stereo / Video DA: Figure 1: 103AV Audio-Stereo / Video DA Table 1: Features and Functions of the 103AV Audio-Stereo / Video DA... -
Page 8: Connecting The 103Av 1:3 Audio-Stereo / Video Da
Your 103AV, 1:3 Audio-Stereo / Video Distributor 4.1 Connecting the 103AV 1:3 Audio-Stereo / Video DA To connect the 103AV 1:3 Audio-Stereo / Video DA, as the example in Figure 2 illustrates, do the following: 1. Connect a video and audio source (for example, a video player) to the VIDEO IN RCA and AUDIO IN mini connectors, respectively. -
Page 9: Technical Specifications
Your 103AV, 1:3 Audio-Stereo / Video Distributor 4.2 Technical Specifications Table 2 includes the technical specifications Table 2: Technical Specifications of the 103AV 1:3 Audio-Stereo / Video DA 1 composite video, 1Vpp/75 Ω on an RCA connector INPUT: 1 audio stereo, 1Vpp/33kΩ on 3.5mm mini connector 3 composite video, 1Vpp/75 Ω... -
Page 10: Your 104M, 1:4 Microphone Amplifier
Your 104M, 1:4 Microphone Amplifier Your 104M, 1:4 Microphone Amplifier The 104M is a high quality distribution amplifier for dynamic microphone signals. It accepts a microphone input and distributes the signal to four identical line-level outputs. The 104M: • Includes audio level (Gain) control •... -
Page 11: Connecting The 104M 1:4 Microphone Amplifier
4. If required, adjust the level trimmer Figure 4: Connecting the 104M 1:4 Microphone Amplifier 1 You do not have to connect all the outputs 2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 12: Technical Specifications
Your 104M, 1:4 Microphone Amplifier 5.2 Technical Specifications Table 4 includes the technical specifications Table 4: Technical Specifications of the 104M 1:4 Microphone Amplifier INPUT: One mono microphone 5mVpp/10k Ω on a 6.5mm phone connector OUTPUTS: 4 mono line level 1Vpp/150Ω on 6.5mm phone connectors MAX. -
Page 13: Your 105A, 1:5 Stereo Audio Da
Connects to the stereo/balanced mono audio source ON LED Illuminates when the machine is powered 12V DC +12V DC connector for powering the unit 1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: Connecting The 105A 1:5 Stereo Audio Da
Your 105A, 1:5 Stereo Audio DA 6.1 Connecting the 105A 1:5 Stereo Audio DA To connect the 105A 1:5 Stereo Audio DA, as the example in Figure 6 illustrates, do the following: 1. Connect a stereo/balanced mono audio source (for example, an audio player) to the INPUT mini connector. -
Page 15: Technical Specifications
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H WEIGHT: 0.28kg (0.62lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-3T 19" rack adapters 1 Specifications are subject to change without notice KRAMER: SIMPLE CREATIVE TECHNOLOGY... -

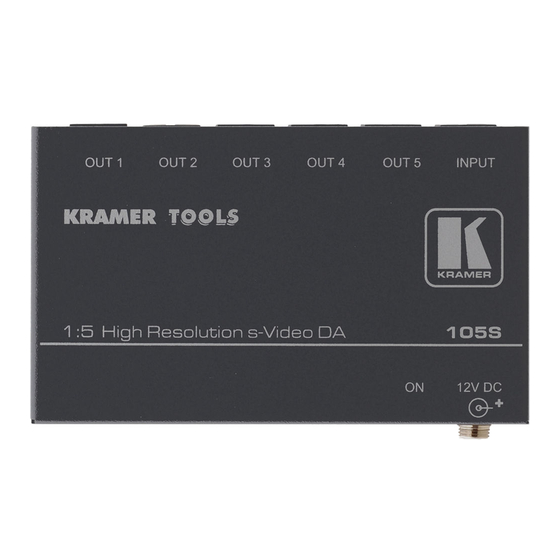

Page 16: Your 105S, 1:5 High Resolution S-Video Da
Your 105S, 1:5 High Resolution s-Video DA Your 105S, 1:5 High Resolution s-Video DA The 105S is a high performance s-Video (Y/C) distribution amplifier. It accepts one input, provides correct buffering and isolation, and distributes the signal to five identical outputs using 4-pin s-Video connectors. The 105S: •... -
Page 17: Connecting The 105S 1:5 High Resolution S-Video Da
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level 2 You do not have to connect all the outputs 3 Insert a screwdriver into the small hole and carefully rotate it to adjust the level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 18: Technical Specifications
Your 105S, 1:5 High Resolution s-Video DA Figure 9: Connecting the 105S 1:5 High Resolution s-Video DA 7.2 Technical Specifications Table 9 includes the technical specifications Table 9: Technical Specifications of the 105S 1:5 High Resolution s-Video DA INPUT: 1 s-Video: 1Vpp/75 Ω (Y), 0.3Vpp/75Ω (C), on a 4 -pin connector OUTPUTS: 5 s-Video: 1Vpp/75 Ω... -
Page 19: The 105V, 1:5 High Resolution Video Da
OUT 5 12V DC +12V DC connector for powering the unit ON LED Illuminates when the machine is powered 1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 20: Connecting The 105V 1:5 High Resolution Video Da
The 105V, 1:5 High Resolution Video DA 8.1 Connecting the 105V 1:5 High Resolution Video DA To connect your 105V 1:5 High Resolution Video DA, as illustrated in Figure 11, do the following: 1. Connect a composite video source (for example, a composite video player) to the VIDEO IN RCA connector. -
Page 21: Technical Specifications
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H WEIGHT: 0.28kg (0.62lbs) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-3T 19" rack adapter 1 Specifications are subject to change without notice KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 22: The 105Vb, 1:5 High Resolution Video Da
The 105VB, 1:5 High Resolution Video DA The 105VB, 1:5 High Resolution Video DA The 105VB is a high performance distribution amplifier for composite video signals. It accepts one input, provides correct buffering and isolation and distributes the signal to five identical outputs. In particular, the 105VB: •... -
Page 23: Connecting The 105Vb 1:5 High Resolution Video Da
1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level 2 You do not have to connect all the outputs 3 Insert a screwdriver into the small hole and carefully rotate it to adjust the level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 24: Technical Specifications
The 105VB, 1:5 High Resolution Video DA Figure 14: Connecting the 105VB 1:5 High Resolution Video DA 9.2 Technical Specifications Table 14 includes the technical specifications Table 14: Technical Specifications of the 105VB 1:5 High Resolution Video DA INPUT: 1 video, 1Vpp/75 Ω on a BNC connector. OUTPUTS: 5 video, 1Vpp/75 Ω... - Page 25 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
-
Page 26: Safety Warning
For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
