Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: 103AV, 1:3 Audio-Stereo / Video DA 104M, 1:4 Microphone Amplifier 105A, 1:5 Stereo Audio DA 105S, 1:5 High Resolution s-Video DA 105V, 1:5 High Resolution Video DA 105VB, 1:5 High Resolution Video DA... -
Page 2: Table Of Contents
Figure 10: Connecting the 105A 1:5 Stereo Audio DA Figure 11: Connecting the 105S 1:5 High Resolution s-Video DA Figure 12: Connecting the 105V 1:5 High Resolution Video DA Figure 13: Connecting the 105VB 1:5 High Resolution Video DA Contents... - Page 3 Table 3: Features and Functions of the 105A 1:5 Stereo Audio DA Table 4: Features and Functions of the 105S 1:5 High Resolution s-Video DA Table 5: Features and Functions of the 105V 1:5 High Resolution Video DA Table 6: Features and Functions of the 105VB 1:5 High Resolution Video DA...
-
Page 4: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... - Page 5 Video Player Composite Video Recorder 1 Getting Started Video Power Amplifier 4 Recorder 3 with Speakers s-Video Player Audio Recorder 5 Recorder 1 Composite Video Recorder 5 KRAMER: SIMPLE CREATIVE TECHNOLOGY Power Amplifier 1 with Speakers s-Video s-Video Recorder 1...
-
Page 6: Overview
105S, 1:5 High Resolution s-Video DA, which accepts one s-Video signal and distributes it to five identical outputs (see section 7) 105V, 1:5 High Resolution Video DA, which accepts one video input and distributes it to five identical outputs (see section 8) -
Page 7: Your 103Av, 1:3 Audio-Stereo / Video Distributor
Your 103AV, 1:3 Audio-Stereo / Video Distributor Your 103AV, 1:3 Audio-Stereo / Video Distributor The Kramer 103AV is a compact distribution amplifier for composite video and unbalanced stereo audio signals. It will take one input, provide correct buffering and isolation, and distribute the signal to three identical outputs. -
Page 8: Your 104M, 1:4 Microphone Amplifier
Your 104M, 1:4 Microphone Amplifier Your 104M, 1:4 Microphone Amplifier The Kramer 104M is a high quality distribution amplifier for dynamic microphone signals. It accepts a microphone input and distributes the signal to four identical line-level outputs. The 104M: Includes audio level (Gain) control... -
Page 9: Your 105A, 1:5 Stereo Audio Da
Your 105A, 1:5 Stereo Audio DA The Kramer 105A is a high performance distribution amplifier for unbalanced stereo audio signals using 3.5mm mini jacks. It accepts one stereo input and distributes the signal to five identical stereo outputs. The 105A:... -
Page 10: Your 105S, 1:5 High Resolution S-Video Da
Your 105S, 1:5 High Resolution s-Video DA Your 105S, 1:5 High Resolution s-Video DA The Kramer 105S is a high performance s-Video (Y/C) distribution amplifier. It accepts one input, provides correct buffering and isolation, and distributes the signal to five identical outputs using 4-pin s-Video connectors. -

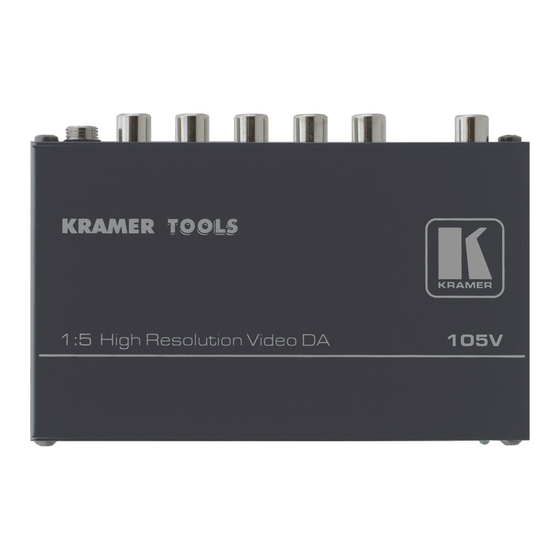

Page 11: The 105V, 1:5 High Resolution Video Da
Has video level (Gain) control Is 12V DC fed Figure 5 and Table 5 define the 105V 1:5 High Resolution Video DA Figure 5: 105V 1:5 High Resolution Video DA Table 5: Features and Functions of the 105V 1:5 High Resolution Video DA... -
Page 12: The 105Vb, 1:5 High Resolution Video Da
The 105VB, 1:5 High Resolution Video DA The 105VB, 1:5 High Resolution Video DA The Kramer 105VB is a high performance distribution amplifier for composite video signals. It accepts one input, provides correct buffering and isolation and distributes the signal to five identical outputs. -
Page 13: Figure 7: 105Vb 1:5 High Resolution Video Da Rear Panel
Table 7: Features and Functions of the 105VB Rear Panel Feature Function VIDEO LEVEL Trimmer Controls the gain of the video outputs 1 Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: 10 Connecting Your Kramer Tools
10 Connecting Your Kramer TOOLS This section describes how to connect your Kramer TOOL. To connect your Kramer TOOL, do the following: 1. Connect a source to the input. 2. Connect the outputs to the appropriate acceptors 3. Connect the 12V DC power adapter to the power socket, and connect the adapter to the mains electricity. -
Page 15: Connecting The 103Av 1:3 Audio-Stereo / Video Da
Connecting the 103AV 1:3 Audio-Stereo / Video DA Figure 8 illustrates how to connect the 103AV: Video Player Video Recorder 1 Figure 8: Connecting the 103AV 1:3 Audio-Stereo / Video DA Connecting Your Kramer TOOLS Video Recorder 3 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 16: Connecting The 104M 1:4 Microphone Amplifier
Connecting Your Kramer TOOLS 10.2 Connecting the 104M 1:4 Microphone Amplifier Figure 9 illustrates how to connect 104M: Power Amplifier 4 Power Amplifier 1 with Speakers with Speakers Figure 9: Connecting the 104M 1:4 Microphone Amplifier... -
Page 17: Connecting The 105A 1:5 Stereo Audio Da
10.3 Connecting the 105A 1:5 Stereo Audio DA Figure 10 illustrates how to connect 105A: Audio Player Audio Recorder 5 Figure 10: Connecting the 105A 1:5 Stereo Audio DA Connecting Your Kramer TOOLS KRAMER: SIMPLE CREATIVE TECHNOLOGY Audio Recorder 1... -
Page 18: Connecting The 105S 1:5 High Resolution S-Video Da
Connecting Your Kramer TOOLS 10.4 Connecting the 105S 1:5 High Resolution s-Video DA Figure 11 illustrates how to connect 105S: s-Video Player s-Video s-Video Recorder 5 Recorder 1 Figure 11: Connecting the 105S 1:5 High Resolution s-Video DA... -
Page 19: Connecting The 105V 1:5 High Resolution Video Da
Connecting the 105V 1:5 High Resolution Video DA Figure 12 illustrates how to connect 105V: Composite Video Player Composite Video Composite Video Recorder 1 Recorder 5 Figure 12: Connecting the 105V 1:5 High Resolution Video DA KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 20: Connecting The 105Vb 1:5 High Resolution Video Da
Connecting Your Kramer TOOLS 10.6 Connecting the 105VB 1:5 High Resolution Video DA Figure 13 illustrates how to connect 105VB: Composite Video Composite Video Composite Video Player Recorder 1 Recorder 5 Figure 13: Connecting the 105VB 1:5 High Resolution Video DA... -
Page 21: 11 Technical Specifications
105A, 1:5 Stereo Audio DA (Table 10) 105S, 1:5 High Resolution s-Video DA (see Table 11) 105V, 1:5 High Resolution Video DA (see Table 12) 105VB, 1:5 High Resolution Video DA (see Table 13) Table 8: Technical Specifications of the 103AV 1:3 Audio-Stereo / Video DA... -
Page 22: Table 9: Technical Specifications Of The 104M 1:4 Microphone Amplifier
Table 9: Technical Specifications of the 104M 1:4 Microphone Amplifier INPUT: 1 mono microphone 5mVpp/10k OUTPUTS: 4 mono line level 1Vpp/150 on 6.5mm phone connectors MAX. OUTPUT LEVEL: 4.8Vpp AUDIO BANDWIDTH (-3dB): 37kHz GAIN CONTROL: 5dB to 54dB S/N RATIO: 78dB THD @ 1KHz: 0.1%... -
Page 23: Table 12: Technical Specifications Of The 105V 1:5 High Resolution Video Da
Table 12: Technical Specifications of the 105V 1:5 High Resolution Video DA INPUT: OUTPUTS: MAX. VIDEO OUTPUT: VIDEO BANDWIDTH (-3dB): DIFF. GAIN: DIFF. PHASE: K-FACTOR: S/N RATIO: CONTROL: COUPLING: POWER SOURCE: DIMENSIONS: WEIGHT: ACCESSORIES: OPTIONS: Table 13: Technical Specifications of the 105VB 1:5 High Resolution Video DA... - Page 24 Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com.
- Page 25 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
