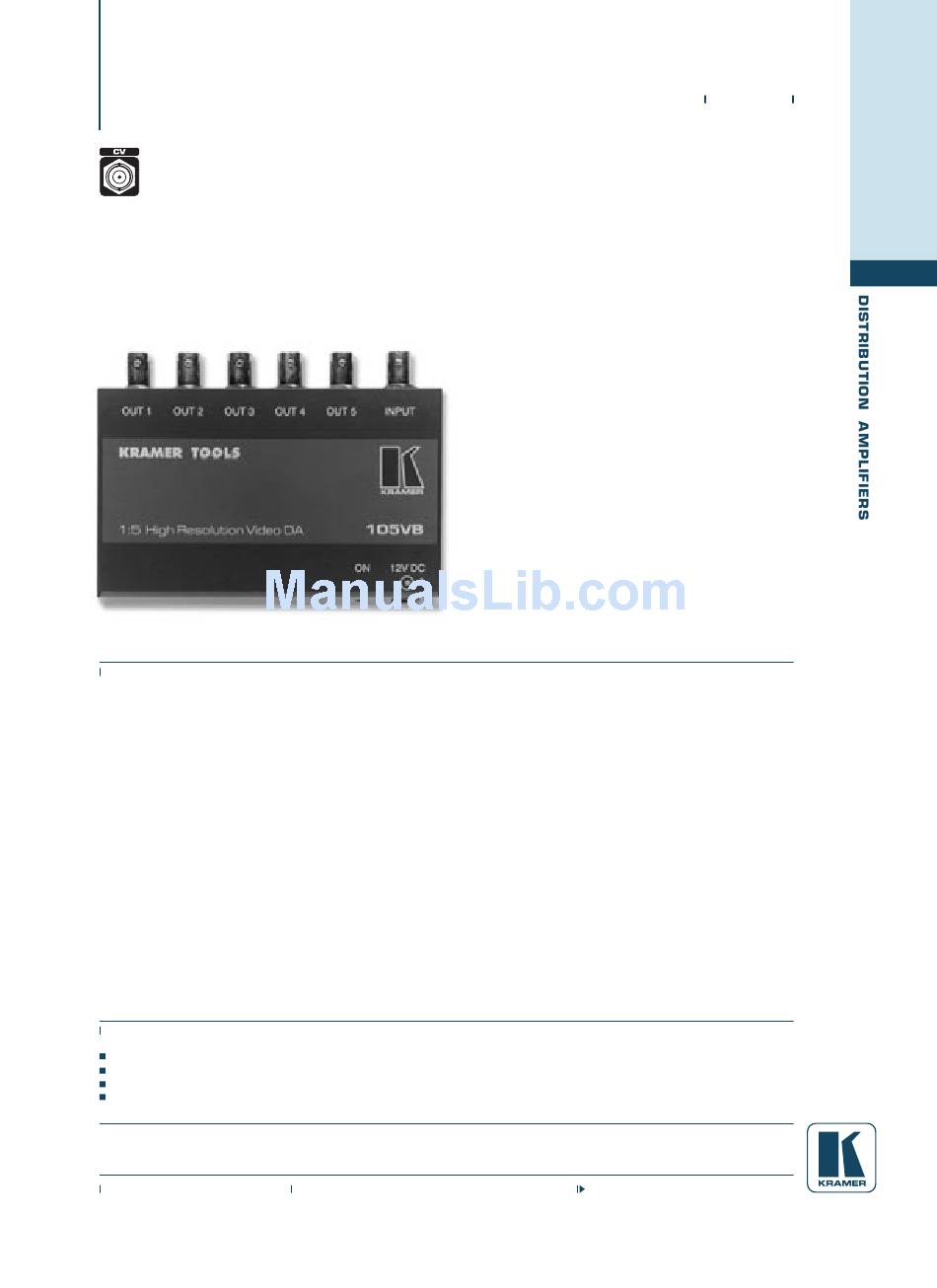

Kramer 105VB Technical Specifications

105VB
1:5 Video Distribution amplifier
The Kramer is a high performance 1:5 distribution amplifier for composite video signals. It accepts one
105VB
input and distributes it to five identical outputs using BNC connectors. Video bandwidth of 280MHz ensures that
the remains transparent even in the most critical applications. A 12V power supply is included, but the
105VB
optional VA-50P can power up to six Kramer devices requiring 12VDC. The
family of compact, high quality, and cost effective solutions for a variety of applications.
TECHNICAL SPECIFICATIONS
1 video, 1Vpp/75
INPUT:
5 video, 1Vpp/75
OUTPUTS:
280MHz - 3dB.
VIDEO BANDWIDTH:
AC.
COUPLING:
0.1%.
DIFF. GAIN:
0.1 Deg.
DIFF. PHASE:
80dB.
S/N RATIO:
Up to +6dB.
CONTROLS:
< 0.05%.
K-FACTOR:
2 Vpp.
MAX. VIDEO OUTPUT:
12 VDC, 100mA.
POWER SOURCE:
12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H.).
DIMENSIONS:
Power supply, mounting bracket.
ACCESSORIES:
Model VA-50P power supply with six 12VDC outlets.RK-T1, RK-T3 rack adapters
OPTIONS:

TYPICAL APPLICATIONS

Video duplication studios.
Any professional display system requiring an identical picture on several monitors.
CCTV and home theater use.
Rental and staging applications.
PRODUCTS CATALOG 2004
on a BNC connectors.
Ω
on BNC connectors.
Ω
KRAMER: SIMPLE CREATIVE TECHNOLOGY
GROUP 1
is part of the Kramer TOOLS
105VB
