Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: 101L Video Line Amplifier P/N: 2900-000160 Rev 2... -
Page 3: Table Of Contents
Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the 101L Video Line Amplifier Connecting the 101L Technical Specifications Figures Figure 1: 101L Video Line Amplifier Figure 2: Connecting the 101L Video Line Amplifier 101L – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 101L Video Line Amplifier, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 101L away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

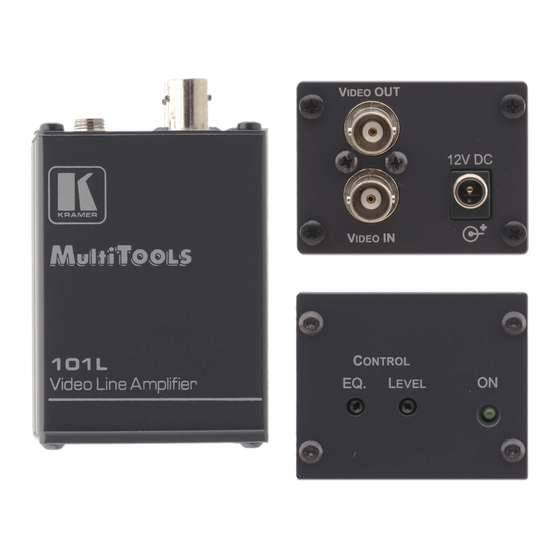

Overview The high performance 101L Video Line Amplifier is used for amplifying the video signal intensity and improving the image sharpness (the picture quality) when a video signal is transmitted over a long cable. In particular, the 101L features: ... -
Page 8: Connecting The 101L
1. Connect the video source (for example, a composite video camera) to the VIDEO IN BNC connector. It is recommended that you connect the 101L closer to the source than to the acceptor. 2. Connect the VIDEO OUT BNC connector to a video acceptor (for example, a composite display). -
Page 9: Technical Specifications
10% to 90%, RHL non-condensing DIMENSIONS: 5.32cm x 4.36cm x 7.25cm (2.09" x 1.72" x 2.85") W, D, H WEIGHT: 0.15kg (0.55lbs) approx. ACCESSORIES: Power supply OPTIONS: RK-1 19” rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com 101L - Technical Specifications... - Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
