Summary of Contents for Kramer 104LN
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: 104LN 1:4 Differential Video Line Amplifier... -
Page 2: Table Of Contents
Figure 4: 104LN 1:4 Differential Video Line Amplifier (Underside Panel) Figure 5: Connecting a 104LN 1:4 Differential Video Line Amplifier Tables Table 1: 104LN Component / UXGA HDMI Scaler Features Table 2: Technical Specifications of the 104LN 1:4 Differential Video Line Amplifier... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
Overview Overview The high performance 104LN is a distribution amplifier and a line driver for composite and SDI video signals. In particular, the 104LN 1:4 Differential Video Line Amplifier: Accepts a composite video input and provides 4 identical buffered outputs Includes recessed Gain and EQ. -
Page 6: Your 104Ln 1:4 Differential Video Line Amplifier

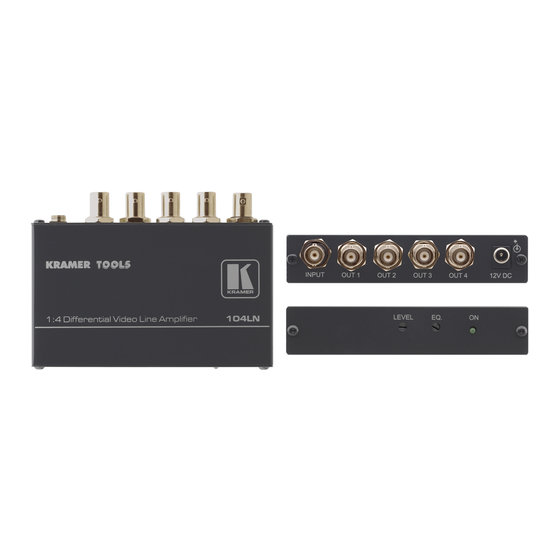

Your 104LN 1:4 Differential Video Line Amplifier Your 104LN 1:4 Differential Video Line Amplifier Figure 1, Figure 2, Figure 3 and Table 1 define the 104LN: Figure 1: 104LN 1:4 Differential Video Line Amplifier Figure 2: 104LN 1:4 Differential Video Line Amplifier (Top Side Panel) -
Page 7: Table 1: 104Ln Component / Uxga Hdmi Scaler Features
ON LED Illuminates when receiving power Figure 4 illustrates the INPUT GROUND switch: Figure 4: 104LN 1:4 Differential Video Line Amplifier (Underside Panel) By default, the INPUT GROUND switch is set to FLOAT . If the image appears noisy, set the switch to ON... -
Page 8: Connecting The 104Ln 1:4 Differential Video Line Amplifier
4. If the image appears noisy, set the INPUT GROUND to either ON or FLOAT to lower the noise level. 1 Switch OFF the power on each device before connecting it to your 104LN. After connecting your 104LN, switch on its power and then switch on the power on each device... - Page 9 Connecting the 104LN 1:4 Differential Video Line Amplifier Figure 5: Connecting a 104LN 1:4 Differential Video Line Amplifier...
-
Page 10: Technical Specifications
Technical Specifications Technical Specifications Table 2: Technical Specifications of the 104LN 1:4 Differential Video Line Amplifier INPUT: 1 video (CV IN), differential, 1Vpp / 75 , on a BNC type connector OUTPUTS: 4 video, 1Vpp / 75 on BNC type connectors MAX. - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
