Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: 101L Video Line Amplifier... -
Page 2: Table Of Contents
Connecting the 101L Video Line Amplifier Technical Specifications Figures Figure 1: 101L Video Line Amplifier Figure 2: Connecting the 101L Video Line Amplifier Tables Table 1: 101L Video Line Amplifier Features Table 2: Technical Specifications of the 101L Video Line Amplifier Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 As an option, you can purchase the Kramer VA-50P 6 Port Universal 12-Volt Power Supply, enabling you to supply power to up to 6 Kramer devices that require 12VDC 3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com... -
Page 4: Overview
The high performance 101L Video Line Amplifier is used for amplifying the video signal intensity and improving the image sharpness (the picture quality) when a video signal is transmitted over a long cable. In particular, the 101L: Comes with an extra wide bandwidth of 500MHz... -
Page 5: Your Video Line Amplifier

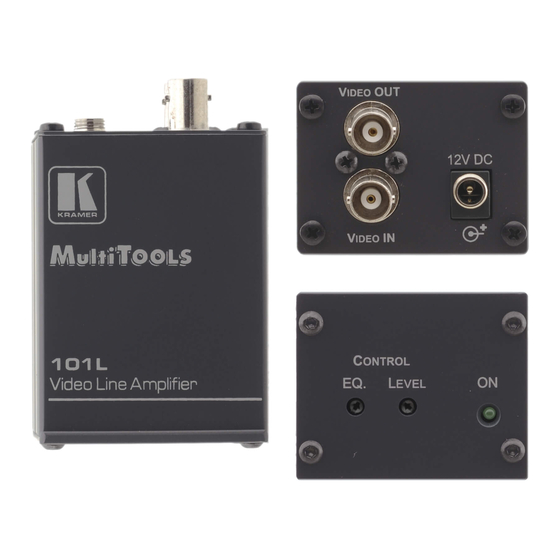

Your Video Line Amplifier Figure 1 and Table 1 define the 101L Video Line Amplifier: Figure 1: 101L Video Line Amplifier Table 1: 101L Video Line Amplifier Features Feature VIDEO OUT BNC Connector VIDEO IN BNC Connector 12V DC EQ. Trimmer... -
Page 6: Connecting The 101L Video Line Amplifier
4. If required, adjust the output signal level (LEVEL) and/or cable compensation equalization level (EQ.). Figure 2: Connecting the 101L Video Line Amplifier 1 It is recommended that you connect the 101L closer to the source than to the acceptor KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Technical Specifications
12V, 60mA (DC) DIMENSIONS: 5.32cm x 4.36cm x 7.25cm (2.09" x 1.72" x 2.85") W, D, H WEIGHT: 0.15kg. (0.55lbs.) approx. ACCESSORIES: Power supply 1 Specifications are subject to change without notice Technical Specifications of the 101L Video Line Amplifier... - Page 8 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 9 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
