Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: Mic Amplifier/DA P/N: 2900-000074 Rev 2... -
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the 106 Mic Amplifier/DA Connecting the 106 Technical Specifications Figures Figure 1: 106 Mic Amplifier/DA Figure 2: Connecting the 106 Mic Amplifier/DA 106 – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 106 Mic Amplifier/DA, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 106 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The 106 Mic Amplifier / DA is a high−quality distribution amplifier for balanced mono microphone signals. It takes one dynamic or condenser microphone input and distributes the signal to two high-level balanced mono line outputs, reaching 27Vpp (22dB). The 106 features: ... -
Page 8: Defining The 106 Mic Amplifier/Da

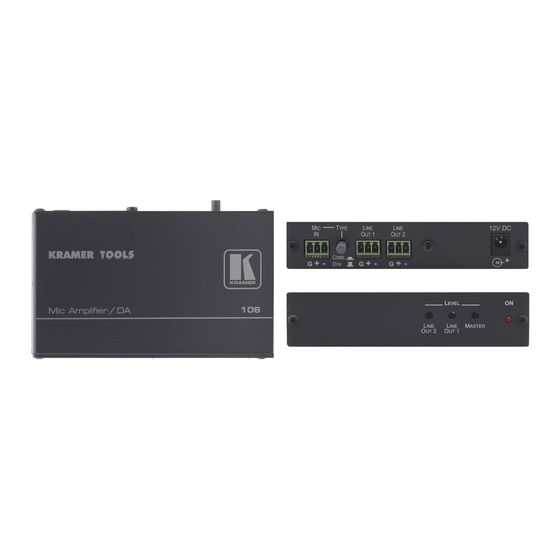

Defining the 106 Mic Amplifier/DA This section defines the 106. Figure 1: 106 Mic Amplifier/DA Feature Function LINE OUT 2 Trimmer Adjusts the LINE OUT 2 audio level Insert a screwdriver into the small hole and carefully rotate it to adjust the audio level LINE OUT 1 Trimmer Adjusts the LINE OUT 1 audio level MASTER Trimmer... -
Page 9: Connecting The 106
Connecting the 106 Always switch off the power to each device before connecting it to your 106. After connecting your 106, connect its power and then switch on the power to each device. To connect the 106 as illustrated in the example in Figure 1. -
Page 10: Technical Specifications
Technical Specifications INPUT: 1 microphone mono balanced on 3 pin terminal block connector OUTPUTS: 2 mono balanced line outputs on 3 pin terminal block connectors MAX. OUTPUT LEVEL: 27Vpp (22dBm) BANDWIDTH: >40kHz S/N RATIO: 81dB CONTROLS: Mic. Type selector pushbutton, -14dB to +68dB LINE OUT trimmers (MASTER trimmer at max.), +37dB to +68dB master (LINE OUT trimmer at max.) COUPLING:... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
