5. Connect the Serial Connector

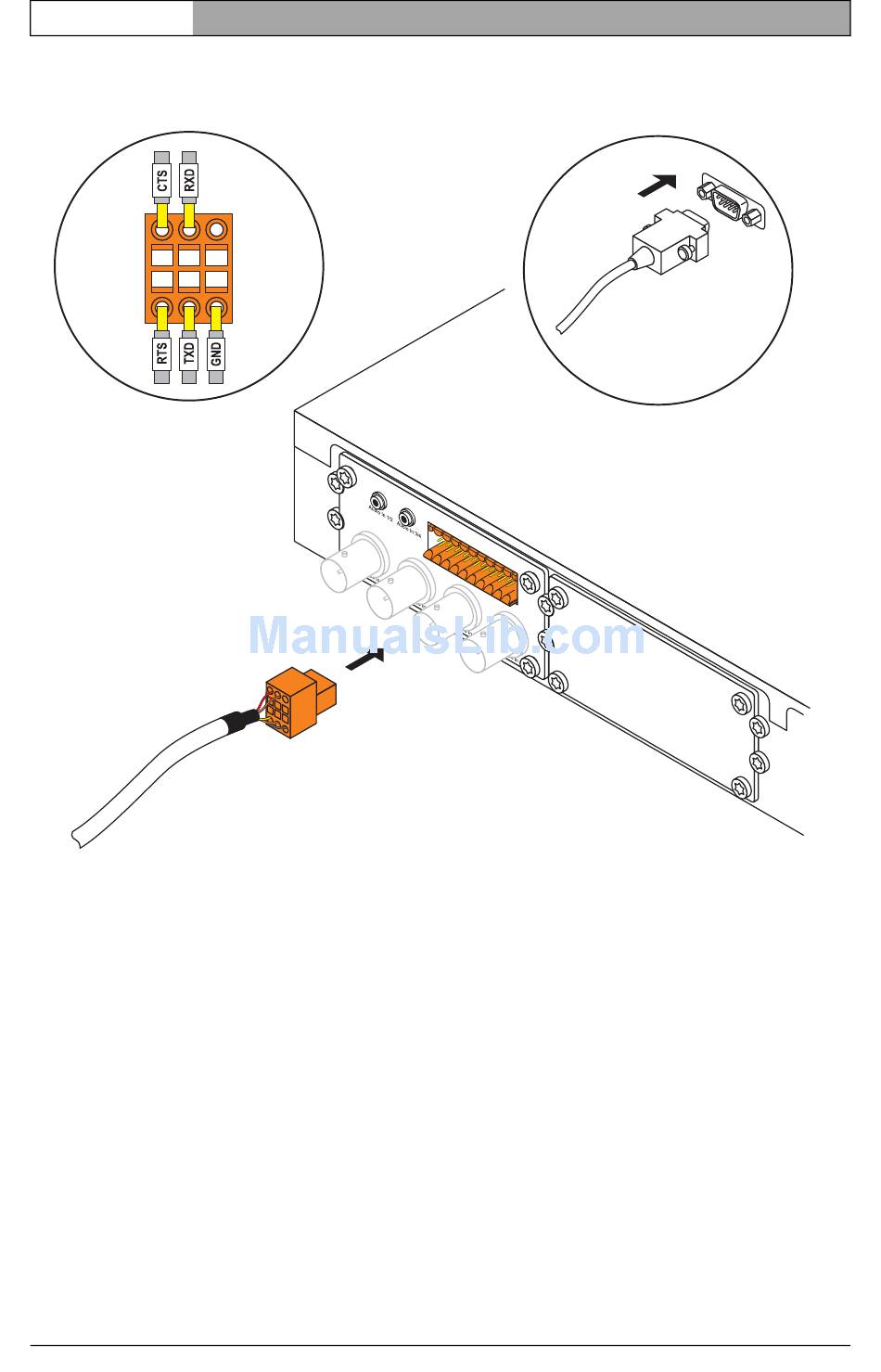

• Connect the leads of a serial connection to the respective terminals of the 6-pin terminal connec-
tor if necessary and connect the terminal connector to the right part of the connector strip at the
module.
Quick Installation Guide | VIP X1600 Module
Bosch Security Systems | 2006-08 | V2.0
