2. Mount the Modules

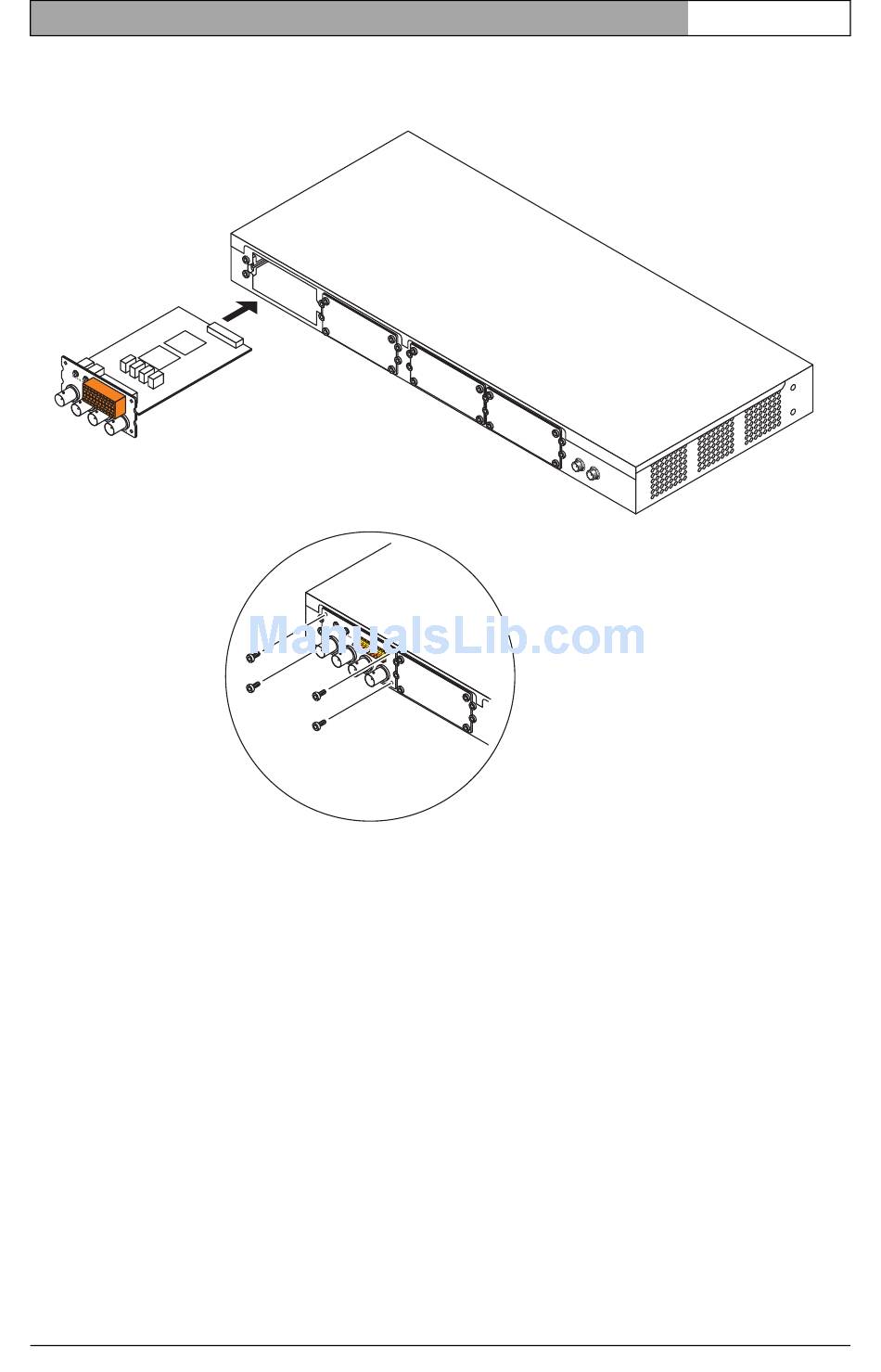

• Fit the first VIP X1600 module into the rails on the right and the left of the left-most slot and
slide the module right into the VIP X1600 base carefully.
• Fit in the four screws provided and tighten them.
• If the left-most slot is already equipped you can equip one of the other unused slots. To do so,
remove the respective cover plate first by unscrewing the four screws in the corners.
• After removing a VIP X1600 module the unused slot must be closed by means of a cover plate to
provide a proper air ventilation.
Note: Modules are hot swappable and can be mounted while the VIP X1600 base is powered. Take
special care when doing so!
