VIP X1600 Module | Quick Installation Guide

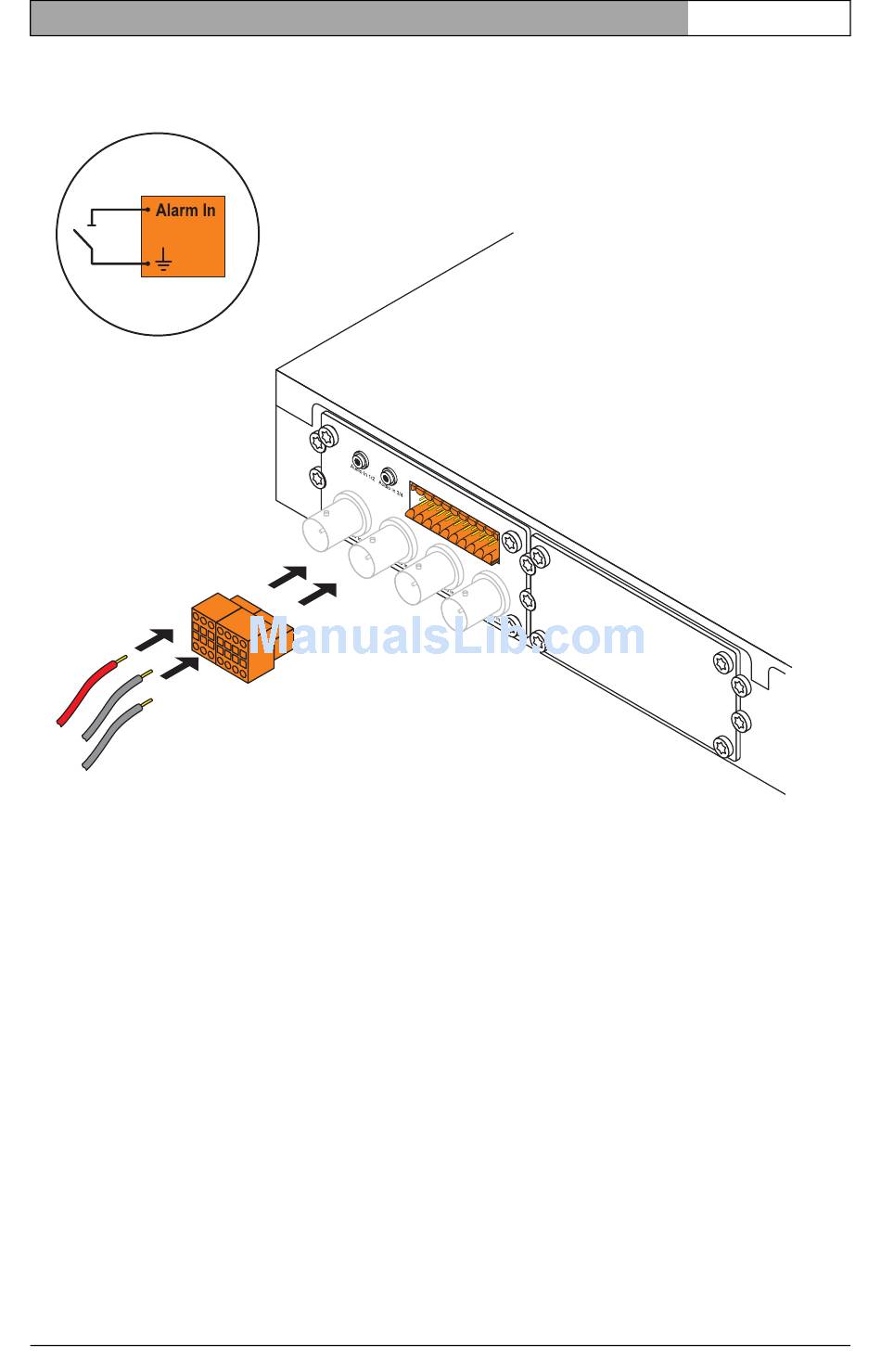

4. Connect the Alarm Switches and Relay Connections
• Connect the alarm switches to the In1 to In4 and GND terminals of the 6-pin terminal connector
and connect it to the left part of the connector strip at the module.
• Connect the relay connections to the R1 to R4 terminals of the 8-pin terminal connector and
connect the terminal connector to the middle part of the connector strip at the module.
Attention! Maximum load for the relay is 30 V, 800 mA.
Bosch Security Systems | 2006-08 | V2.0
EN | 7
