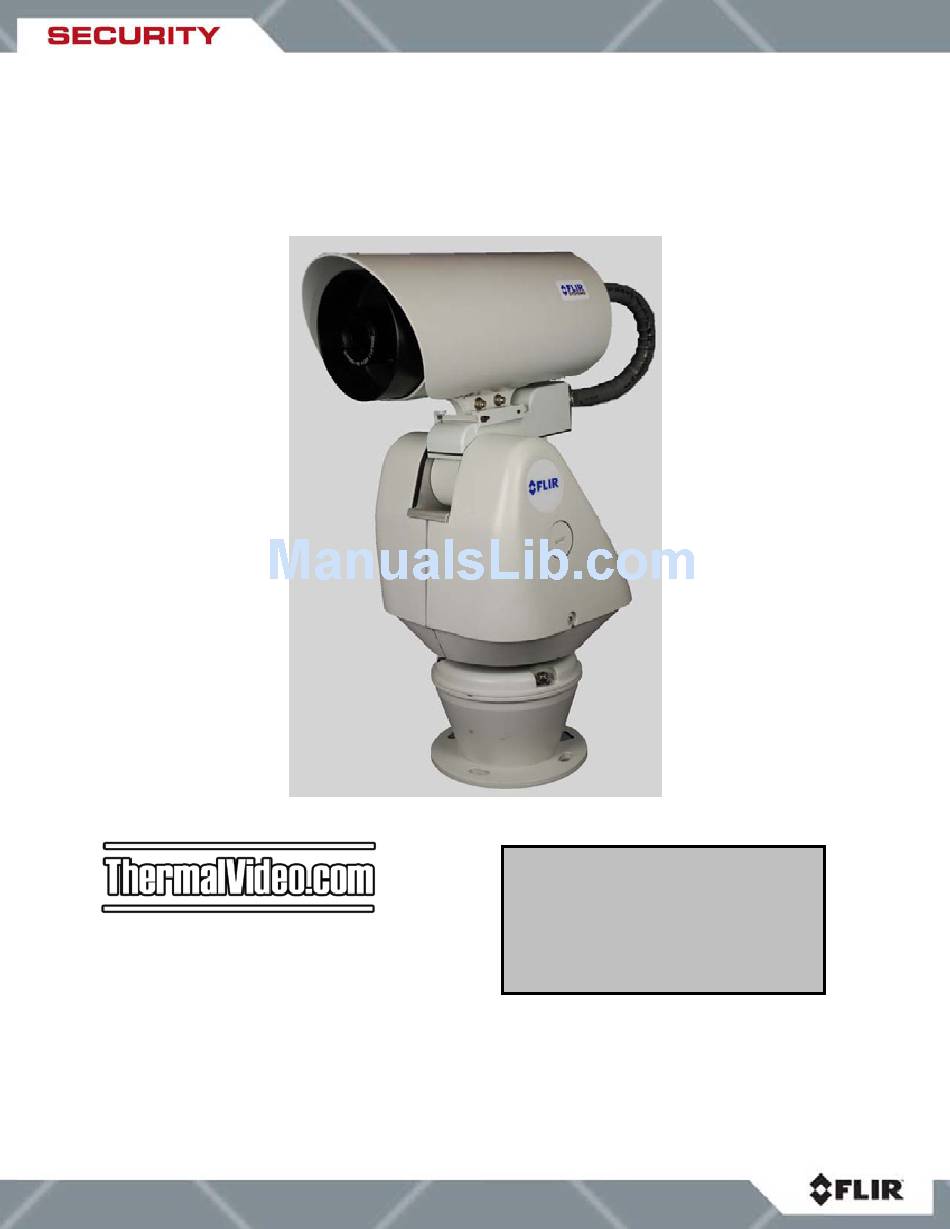

FLIR SR-100 PT Installation And Operation Manual
FLIR SR-100 PT Installation And Operation Manual

FLIR SR-100 PT Installation And Operation Manual

Sr-pt thermal camera

Advertisement

Quick Links

S
R
-
P
S
R
-
P
I
n
s
t
a
l
l
a
t
I
n
s
t
a
l
l
a
t
ThermalVideo.com
Your Source for Modern
Thermal Imaging Systems
P.O. BOX 4242
Middletown, NY 10941
427-0027-01-10 Rev. 100
T
T
h
e
r
m
T
T
h
e
r
i
o
n
a
n
d
O
i
o
n
a
n
d
O
PH: + 1 888 919 2263
PH Intl: + 1 845 343 4077
FX: + 1 845 343 4299
support@thermalvideo.com
w w w.thermalvideo.com
© 2009 FLIR Systems, Inc.
a
l
C
a
m
a
l
C
a
p
e
r
a
t
i
o
n
p
e
r
a
t
i
o
n
Camera Models
SR-100 PT
SR-35 PT
m
e
r
a
m
e
r
a
M
a
n
u
a
l
M
a
n
u
a
l
SR-50 PT
SR-19 PT
Page 1 of 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR-100 PT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FLIR SR-100 PT

  • Page 1 Camera Models SR-100 PT SR-50 PT ThermalVideo.com PH: + 1 888 919 2263 Your Source for Modern PH Intl: + 1 845 343 4077 SR-35 PT SR-19 PT Thermal Imaging Systems FX: + 1 845 343 4299 support@thermalvideo.com P.O. BOX 4242 Middletown, NY 10941 w w w.thermalvideo.com...
  • Page 2 ThermalVideo.com PH: + 1 888 919 2263 Your Source for Modern PH Intl: + 1 845 343 4077 Thermal Imaging Systems FX: + 1 845 343 4299 support@thermalvideo.com P.O. BOX 4242 Middletown, NY 10941 w w w.thermalvideo.com 427-0027-01-10 Rev. 100 Date: May 29, 2009 Revision Date...
  • Page 3: Table Of Contents

    Ground Connection........................7 Accessing the Electrical Connections ..................8 Power and Serial connections....................10 Cable Leads.........................10 Input Power..........................10 SR-100 PT Connections ......................11 SR-19, SR-35, SR-50 Connections ..................12 Assembly of Camera to Pan/Tilt base ..................13 Mounting the SR-PT Camera......................14 Camera Operation ........................17 IR Functions..........................17 Operational Temperatures ......................17...
  • Page 4: Warnings And Cautions

    WARNINGS AND CAUTIONS Warning! This guide uses the term Warning! to indicate a potentially hazardous situation, which, if not avoided, may result in bodily harm or injury, damage to the camera, or other property damage. Protect Your Investment The camera should be installed by a trained professional according to local codes and industry- standard safe practices.
  • Page 5: Introduction

    Introduction The SR-PT Thermal Camera you have purchased is a sophisticated thermal imaging camera that provides excellent night visibility and situational awareness, even in absolute darkness. The camera has a standard video output that works with digital video recording devices, video motion detection software or off-the-shelf video encoders.
  • Page 6: Camera

    Description The 7° horizontal field of view of the SR-100 provides long range surveillance SR-100 PT with high visual acuity of distant targets. The camera features a motorized lens for adjustable focus. Like all SR-PT cameras, the SR-100 provides crisp, clear thermal imagery in total darkness, light fog or smoke.
  • Page 7: Installation

    Installation The SR-PT Thermal Imaging camera is packaged in a separate box from the pan/tilt base. The wires from the base will need to be connected to the camera through an opening in the back of the camera and the camera will need to be installed on the top of the pan/tilt base. Then the connections to the assembled unit are made.
  • Page 8: Accessing The Electrical Connections

    Warning! The camera must be installed according to industry-standard practices and local electrical codes. Failure to properly connect the enclosure and the electrical interface board to ground could result in damage to the camera and possible bodily injury. Accessing the Electrical Connections Right cable gland Left cable...
  • Page 9 Remove the left cable gland completely Remove the sealing nut on the right cable gland Disconnect the ground cable temporarily Completely remove the left cable gland assembly (it will be replaced by the cable gland that is attached to the cable from the base). Apply Teflon tape to the threads of the cable gland that is on the cable.
  • Page 10: Power And Serial Connections

    Figure 4: Cable Gland Plug Installed Power and Serial connections The SR-PT camera provides electrical contacts in the form of screw-terminal jacks, allowing it to receive 16-24 AWG tinned leads from the power supply and serial communication interface. The SR-100 camera has a green terminal block, and the terminal block for the other SR-Series cameras is black;...
  • Page 11: Sr-100 Pt Connections

    Never use anything other than a fuse of proper rating. Warning! Failure to disconnect power to the camera while replacing a fuse could result in accidental injury or death. SR-100 PT Connections Figure 5: SR-100 Screw Terminal Connector Pin number Description Wire color...
  • Page 12: Sr-19, Sr-35, Sr-50 Connections

    SR-19, SR-35, SR-50 Connections The SR-19, SR-35, and SR-50 camera systems each have a fixed-focus lens (focused at hyperfocal distance at the factory) and the lens focus is not field adjustable. 1 2 3 4 5 6 7 Note: the pin numbers are not designated on the connector. Connector Used for Power or Wire color...
  • Page 13: Assembly Of Camera To Pan/Tilt Base

    Assembly of Camera to Pan/Tilt base The SR-PT camera attaches to the pan/tilt base by inserting the foot of the camera into the shoe at the top of the base. The camera is secured to the base with 4 set screws, two on each side of the shoe.
  • Page 14: Mounting The Sr-Pt Camera

    Mounting the SR-PT Camera When installing the SR-PT system, allow for sufficient clearance between the top of the unit and overhead obstructions. This will prevent interference when the enclosure is driven to its maximum elevation. Remove the transformer module from the base of the system by loosening the four Phillips crews and lifting the module.
  • Page 15 Route the wires and cables through the center of the base plate mount. Reinstall the transformer module into the base. The transformer module can be positioned in the mount base in only one orientation. Connect wires and cables. A. Connect to power. Use the two supplied clamp connectors to connect the AC line and neutral.
  • Page 16 Set the receiver address and system baud rate by configuring DIP switches SW1 and SW2. The factory default baud rate is 2400. To set the DIP switches: A. Remove the plug from the left cover of the pan and tilt. It is not necessary to remove the pan and tilt cover.
  • Page 17: Camera Operation

    Twist left = 1x zoom Black Hot/White Hot: Iris open = Black hot Iris close = White hot Focus (SR-100 PT only): Near = Focus Near Far = Focus Far Operational Temperatures Please note that the operating temperatures for the SR-PT Thermal Camera are -32 to 50 427-0027-01-10 Rev.
  • Page 18: Appendix

    APPENDIX 427-0027-01-10 Rev. 100 © 2009 FLIR Systems, Inc. Page 18 of 21...
  • Page 19 427-0027-01-10 Rev. 100 © 2009 FLIR Systems, Inc. Page 19 of 21...
  • Page 20 427-0027-01-10 Rev. 100 © 2009 FLIR Systems, Inc. Page 20 of 21...
  • Page 21 ThermalVideo.com Your Source for Modern Thermal Imaging Systems P.O. BOX 4242 Middletown, NY 10941 PH: + 1 888 919 2263 PH Intl: + 1 845 343 4077 FX: + 1 845 343 4299 support@thermalvideo.com w w w.thermalvideo.com 427-0027-01-10 Rev. 100 ©...

This manual is also suitable for:

Sr-50 ptSr-35 ptSr-19 pt
