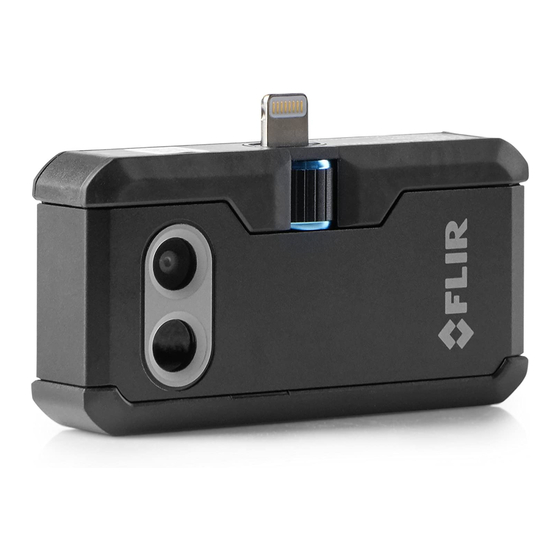

  • Page 1 User’s manual FLIR ONE series...
  • Page 3 User’s manual FLIR ONE series #T810375; r. AA/51295/51327; en-US...

  • Page 5: Table Of Contents

    6.3.4 Imaging Control ............. 10 Operation ..................12 Charging the battery ..............12 Turning the FLIR ONE camera on and off ........12 Connecting the FLIR ONE camera to your phone ......12 Saving an image ............... 12 7.4.1 General................ 12 7.4.2...
  • Page 6 Table of contents MSX Distance ................14 7.9.1 General................ 14 7.9.2 Change settings............. 14 7.10 Temperature Range..............14 7.10.1 General................ 14 7.10.2 Change settings............. 14 7.11 IR Scale.................. 14 7.11.1 General................ 14 7.11.2 Change settings............. 15 7.12 Lock Span................15 7.12.1 General................

  • Page 7: Disclaimers

    FLIR Systems will, at its option, repair or replace any such defective product free of charge if, upon inspection, it proves to be defective in material or work- 1.8 EULA Terms manship and provided that it is returned to FLIR Systems within the said one- year period. •...

  • Page 8: Eula Terms

    WITHOUT ANY WARRANTY; without even the implied warranty of MER- CHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Qt4 Core and Qt4 GUI, Copyright ©2013 Nokia Corporation and FLIR Sys- Lesser General Public License, http://www.gnu.org/licenses/lgpl-2.1.html. The tems AB. This Qt library is a free software; you can redistribute it and/or modify...

  • Page 9: Safety Information

    Safety information CAUTION The FLIR ONEcamera is not waterproof. CAUTION Be careful if you use the camera to observe very hot objects such as fire and molten metal. #T810375; r. AA/51295/51327; en-US...

  • Page 10: Notice To User

    3.5 Important note about this manual FLIR Systems issues generic manuals that cover several cameras within a model line. This means that this manual may contain descriptions and explanations that do not apply to your particular camera model.

  • Page 11: Note About Authoritative Versions

    Notice to user 3.6 Note about authoritative versions The authoritative version of this publication is English. In the event of divergences due to translation errors, the English text has precedence. Any late changes are first implemented in English. #T810375; r. AA/51295/51327; en-US...

  • Page 12: Customer Help

    • The communication protocol, or method, between the camera and your device (for ex- ample, SD card reader, HDMI, Ethernet, USB, or FireWire) • Device type (PC/Mac/iPhone/iPad/Android device, etc.) • Version of any programs from FLIR Systems • Full name, publication number, and revision number of the manual 4.3 Downloads...
  • Page 13 Customer help • Firmware updates for your infrared camera. • Program updates for your PC/Mac software. • Freeware and evaluation versions of PC/Mac software. • User documentation for current, obsolete, and historical products. • Mechanical drawings (in *.dxf and *.pdf format). •...

  • Page 14: Quick Start Guide

    2. Download and install the FLIR ONE app on your phone. The app is available on the Apple App Store and Google Play Store. 3. Push the On/off button on the bottom of the FLIR ONE camera to turn it on. The indica- tor will flash green when the FLIR ONE camera is ready.

  • Page 15: Description

    6.3 The FLIR ONE App 6.3.1 Installation The latest version of the FLIR ONE app is available on the Apple App Store for iOS devi- ces and the Google Play Store for Android devices. Download and install the app on your device.

  • Page 16: The Flir Cloud Account

    Description 6.3.2 The FLIR Cloud account The first time you start the FLIR ONE app, you will be asked to create a user account with your e-mail address and a password. A wizard will start that guides you through the registration.
  • Page 17 Description • Visible / MSX / Thermal (the current mode of the Live image view) • Palettes • MSX Distance • Temperature Range • IR Scale • Lock Span • Selfie Mode Click a setting in the list to see more information. #T810375;...

  • Page 18: Operation

    The indicator will flash green when the FLIR ONE camera is ready. • The camera automatically goes into sleep mode after 2 minutes of inactivity. • Push and hold the On/off button for more than 2 seconds to turn off the FLIR ONE camera.

  • Page 19: Procedure

    7.6 Recording a time-lapse video 7.6.1 General Use the Time-Lapse mode to save images according to a specified time interval. The im- ages are then combined into a video that is saved to the FLIR ONE Gallery. 7.6.2 Procedure Follow this procedure: 1.

  • Page 20: Palettes

    7.9 MSX Distance 7.9.1 General The FLIR ONE camera is tuned to align thermal and visual images for an object distance of 3 m. For images taken at a shorter distance, use the MSX Distance control slider to ad- just the alignment.
  • Page 21 Follow this procedure: 1. In the bottom bar, tap the Imaging Control. 2. Tap the Selfie Mode icon. 3. On the phone, change the position of the FLIR ONE camera so that it is facing you. 7.14 Measuring 7.14.1 General You can place a spot or an area on the screen that measures the surface temperature of any object in the scene.
  • Page 22 7.15 Torch 7.15.1 General FLIR MSX is a patented technology that makes use of the visible camera in the FLIR ONE to maximize detail and image sharpness. This feature requires some visible light, so in dark environments turn on your phone’s flashlight to enhance the image details. This fea- ture makes use of the light that is built into the phone.
  • Page 23 Turn this on to save a copy of your images and videos in the photo gallery of the phone. Images will always be stored in the FLIR ONE camera regardless of this setting. Items al- ready captured will not be copied.
  • Page 24 Cleaning the camera 8.1 Camera housing, cables, and other items 8.1.1 Liquids Use one of these liquids: • Warm water • A weak detergent solution 8.1.2 Equipment A soft cloth 8.1.3 Procedure Follow this procedure: 1. Soak the cloth in the liquid. 2.
  • Page 25 CE Declaration of conformity [See next page] #T810375; r. AA/51295/51327; en-US...
  • Page 28 Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Publ. No.: T810375...
