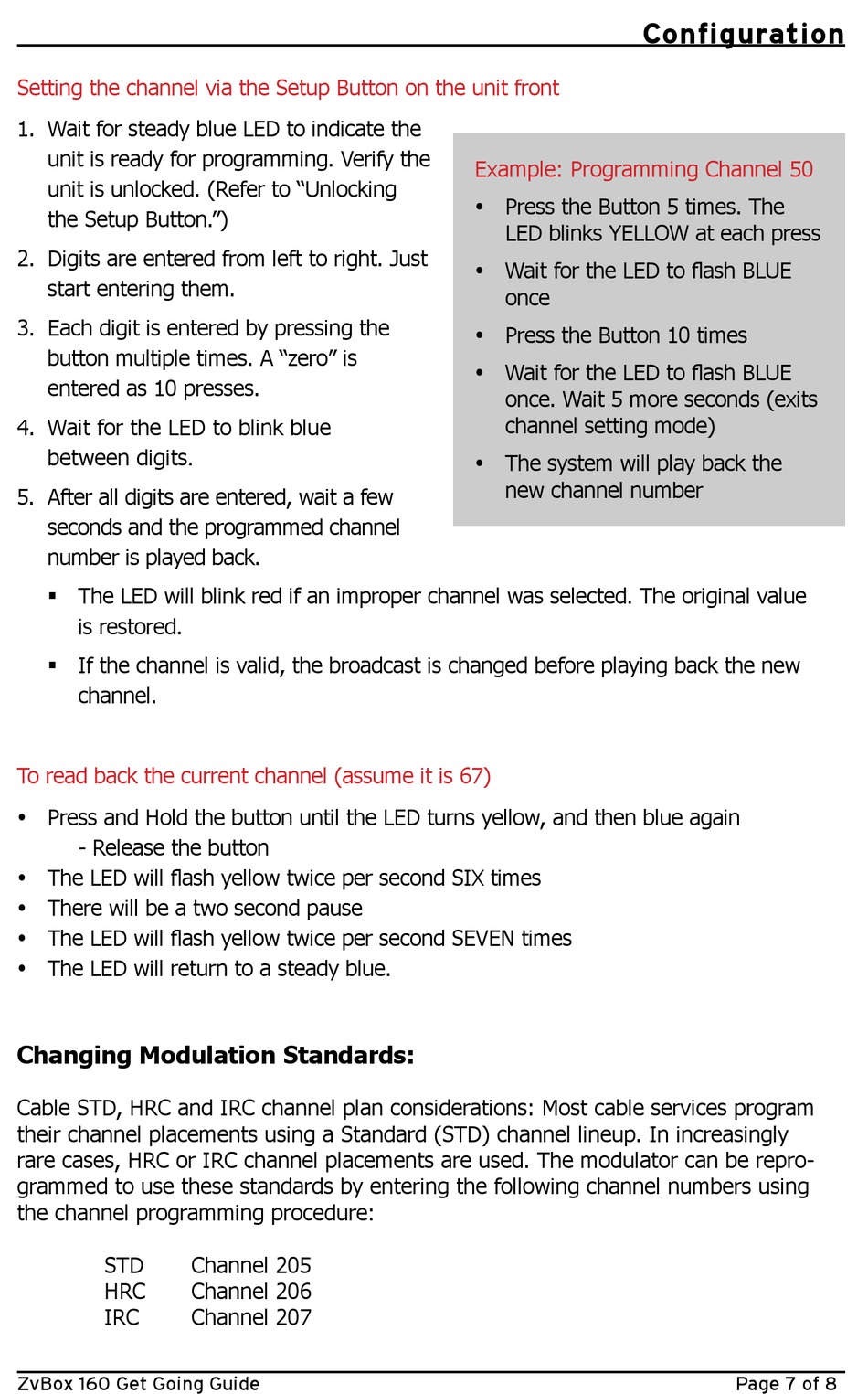

ZeeVee ZvBox 160 Get Going Manual page 7

Setting the channel via the Setup Button on the unit front
1. W ait for steady blue LED to indicate the
unit is ready for programming. Verify the
unit is unlocked. (Refer to "Unlocking
the Setup Button.")
2. D igits are entered from left to right. Just
start entering them.
3. Each digit is entered by pressing the
button multiple times. A "zero" is
entered as 10 presses.
4. W ait for the LED to blink blue
between digits.
5. After all digits are entered, wait a few
seconds and the programmed channel
number is played back.
 T he LED will blink red if an improper channel was selected. The original value
is restored.
 If the channel is valid, the broadcast is changed before playing back the new
channel.
To read back the current channel (assume it is 67)
 Press and Hold the button until the LED turns yellow, and then blue again
- Release the button
 The LED will flash yellow twice per second SIX times
 There will be a two second pause
 The LED will flash yellow twice per second SEVEN times
 The LED will return to a steady blue.
Changing Modulation Standards:
Cable STD, HRC and IRC channel plan considerations: Most cable services program
their channel placements using a Standard (STD) channel lineup. In increasingly
rare cases, HRC or IRC channel placements are used. The modulator can be repro-
grammed to use these standards by entering the following channel numbers using
the channel programming procedure:
STD
HRC
IRC
ZvBox 160 Get Going Guide
Channel 205
Channel 206
Channel 207
Example: Programming Channel 50
 Press the Button 5 times. The
LED blinks YELLOW at each press
 W ait for the LED to flash BLUE
once
 P ress the Button 10 times
 W ait for the LED to flash BLUE
once. Wait 5 more seconds (exits
channel setting mode)
 T he system will play back the
new channel number
