User Guide

S230A / SW230A
Wired Voice Carrier PA System
Thank you for choosing the S230A / SW230A Wired Voice Carrier PA System from AmpliVox Portable
Sound Systems.
We are excited in introducing this truly unique system. Our system combines flexibility with functionality.
Please refer to this user guide as you enjoy the unique capabilities of another quality product from Am-
pliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to register your product for its warranty coverage,
sign up to receive our newsletter, download our catalog, and learn more about the complete line of Am-
pliVox audio visual products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S230A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AmpliVox S230A

Summary of Contents for AmpliVox S230A

  • Page 1: User Guide

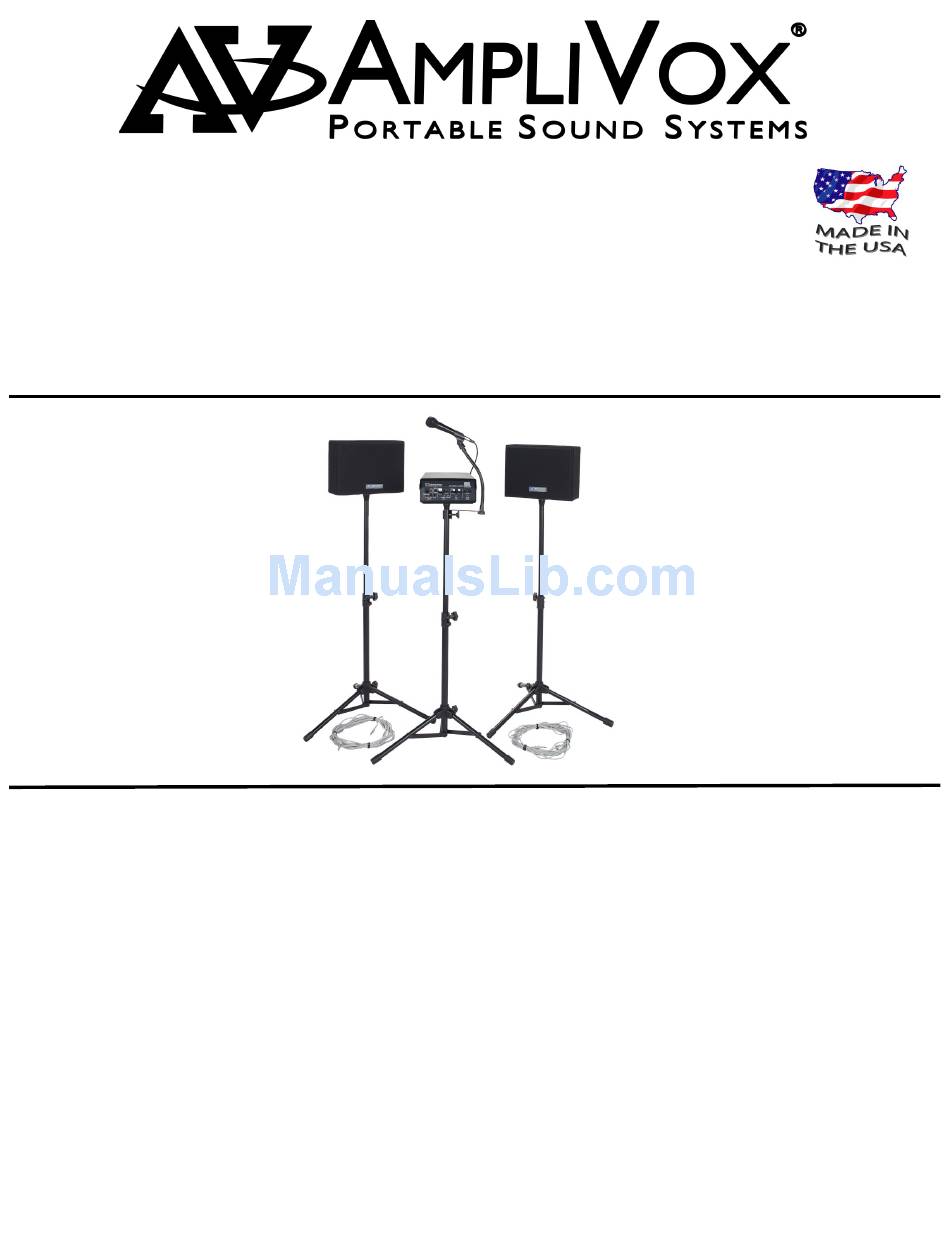

    S230A / SW230A Wired Voice Carrier PA System Thank you for choosing the S230A / SW230A Wired Voice Carrier PA System from AmpliVox Portable Sound Systems. We are excited in introducing this truly unique system. Our system combines flexibility with functionality.
